Pare chocs avant ARB Sahara bar MKII pour Dmax 2025+

SUMMIT SAHARA BAR MKII

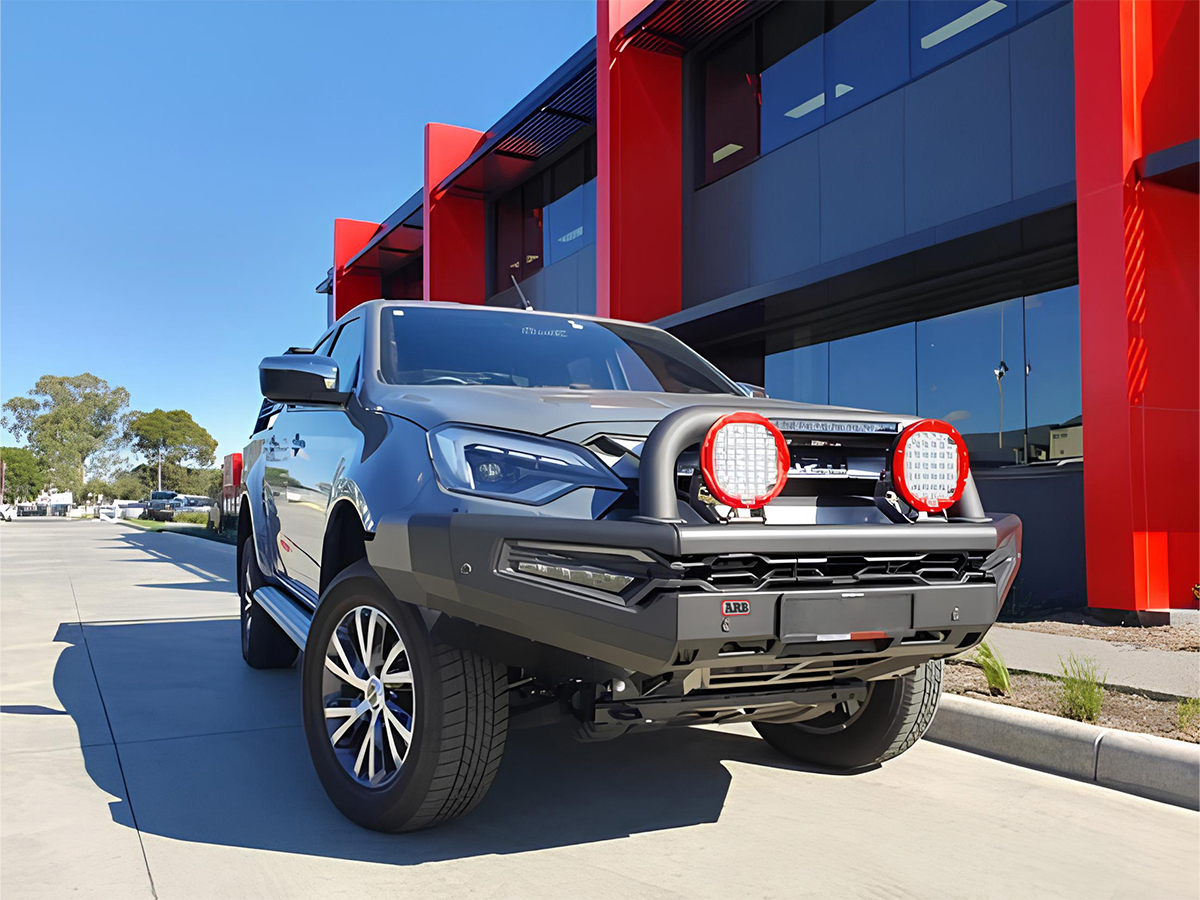

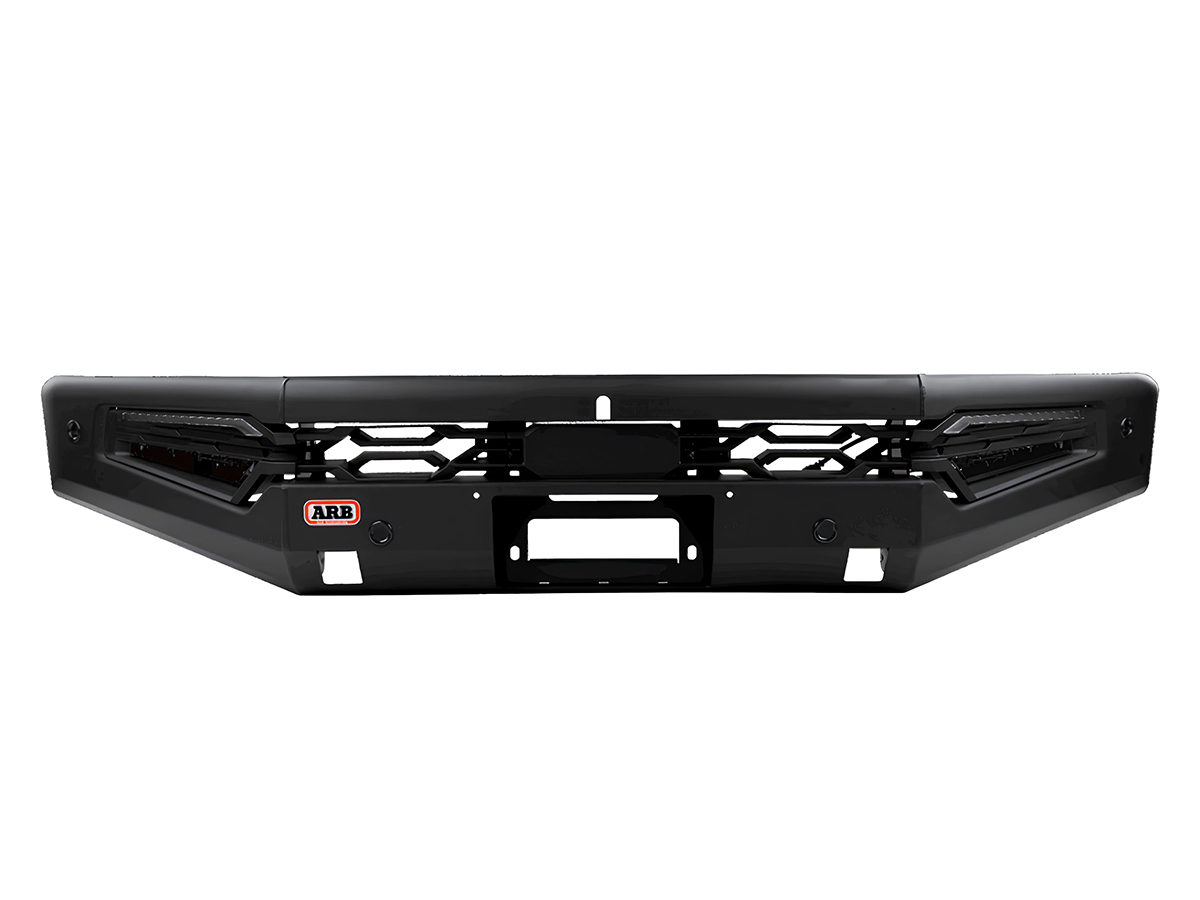

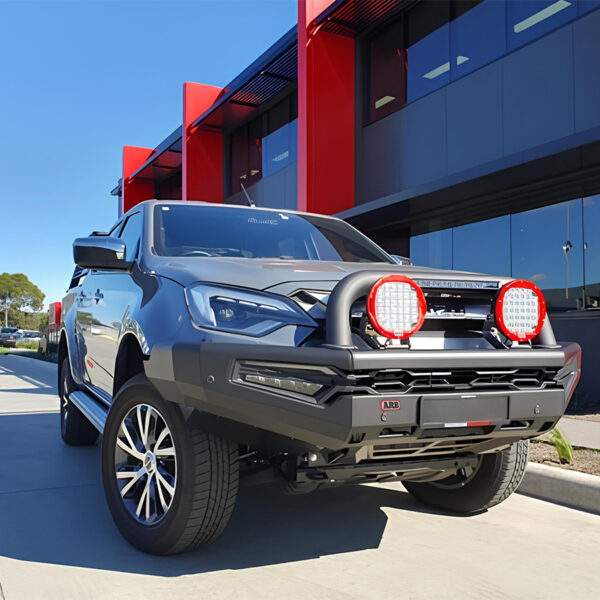

The ARB Summit Sahara MKII bar is now released for the MY24 Isuzu Dmax. Boasting many of the features of the Summit Bar MKII, the ARB Summit Sahara Bar MKII offers a sleek yet rigid styling without sacrificing practicality.  The Sahara rendition also features either a matt black alloy tube or a textured black tube kit with a LED light bar recessed into the top hoop, further underlining ARB’s commitment to fabrication excellence.
Summit MKII has eliminated front buffers and now has robot welds on the front face of the bar to highlight ARB’s excellence in sheet metal fabrication. Fog light design has been significantly updated to include a plug and play indicator / clearance light / Daytime Running Light and fog light within one complete unit for an integrated approach to incorporate these requirements on modern vehicles.

FEATURES:


• Vehicle specific design suitable for the MY25 Isuzu Dmax.
• Registered design of styling and design components.
• Durable steel construction for maximum protection.
• Incorporates ARB’s renowned multi fold upswept and tapered wing design for optimum strength and approach angle.
• 30mm radius on wings and centre section.
• Engineered, air bag compatible mounting system secures to the chassis via high tensile bolts.
• Split pan design for maximum strength and airflow.
• Extensive protection panels on centre and either side.
• Pressed form top pan and aluminium (powder coated matt black) winch cover panel.
• Optional matt black tube kit or textured powder tube kit with integrated 20?€? LED light bar (requires ARB loom PN 3500810)
• Optional Roller Fairlead Cover, Matt Black 3501070
• Compatible with ARB Recovery Point PN 2848030 and 2848040
• Twin ARB Jack or Hi-Lift jack points located in the lower pan
• Two aerial brackets located on the centre hoop.
• Will accommodate Warn, Bushranger, Smittybilt low mount model electric winches up to 10,000lb.
• Provision to accommodate ARB Intensity, ARB Intensity IQ and Solis LED’s and a range of Bushranger lights.
• Includes ARB LED Fog light, LED Daytime Running Light and LED indicators and clearance lights
• Compatible with original equipment safety features
• Bar adds approximately 184mm to the overall length of the vehicle.
• Approximate weight of the bar, chassis mounts and fitting kit is 62.6kg. Tube kit is approx 6.8kg with LED light, 3.7kg without.  Approximately 16kg is removed from the vehicle for fitment of the bar.
• Metaprep primer for additional corrosion resistance.
• Finished in matt black powder coat with the option to colour code to vehicle colour.

Aerials are not to be fitted to the Driver’s side of the bull bar due to potential interference with ADAS system.
