GUARD RAIL FRONT 3/4 1545X1285 SUITS 1770020

BASE RACK GUARD RAILS


ARB BASE Rack guard rails are available in four different configurations. The optional guard rails attach to
the perimeter dovetail extrusion and are easily removed or fitted when required.
Importantly no internal load space is sacrificed when fitting the guard rail options and other BASE Rack
accessories can still be fitted to the outer perimeter dovetail.

OPTIONS INCLUDE:

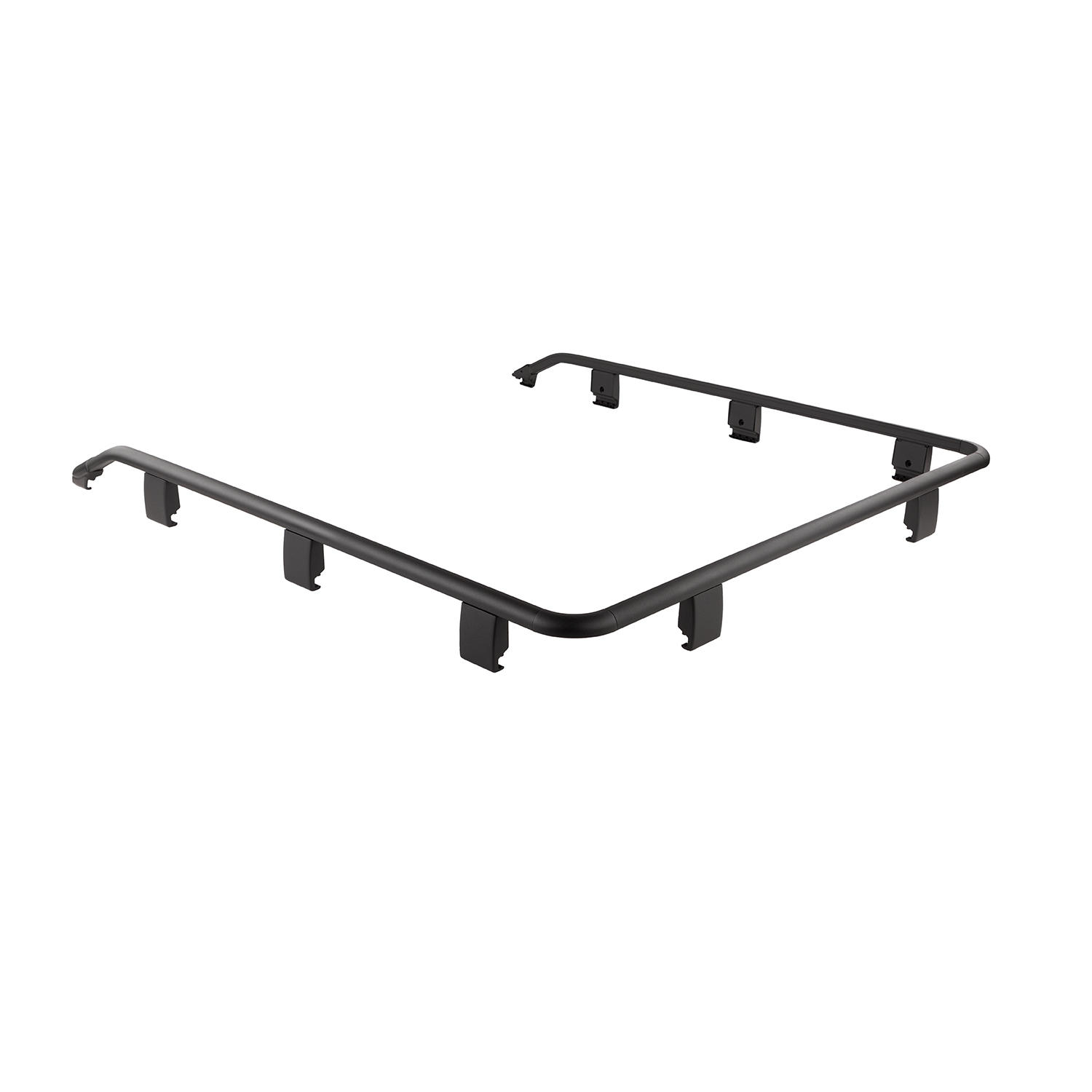

FULL RAILS

Designed for the tourer. The rails running around the perimeter of the rack act as a load block, helping to prevent larger items such as swags and tents from shifting when loading and unloading, as well as during transit.

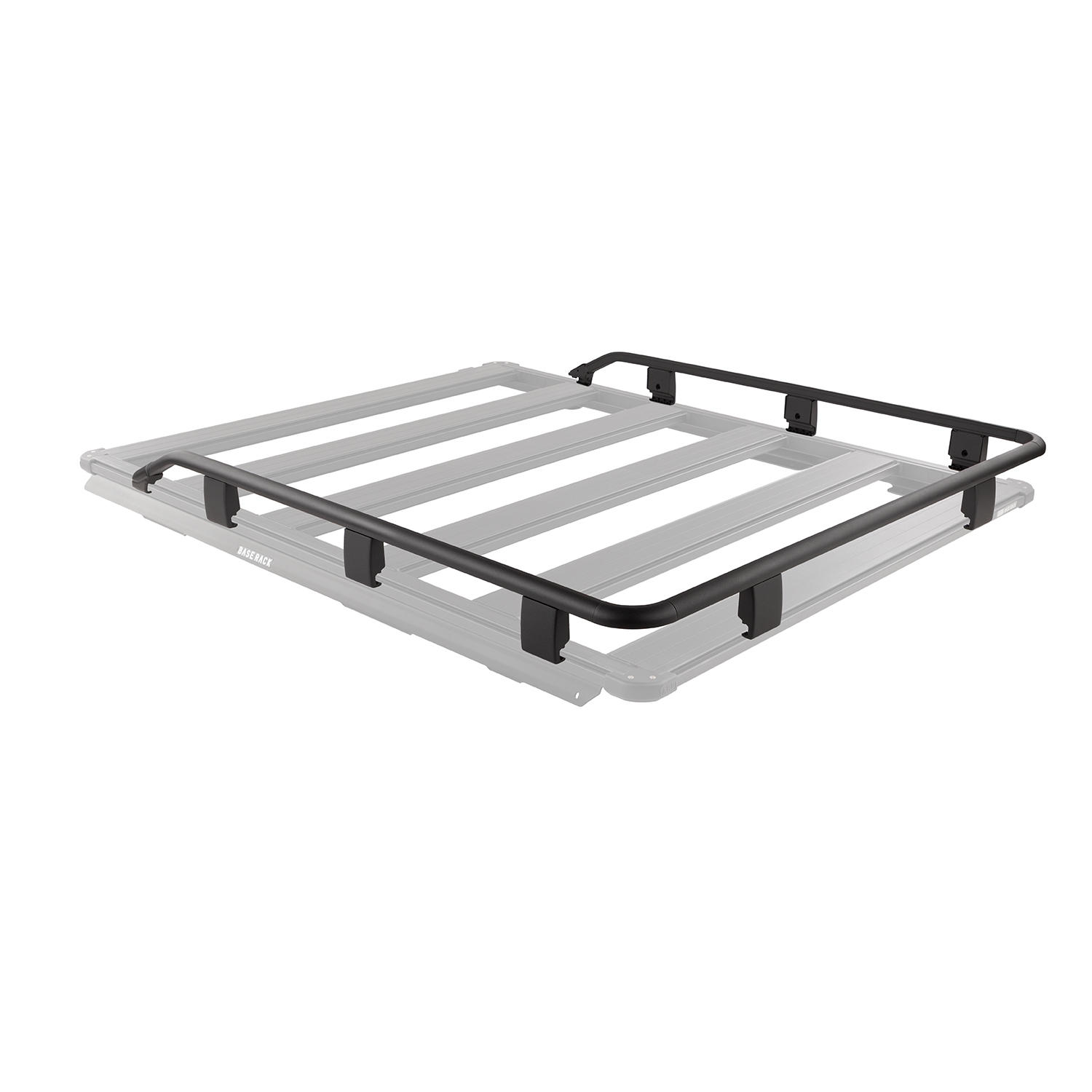

3/4 RAILS

A cross between full and trade rails, 3/4 rails, along with an optional roller kit, assist with easy rear loading of large and awkward items whilst still providing load security at the front of the rack. Also designed for rear folding rooftop tents, subject to tent width.

1/4 RAILS

Perfect for campers, this style of rail is great for rooftop tents whilst still providing ample storage and load security at the front of the rack.

TRADE RAILS

Great for loading long items such as timber and ladders with an optional roller kit to help glide long or awkward items onto the rack. The side rails prevent items from slipping or rolling off the rack during loading and allow you to fill the rack right tup to the edge.

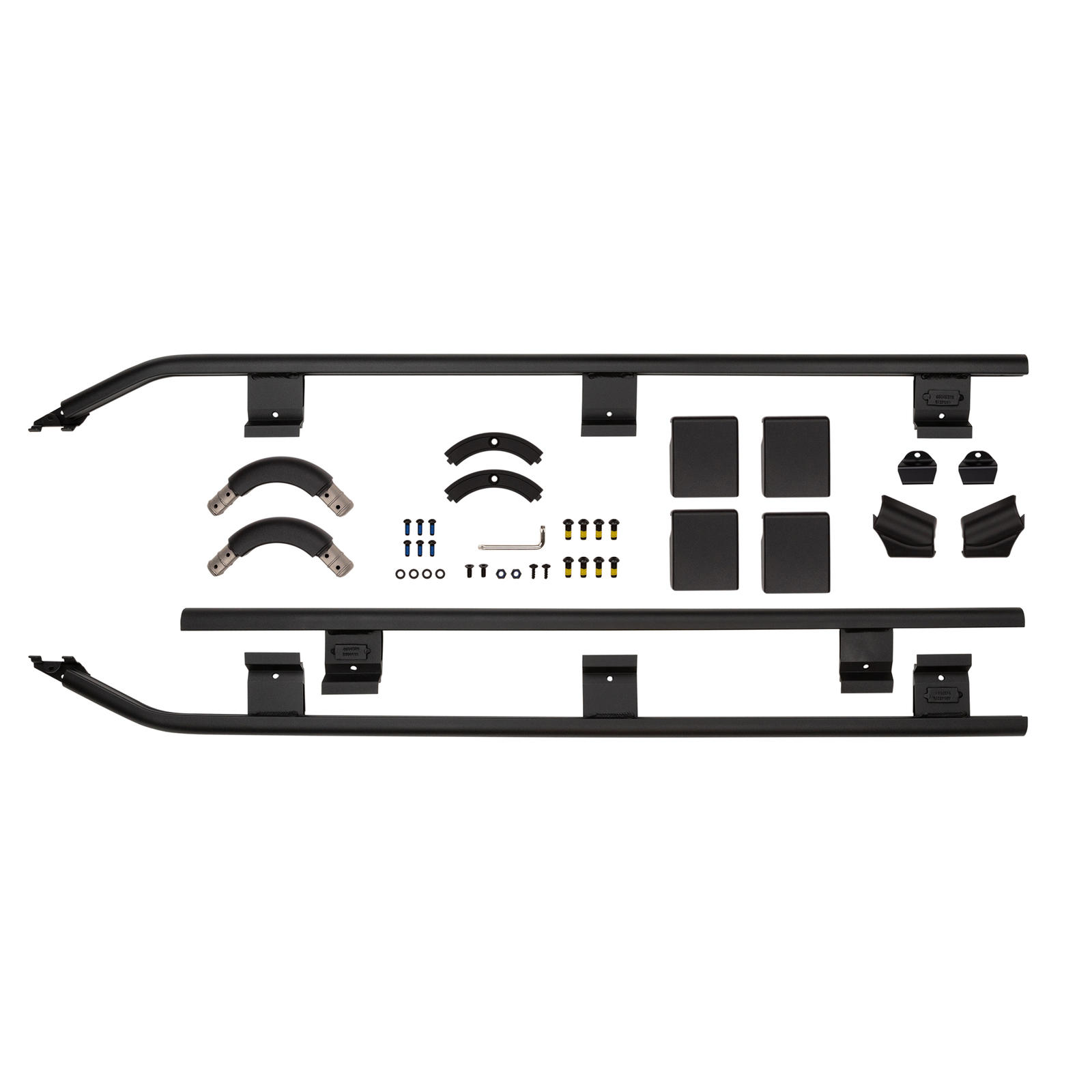

BASE Rack Guard Rail Key Features

 ? Guard Rail kit available as Full, Trade , 1?„4 or 3?„4 configurations.
? Cast aluminium corner caps attach to fully welded cross rail or side rail assembly.
? Cast aluminium corner caps.
? Cast aluminium upright clamps.
? Fastened to BASE Rack assembly with a combination of Torx M6, M8 and nyloc nuts.
? Cover cap included for 1?„4, 3?„4 and Trade style Guard Rail kits.
