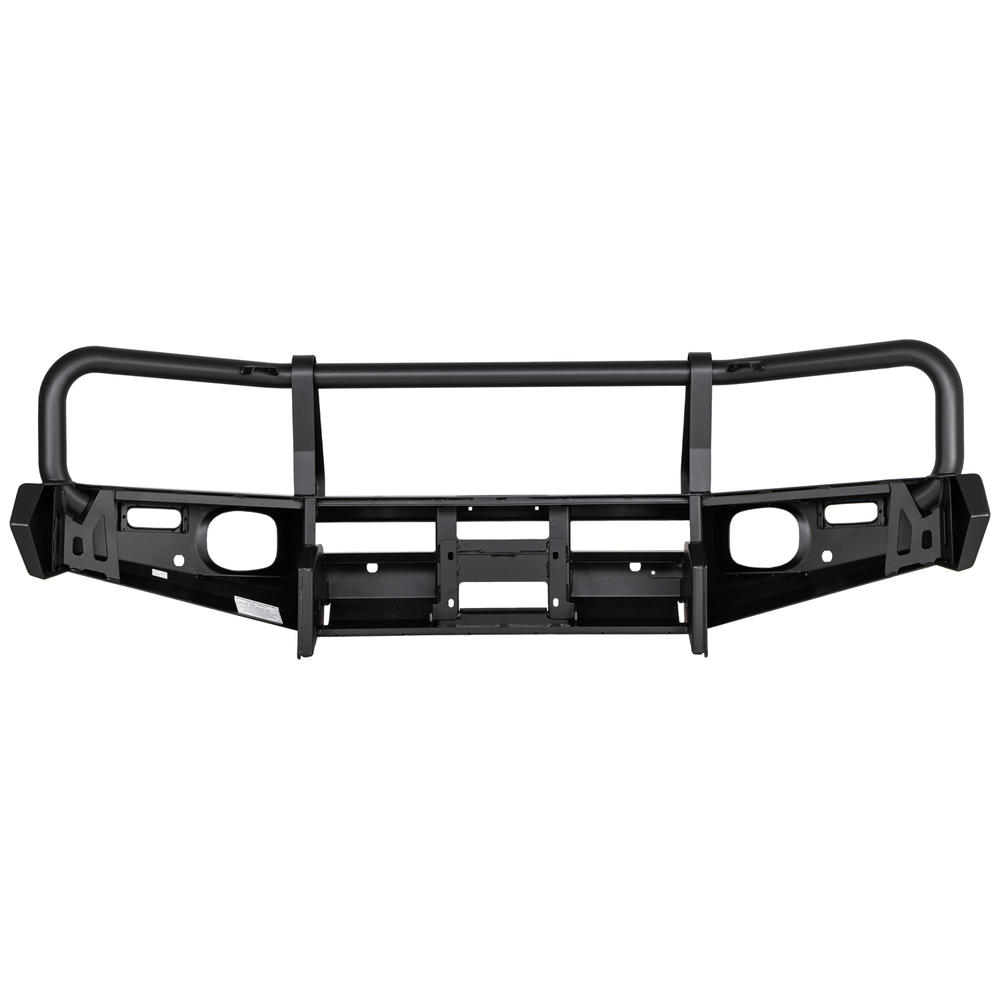

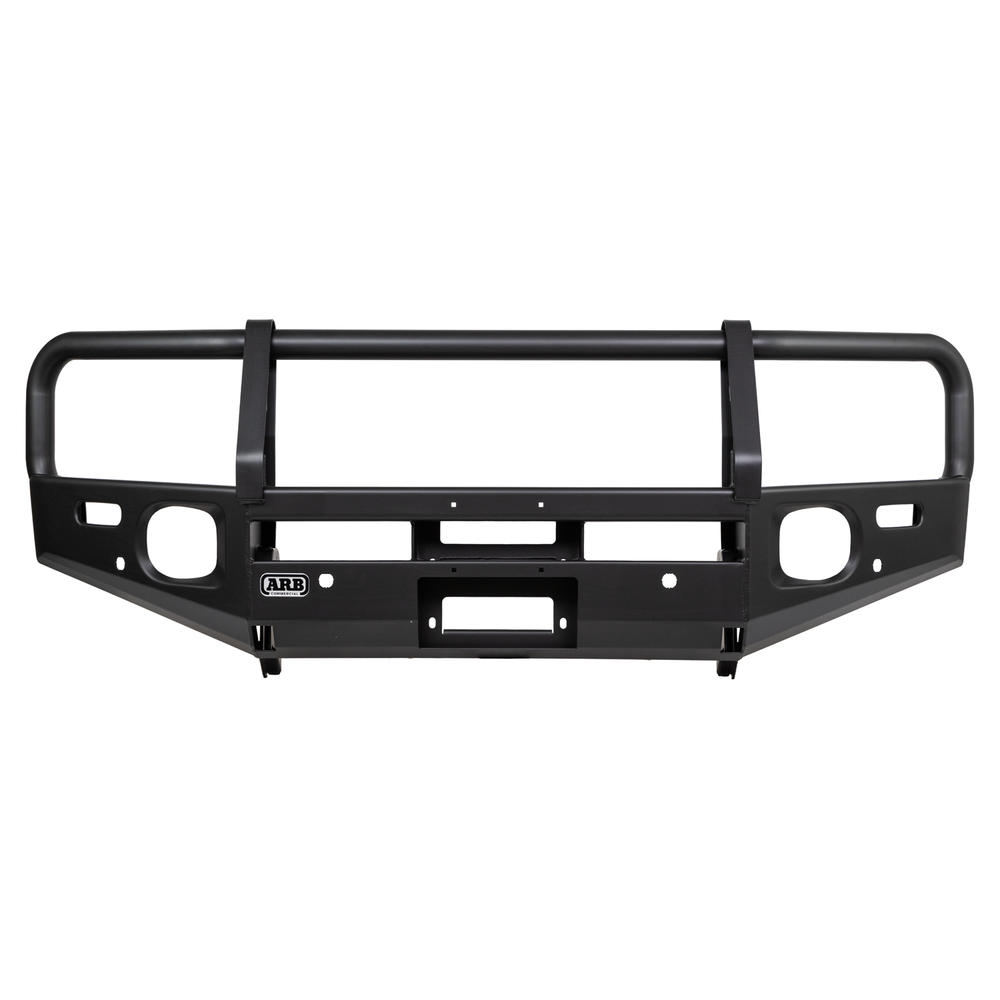

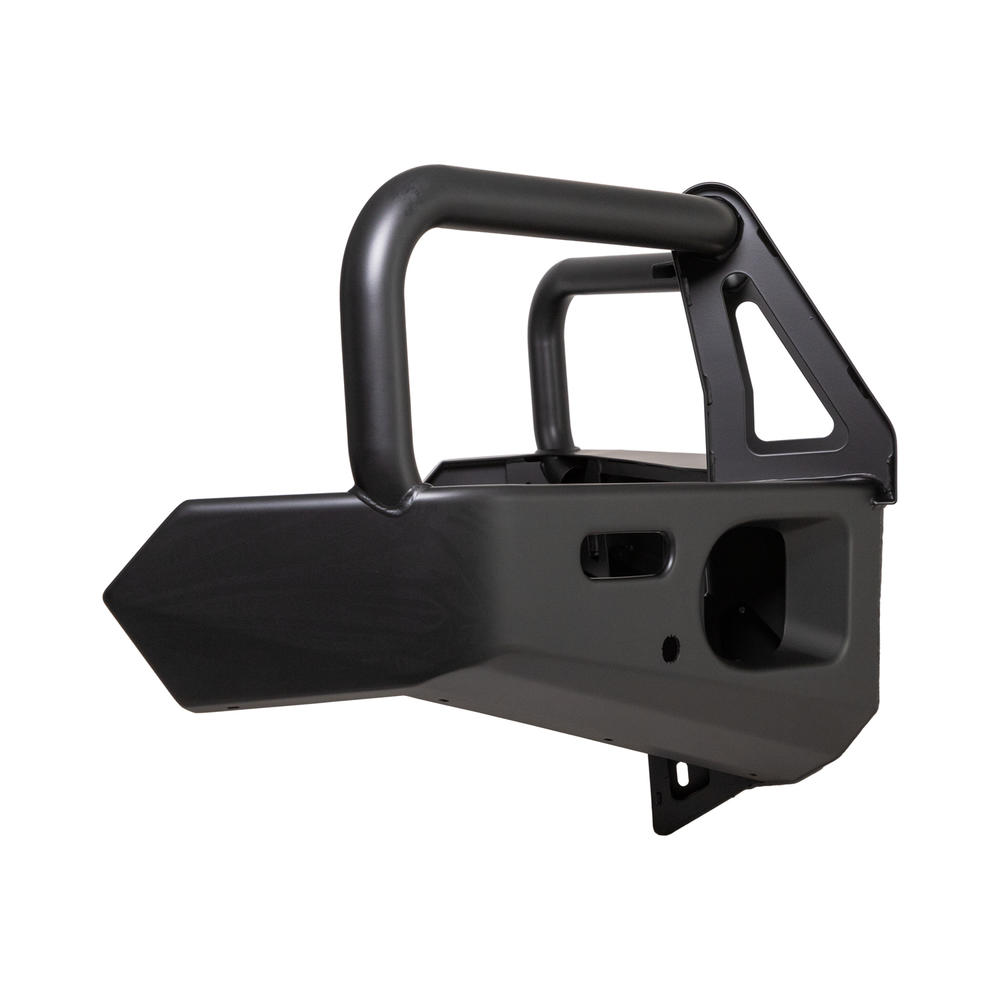

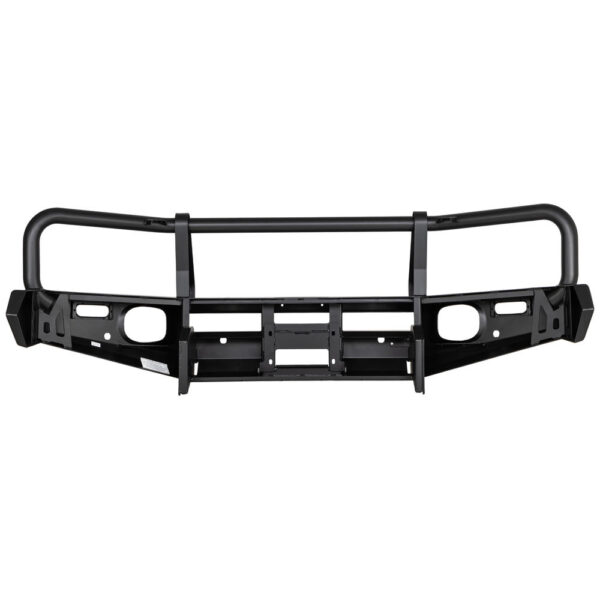

C/COMBAR 300 SER GX/GXL 8/21 ON MATT BLK

COMMERCIAL BAR

ARB’s engineers have designed and developed a new Commercial Bar to suit the Toyota LandCruiser 300 Series. Unlike previous Commercial bars this new bar takes some of its styling cues from the Summit Bar and uitilises a press form aperture as air ducts providing direct air flow through the wings to the intercoolers. The LC300 Commercial Bar suits both GX and GXL variants and has provision to reuse the OE fog lights in the underwing panel,and with blanking plates provided for variants without fog lights. Laser cut parking sensor provisions are provided in the lower pan and wings of the bar which suits vehicle variants with/without sensors and optional sensor packs.

FEATURES:

? Vehicle specific design for the Toyota LC300
? Suitable for GX and GXL Variants
? Air Duct design for direct air flow through wing section of bar
? Fog light provision in underwing panels for GXL variant, blanking plates provided for models without fog lights
? Durable steel construction for maximum protection
? 60.3mm outer tube and centre tube

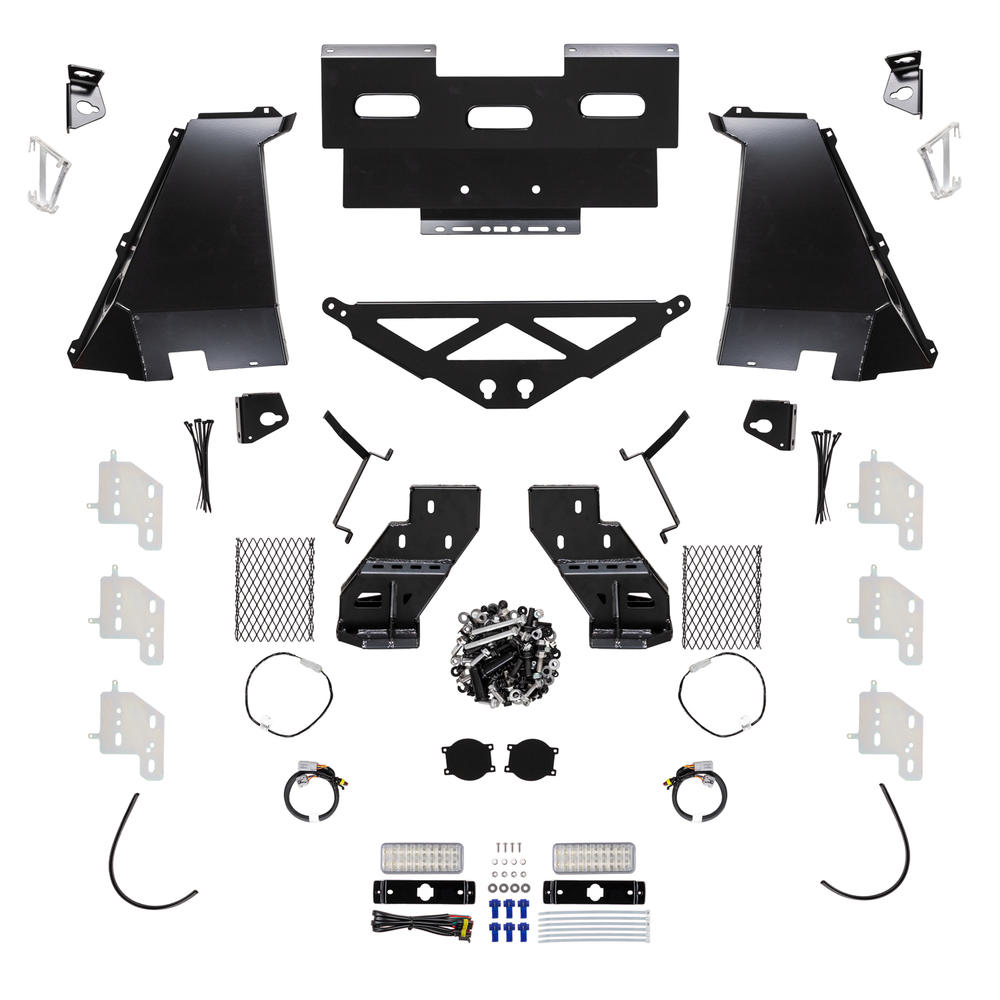

? Engineered, air bag compatible mounting system secures to the chassis via high tensile bolts
? Split pan design for maximum strength and airflow
? Extensive protection panels on centre and either side.
? Combination style bar to suit both winch and non-winch applications
? Twin ARB Jack or Hi-Lift jack points located in the lower pan
? Includes ARB LED Indicator and Clearance light
? Two aerial brackets located on the top of the outer tubes
? Winch control socket relocation kit (W90394) must be used, DO NOT fit control box on top pan
? Will accommodate Warn, Magnum, Bushranger, Smittybilt low mount model electric winches up to 12,000lb. Refer to Winch      Fitting matrix for winch fit kits
? Compatible with ARB recovery points, under vehicle protection (UVP), siderails and steps
? Provision for OE parking sensors. Sensor surrounds and Sensor plugs are provided with bar to cater for non sensor variants
? Provision to accommodate ARB Intensity LED’s and a range of Bushranger lights
? Bar adds approximately 187mm to the overall length of the vehicle
? Approximate weight of the bar, chassis mounts and fitting kit is 95kg Approximately 15kg is removed from the vehicle for fitment
? Zinc rich primer for additional corrosion resistance
? Finished in matt black powder coat with the option to colour code to vehicle colour
