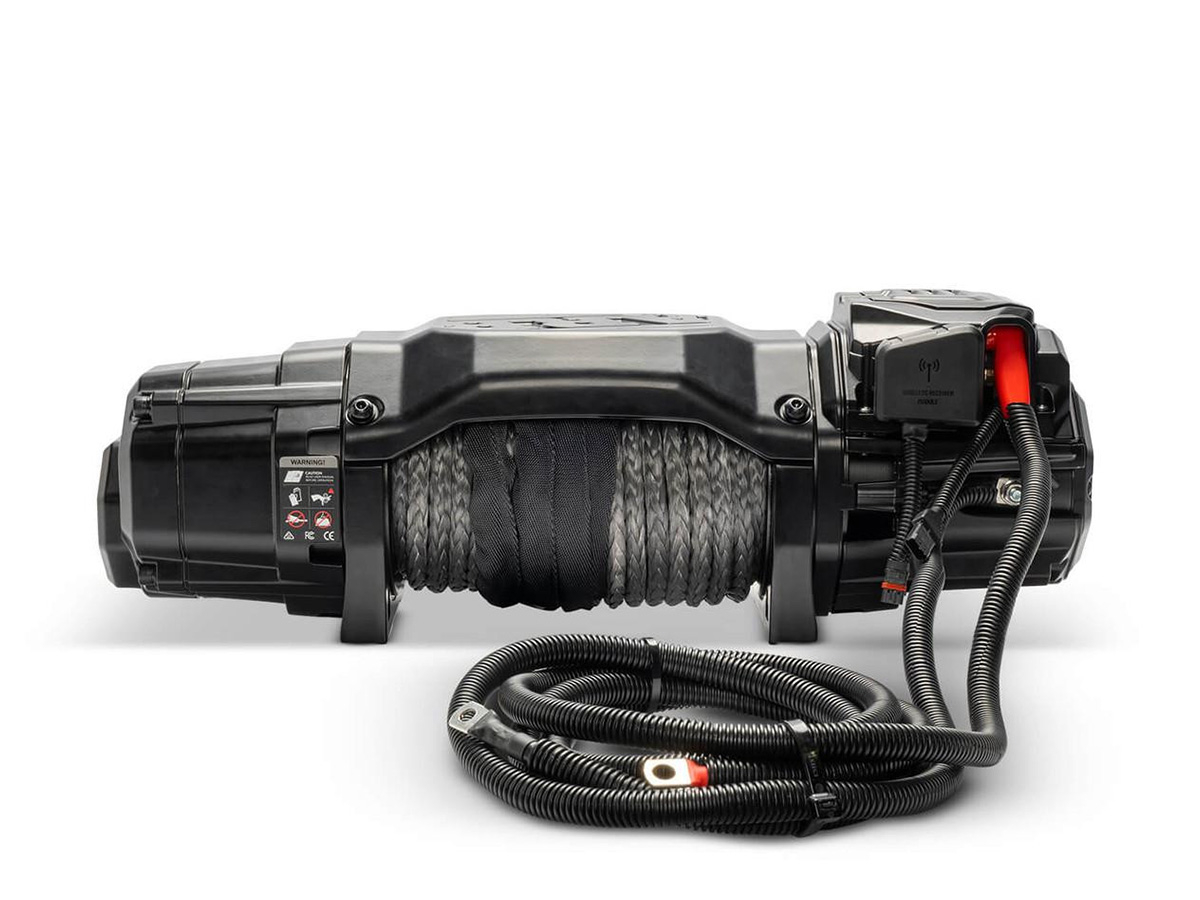

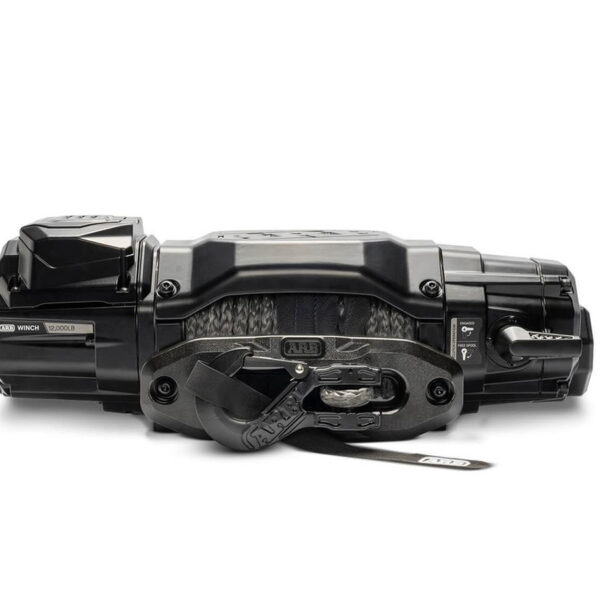

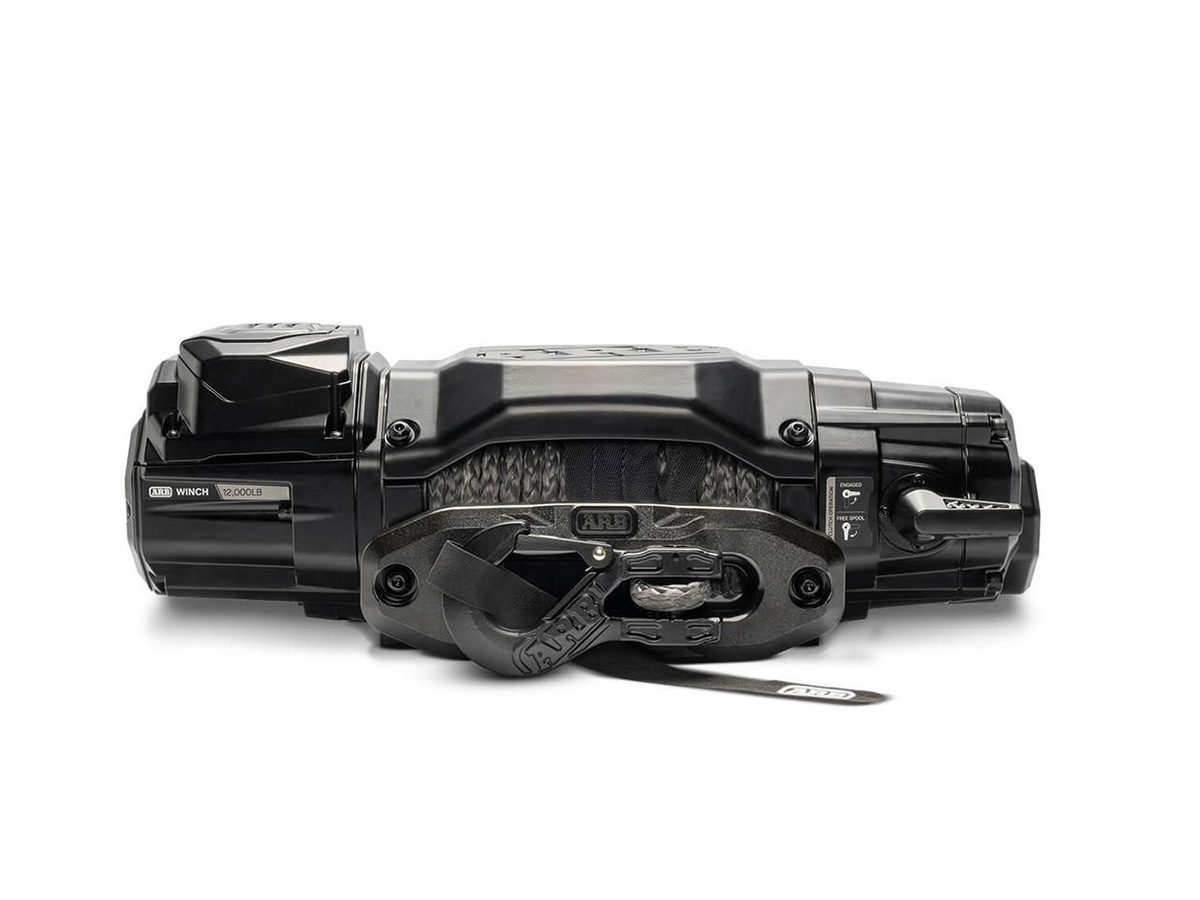

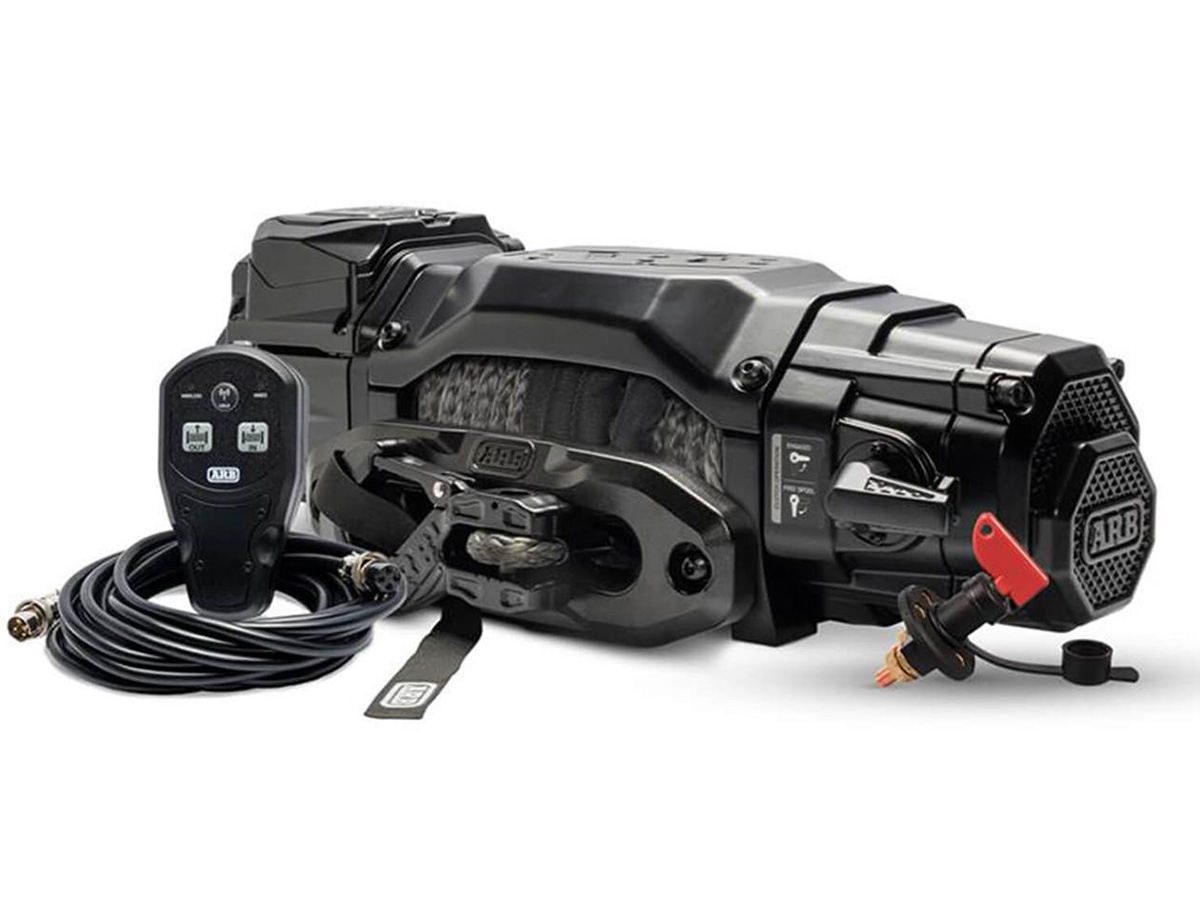

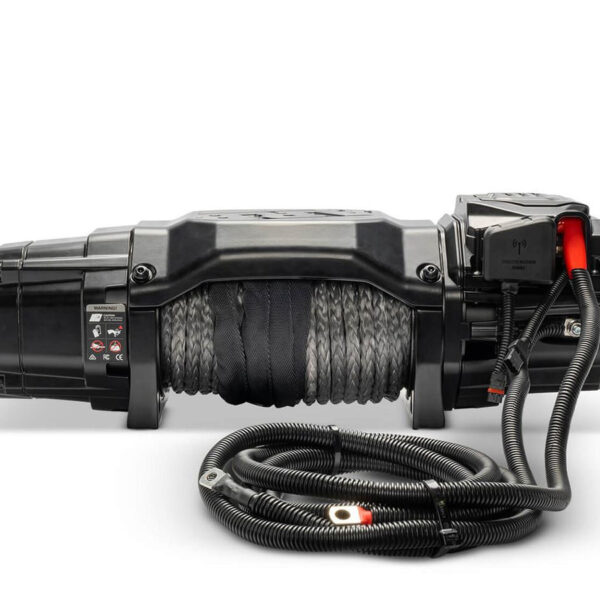

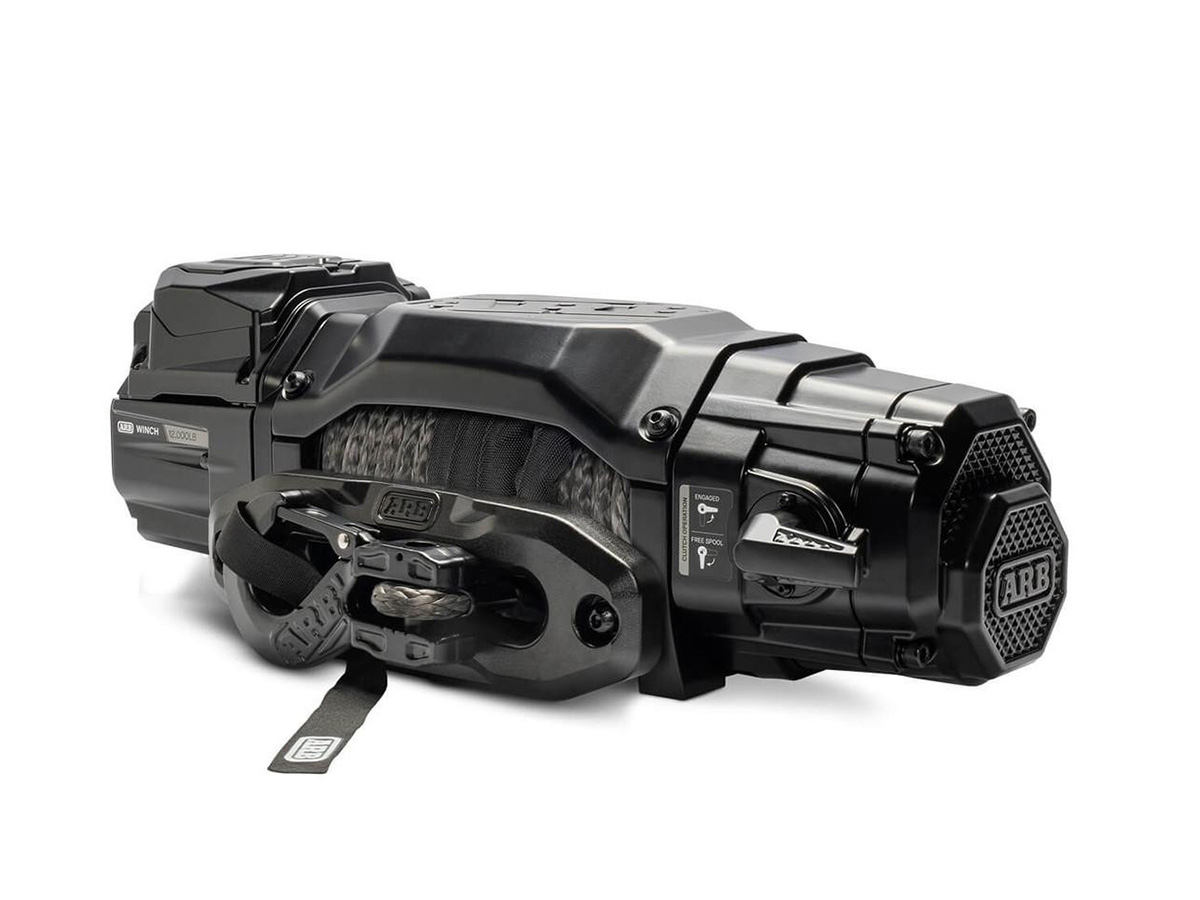

Le treuil ARB 5,4 tonnes 12V représente une nouvelle génération d’équipements de remorquage pour véhicules tout-terrain. Pensé pour une intégration optimale aux pare-chocs actuels, il élimine la commande externe traditionnelle au bénéfice d’une unité de pilotage moteur incorporée. Cette conception technique favorise un meilleur acheminement du flux d’air vers le système de refroidissement, protège les capteurs d’aide à la conduite et raccourcit significativement le temps d’installation.
Équipé d’un moteur 12V haute performance de 4,3 kW à excitation en série, ce treuil est associé à un réducteur à 4 étages avec un rapport de 171:1 pour une transmission de couple maîtrisée. Son système de freinage à traînée nulle, positionné dans le carter de transmission, garantit un maintien de charge à 100 % et permet un déroulement motorisé à vide sans échauffement mécanique. Livré avec une corde synthétique grise de 24 m en diamètre 11 mm, un écubier en aluminium 6061 forgé et une commande double connexion (filaire 5 m ou radio 40 m), il combine puissance, sécurité et modernité pour les usages les plus exigeants.
Caractéristiques
– Capacité à 12V : 12 000 lb
– Charge maximale : 5 443 kg
– Tension : 12 V
– Puissance nominale : 4,3 kW
– Courant nominal : 500 A
– Rapport de réduction : 171:1
– Moteur : moteur série 12V optimisé pour des vitesses de ligne plus rapides avec une consommation maîtrisée
– Boîtier de commande : unité de contrôle moteur intégrée avec contacteur Albright (suppression du boîtier externe)
– Système de freinage : Zero Drag, frein monté sur le réducteur, maintien de charge 100 %
– Câble : corde synthétique
– Longueur : 24 m
– Diamètre : 10 mm
– Guide-câble : Hawse en aluminium
– Télécommande :
. Sans fil rechargeable
. Filaire avec câble de 5 m
. Portée sans fil jusqu’à 40 m
. Interrupteur principal : coupe-circuit d’alimentation intégré
. Protection : indice IP68
. Protection contre la surchauffe : non
ARB WINCH, 12000LB, SYNTHETIC
The first ARB Winch marks a new era in recovery, blending precision engineering with modern vehicle integration. Its innovative built-in control unit enhances motor efficiency, while the four-stage gearbox delivers maximum strength and endurance. Designed for today’s bumpers, it eliminates the traditional control box, providing a sleek fit that preserves airflow and sensor functionality while reducing fitting time. Purpose built for balanced strength, functionality, and refined design, it integrates seamlessly and is ready for any terrain.
FEATURES:
TUNED 12V MOTOR
A purpose-built series-wound motor powers the four-stage gearbox, delivering faster line speeds with lower current draw. BUILT-IN MOTOR CONTROL UNIT
The advanced design features a direct connection Albright contactor that boosts motor efficiency and eliminates the need for a conventional control box.
ZERO DRAG BRAKING SYSTEM
The gearbox-mounted brake provides 100% load holding and allows powered unspooling under no load without causing any damage to the winch.
4 STAGE GEARBOX
Hardened steel gearsets are engineered for maximum strength, optimal load distribution, and long-lasting durability. MAIN POWER ISOLATION SWITCH
The ARB Winch features a main power isolation switch, allowing you to safely cut power to the winch when not in use. ROBUST BUILD QUALITY
The lightweight aluminium alloy housings are engineered for maximum strength and durability. DUAL CONNECTION WIRELESS REMOTE

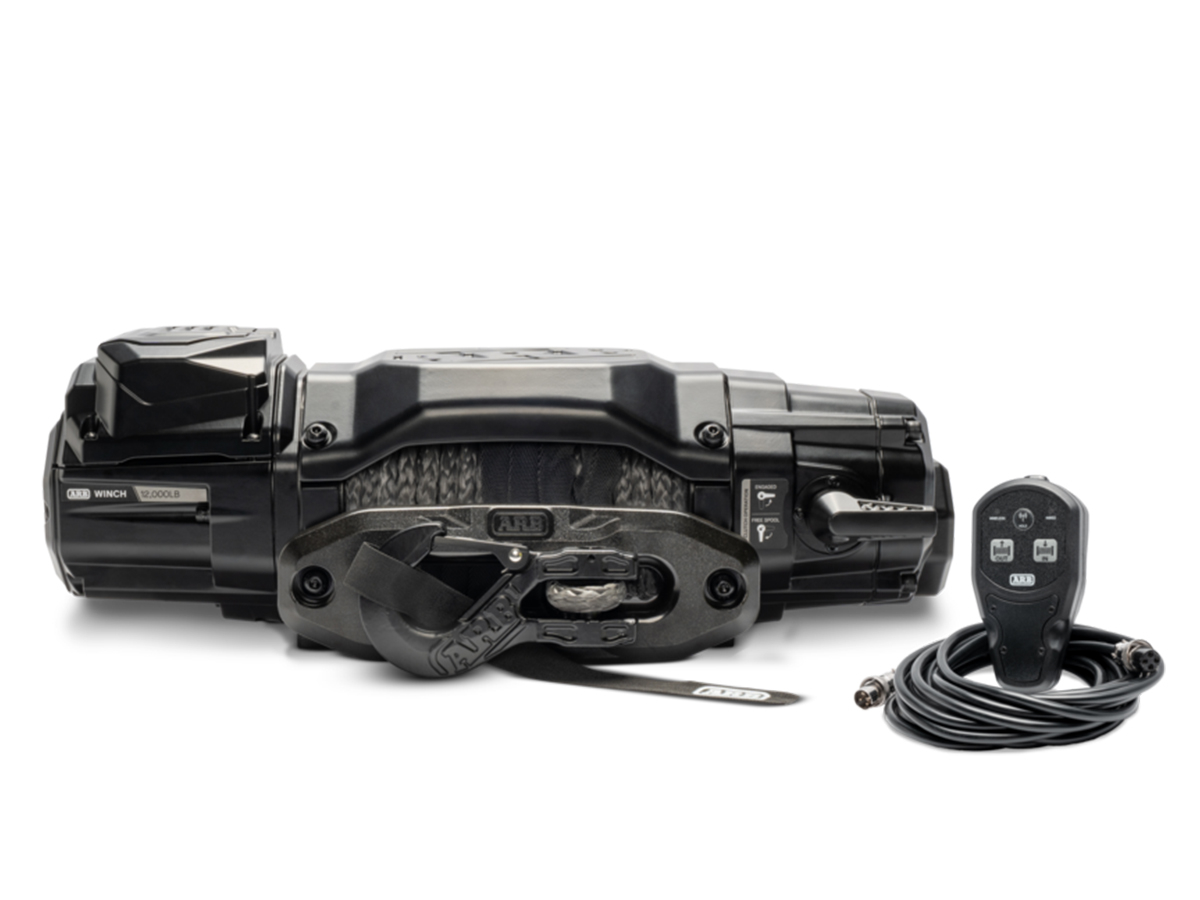

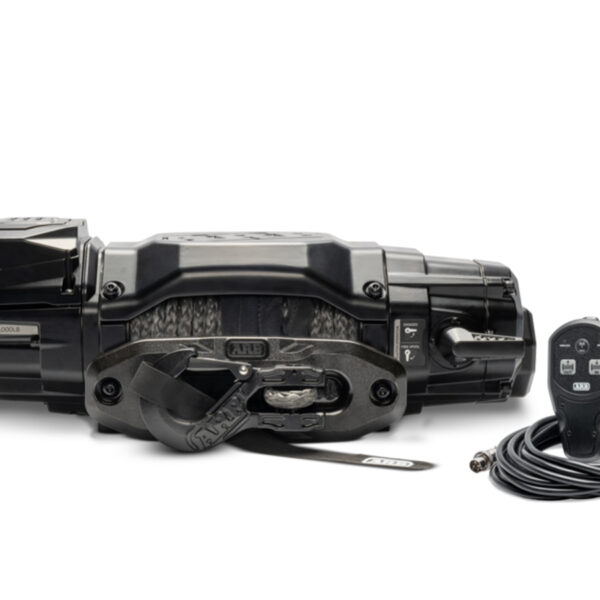

Compact hand controller with options for wired connection with a 5m/16ft lead or wireless operation with a 40m/98ft range. QUICK AND EASY FITMENT
With multiple mounting options, the ARB Winch comes prewired and features preset gearbox positioning to fit most common vehicles.
