SUPPLEMENTARY BRACE KIT 22+ RAPTOR CANOPY INSTALL

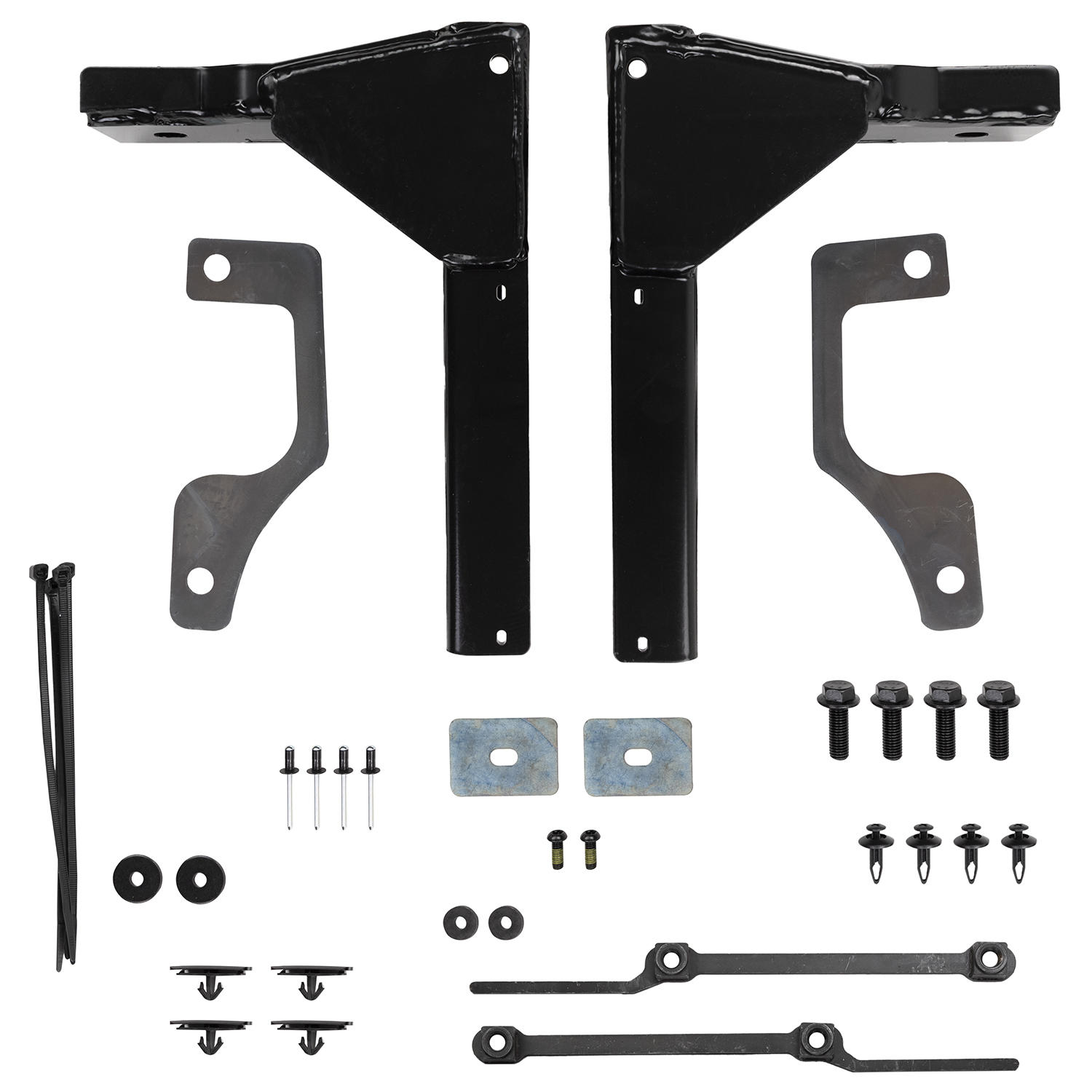

ARB J BRACE TUB REINFORCING BRACKET

Ford have advised in their Body Equipment Mounting Manual (BEMM) for the new MY22.00 Ranger that, in order to protect tub warranty, an additional brace kit needs to be installed whenever a canopy is fitted to the Dual Cab or Extra Cab pick-up tub.

To support this requirement, ARB has developed a brace kit that is applicable to Ford Ranger MY22.00 dual and extra cab tubs. This brace kit has been approved by Ford and must be used in all canopy installations.

The J brace reinforces the connection between the vehicle chassis rail and the tub. It is installed from underneath the vehicle, independent of the installation of the canopy itself.
