SUMMIT RSTB TRION MQ 15ON – 3100KG RATED N

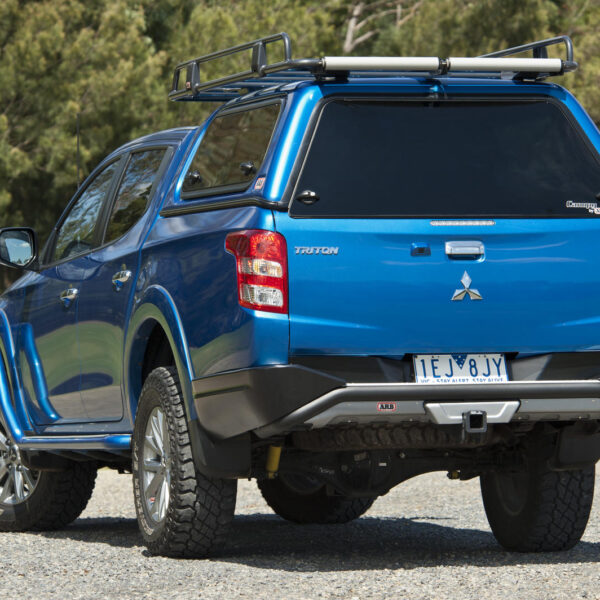

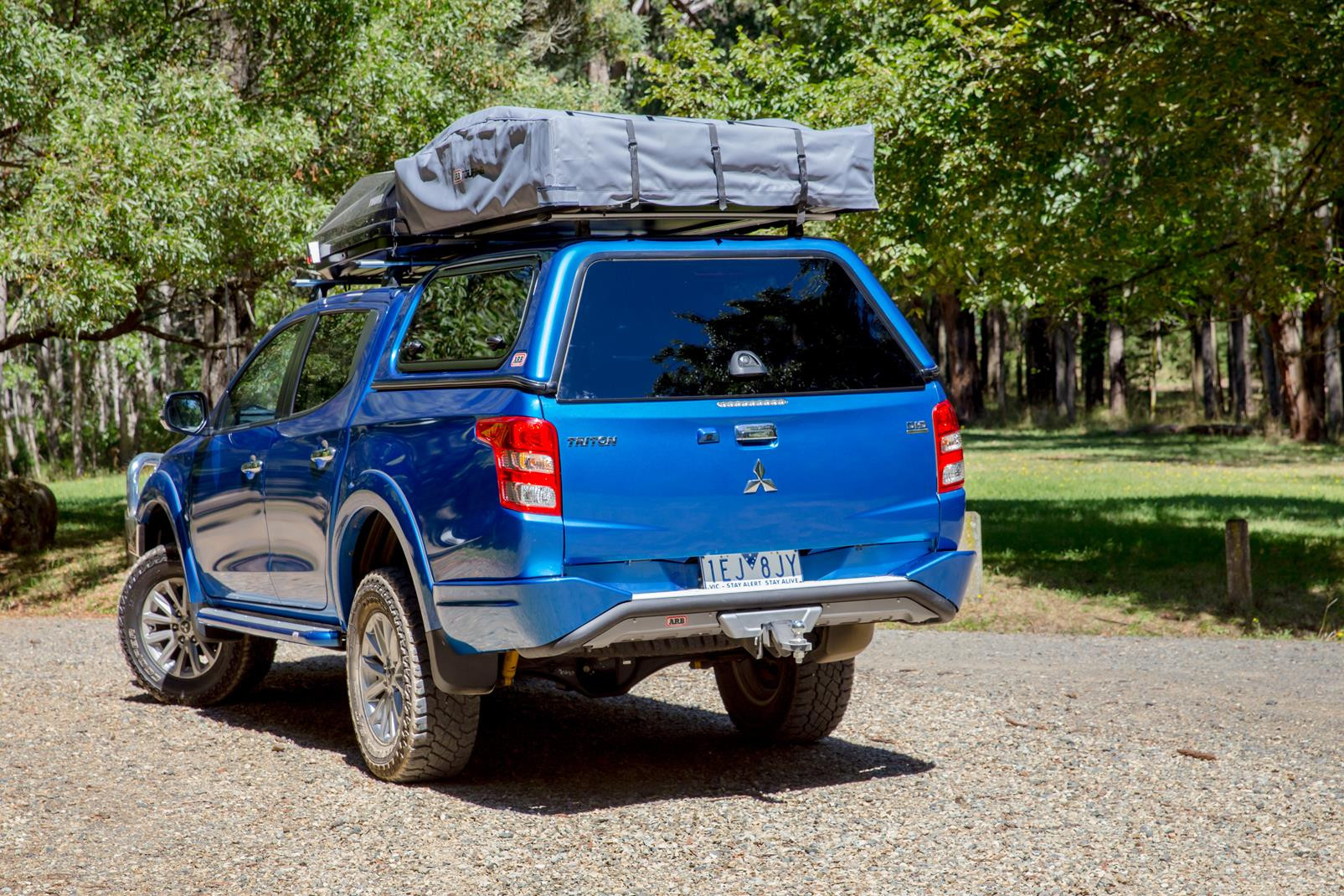

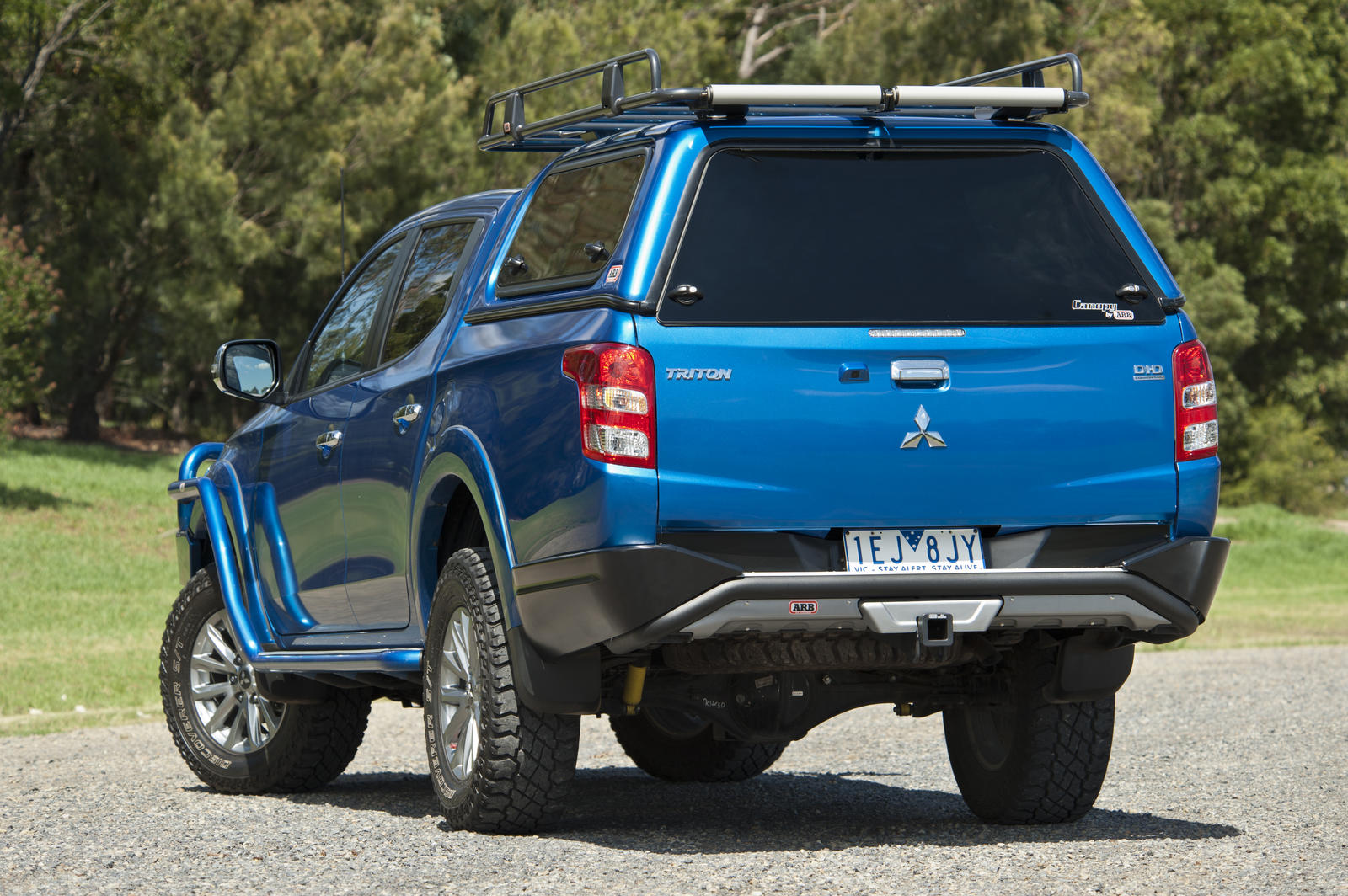

Summit Rear Step Tow Bar

This modern, stylised rear step tow bar provides protection, easy access to the vehicle and maximum towing capacity. The Summit rear step tow bar features a textured powder-coated 60.3mm tubular frame.

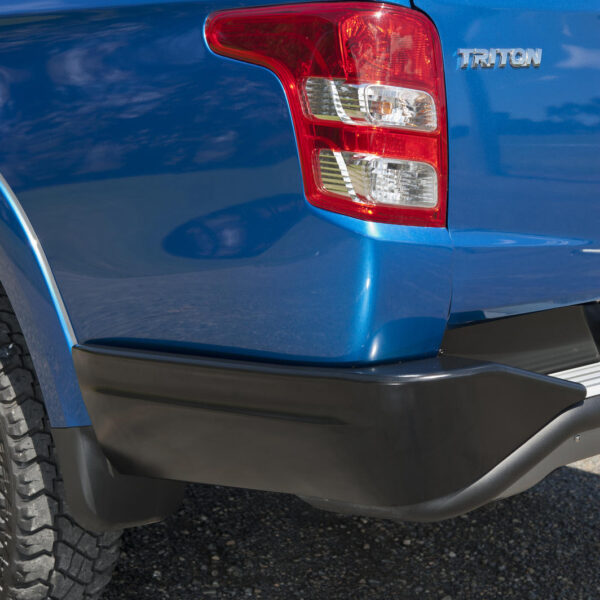

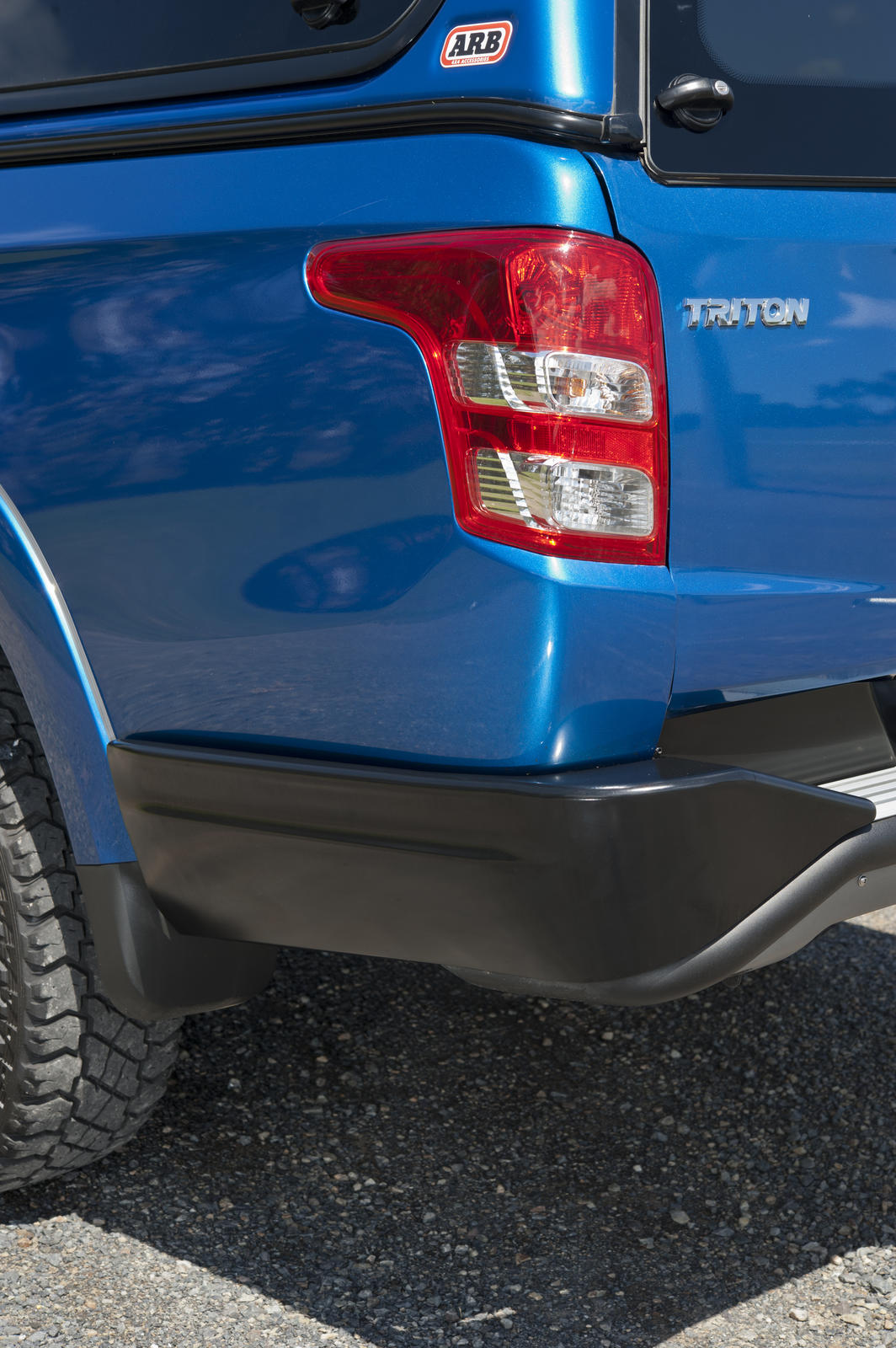

As rear tub corners on utility vehicles are vulnerable to damage, replaceable steel wing panels mount to the chassis and rear step towbar assembly for optimum strength and rigidity. The wing panels come standard in a black powder-coat finish but can be colour-coded (optional extra) for additional vehicle integration.


PROTECTION & STYLING CHARACTERISTICS:

• Vehicle specific wing design.
• Registered design of styling and design components.

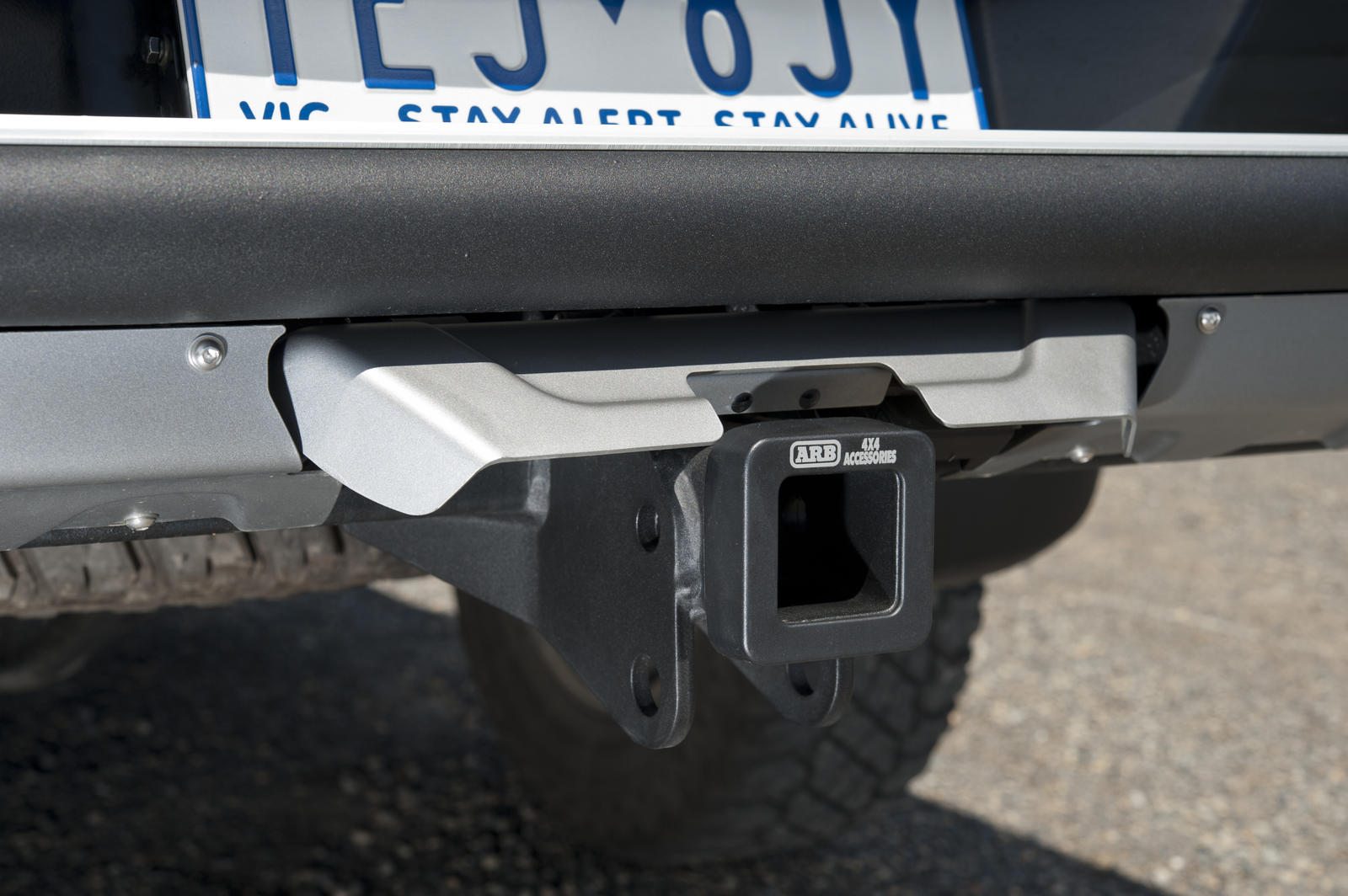

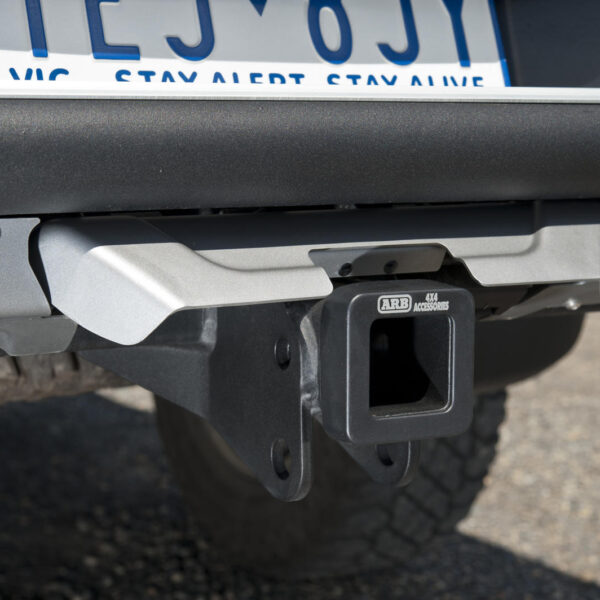

• 3.5tonne, Class 4, 50mm hitch with gusset supplied as standard.

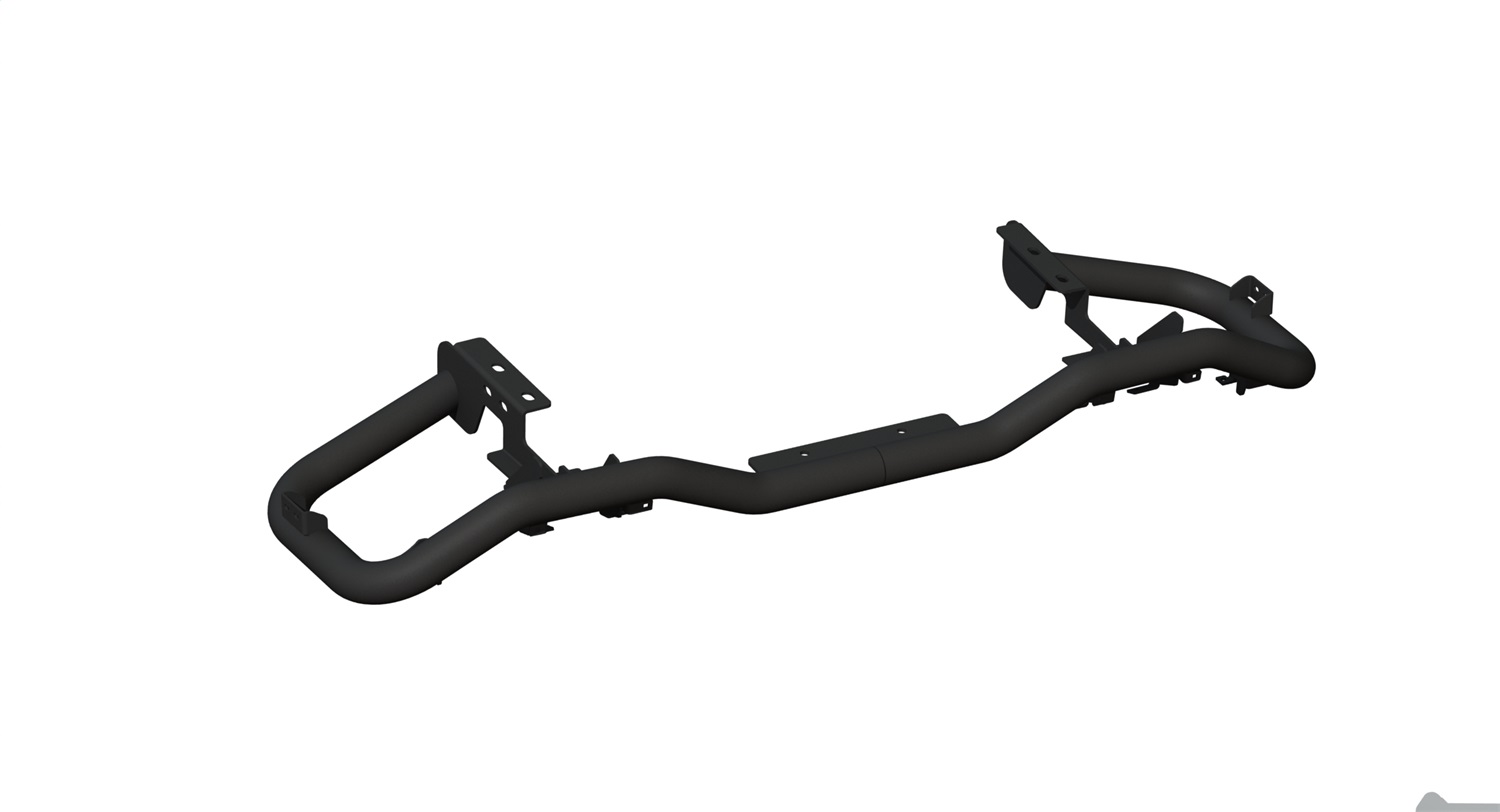

• 60.3mm x 2.6mm ERW tubing used for main frame. Tubing finished in textured black powder coat.
• Two tow chain fixture points.
• Separate bolt on wings supplied in a satin black powder coat. Fitment requires 70mm access holes to be drilled through the lower section of the vehicle tub.
• Centre lift up panel finished in a light grey powder coat.
  •  Provision for mounting ARB trailer plug wiring.
  •  Provision for ARB air compressor outlet.
• Provision for mounting ARB Trailer Camera wiring (part # 10600030).
• Provision for 50amp Anderson plug.
• Anodised silver extrusion featuring ridges for grip.
• Moulded license plate bezel and OE license plate light.
• Beaver panel included in satin black powder coat.
• Flip down number plate bracket to allow access to the factory spare wheel mechanism.
• Off-Road jack points on wings and under the 60.3mm tube.
• Designed to accept Bushranger Recovery Hitch part # 58X22/A.
• Zinc rich primer for additional corrosion resistance.
