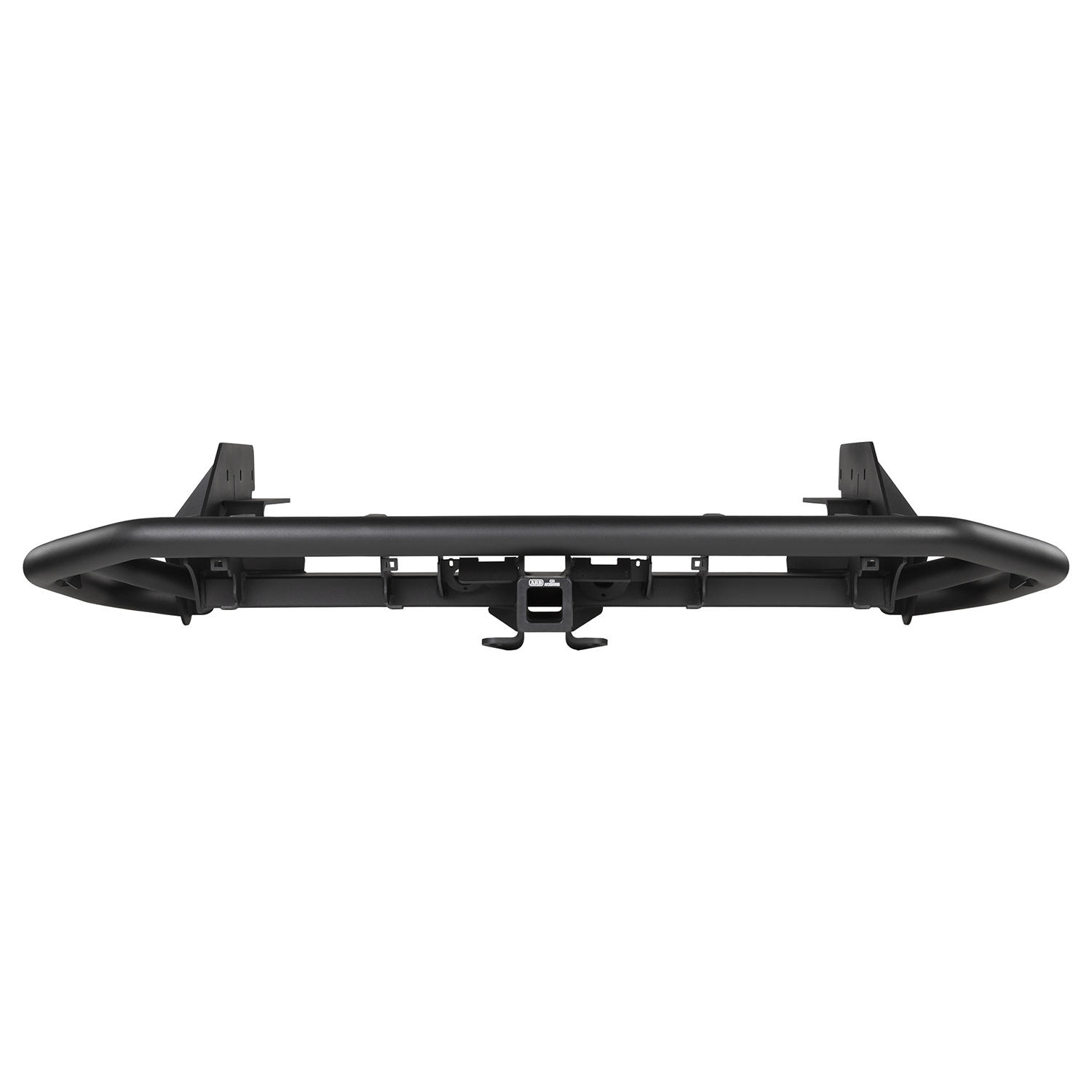

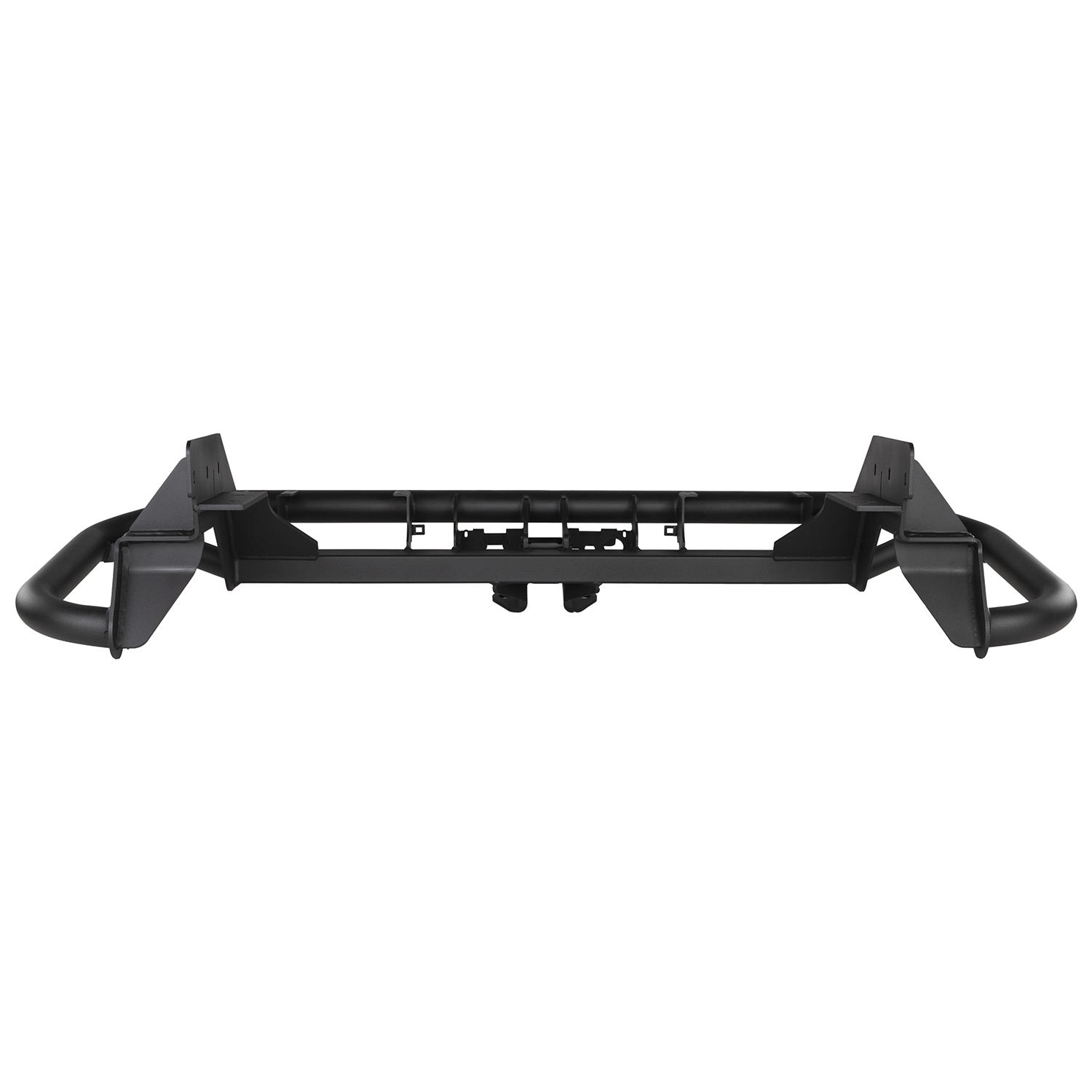

Summit Raw Rear Step Tow Bar

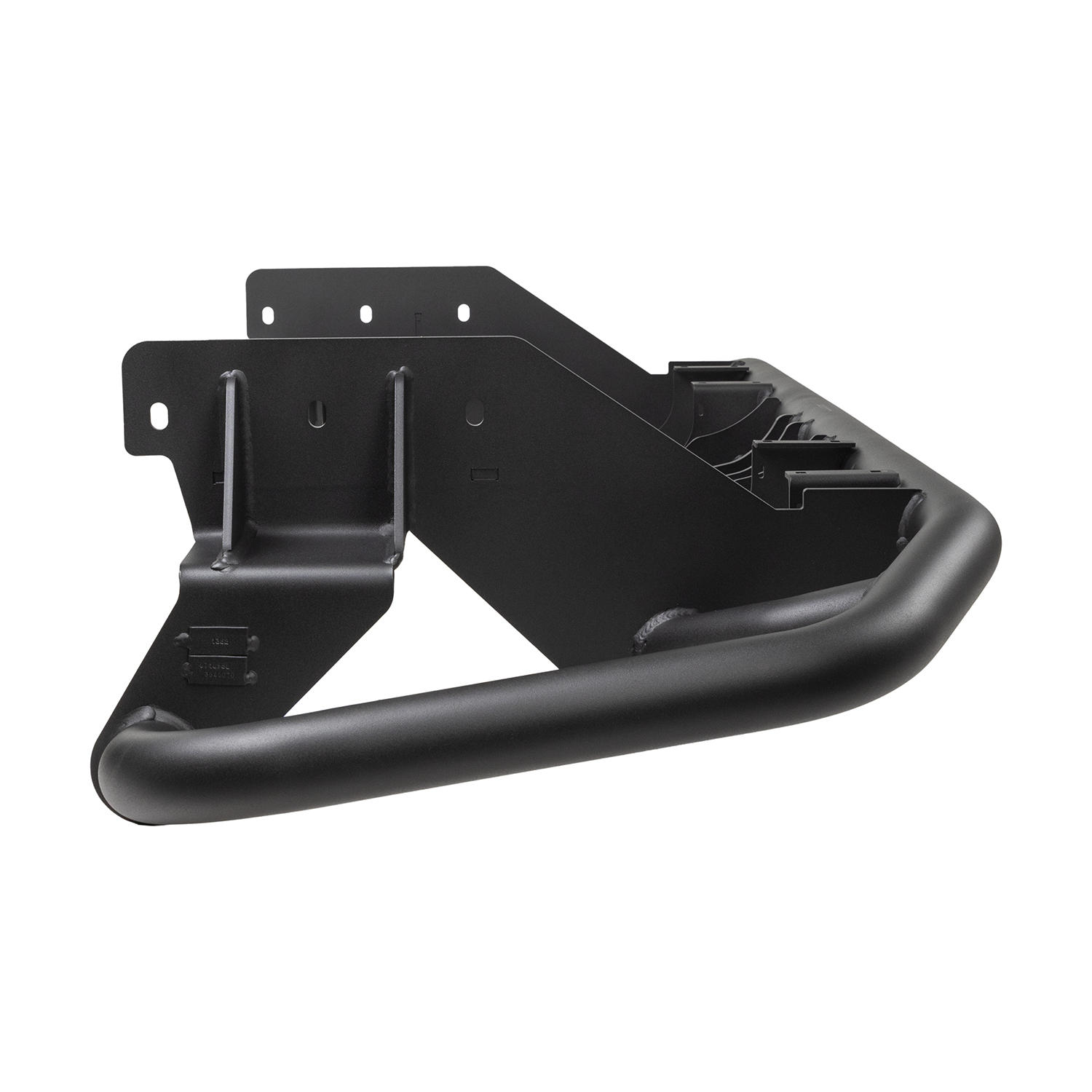

With a heritage derived from the Summit rear step towbar, the Summit Raw rear step tow bar has a redesigned wing tube that provides protection to the lower section of the tub.


• Multiple chassis mounting points designed for optimum strength and rigidity.
• Integrated heavy duty towing system features a Class 4 50mm hitch receiver that tows up to the vehicle’s rated towing capacity.
• An anodised tread panel provides grip for safe access to the vehicle tub or roof.
• Integrated numberplate light (model dependent).
• Protected recessed mount trailer plug wiring, an ARB air compressor outlet, an ARB trailer camera wiring connection and a 50-amp Anderson plug.
• Available for vehicles both with and without factory rear parking sensors
• Two jacking points provide versatility when recovering your 4WD.

Protection & Styling Characteristics:

• Vehicle specific design for the MR Triton dual cab GLX/GLX+.
• 3.1T Class 4 50mm hitch with gusset supplied as standard.
• 60.3mm x 2.6mm ERW tubing used for main frame. Tubing finished in Integrit textured black powder coat.
• Zinc rich primer for additional corrosion resistance.
• Beaver panel supplied in satin black powder coat.
• Retains OE license plate lights.
• Flip down number plate bracket to allow access to the factory spare wheel mechanism.
• Two tow chain fixture points.
• Provision for OE rear parking sensors.
• Provision for mounting ARB trailer plug wiring. Refer section below.
• Provision for mounting ARB air compressor outlet.
• Provision for mounting ARB Trailer Camera wiring (part # 10600030).
• Provision for mounting 50amp Anderson plug.
• Anodised silver extrusion featuring ridges for grip fitted to step section.
• ARB Jack and Hi-Lift jack points under the 60.3mm tube.
• Designed to accept Bushranger Recovery Hitch part # 58X22/A.
• Weighs approximately 55kg.
