SUMMIT RAW REAR BUMPER 20ON HILUX OE TOWBAR/SENSORS

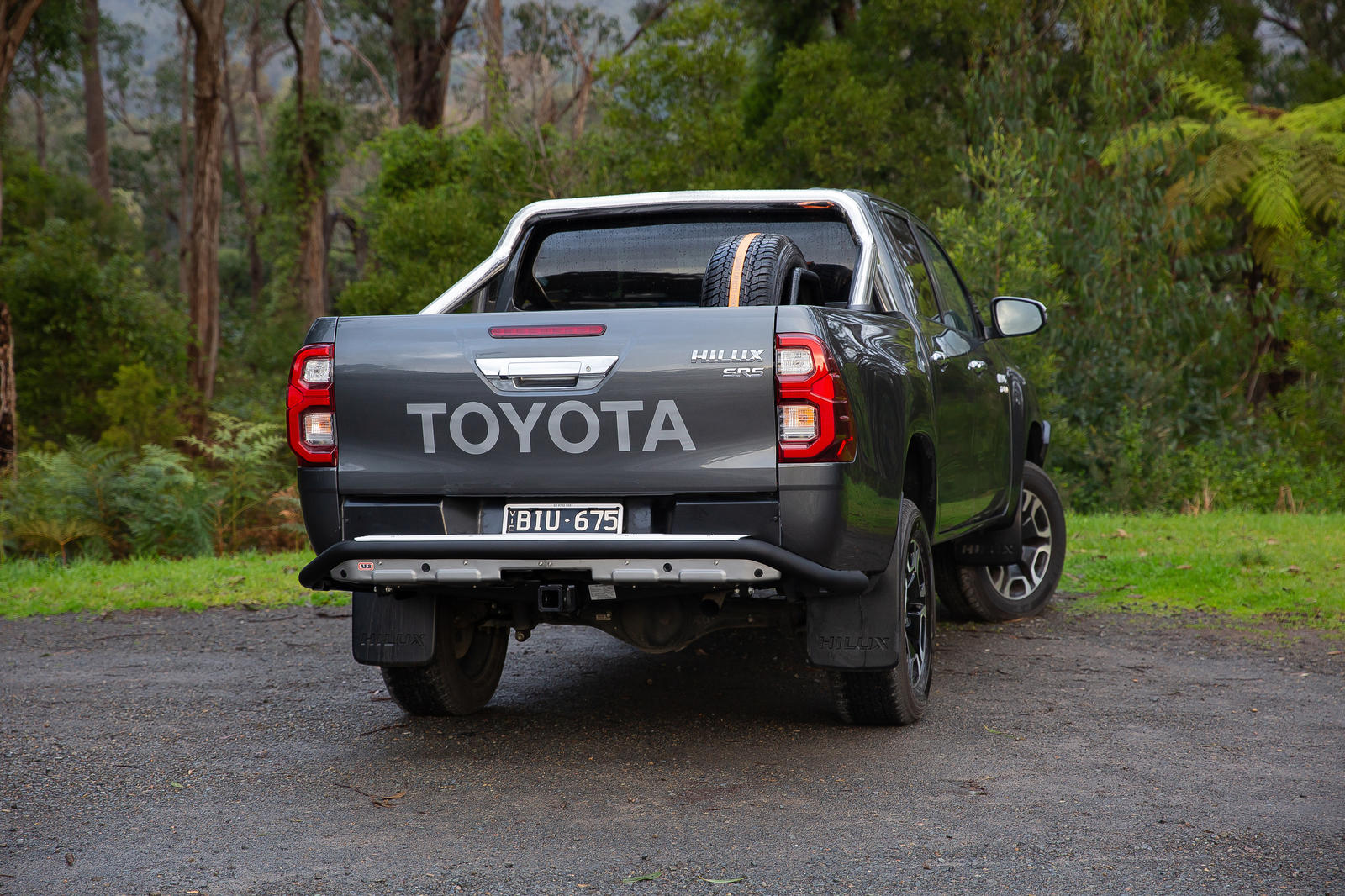

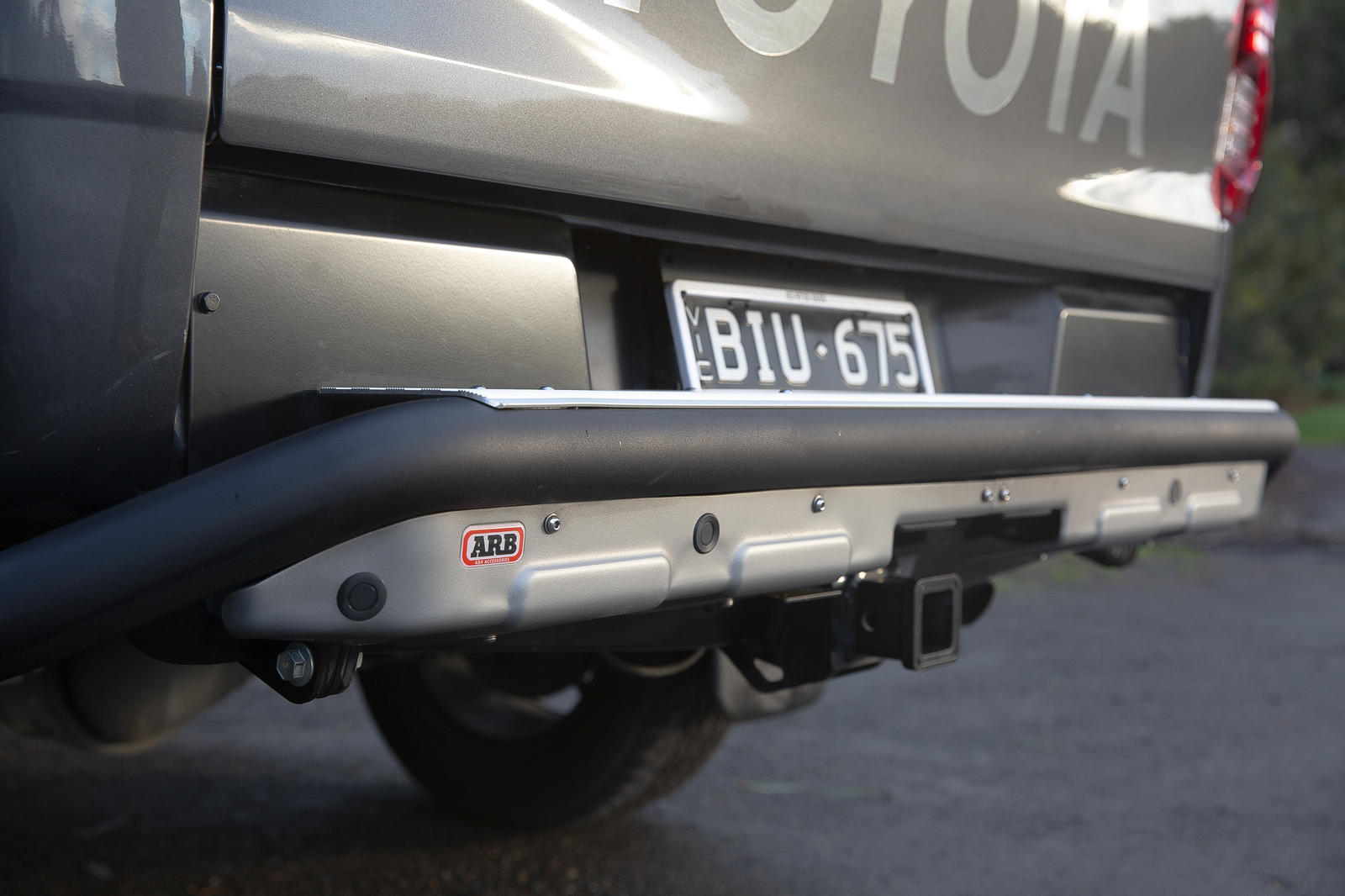

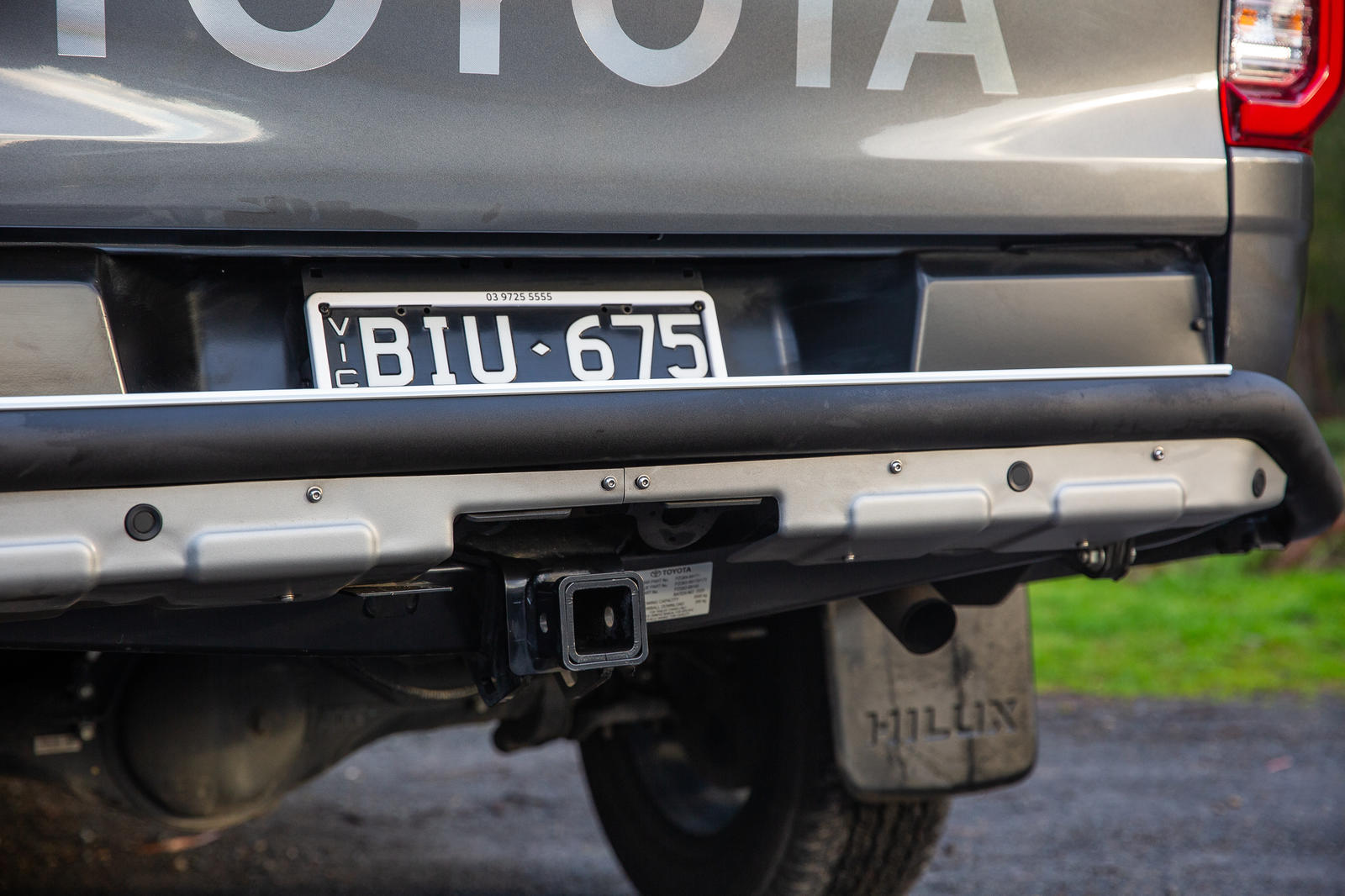

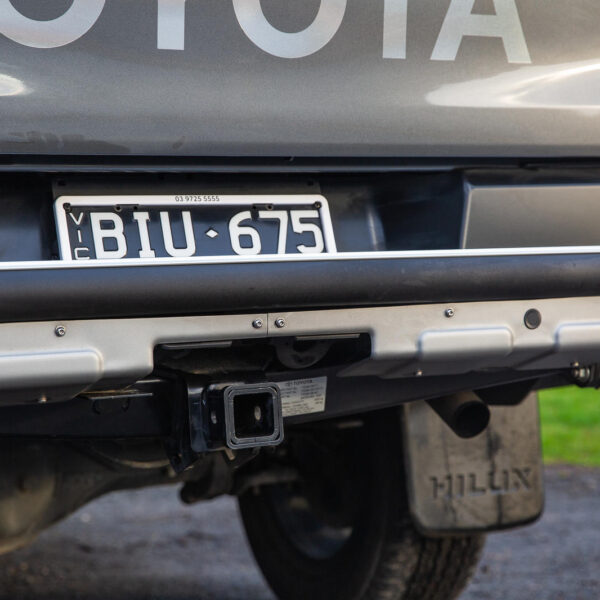

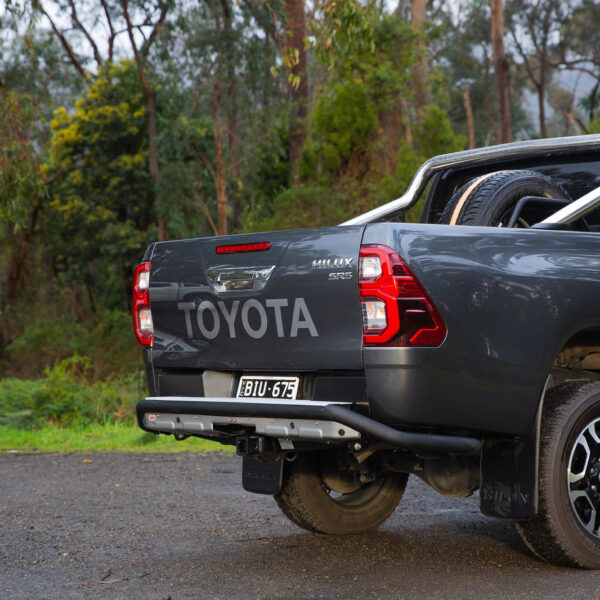

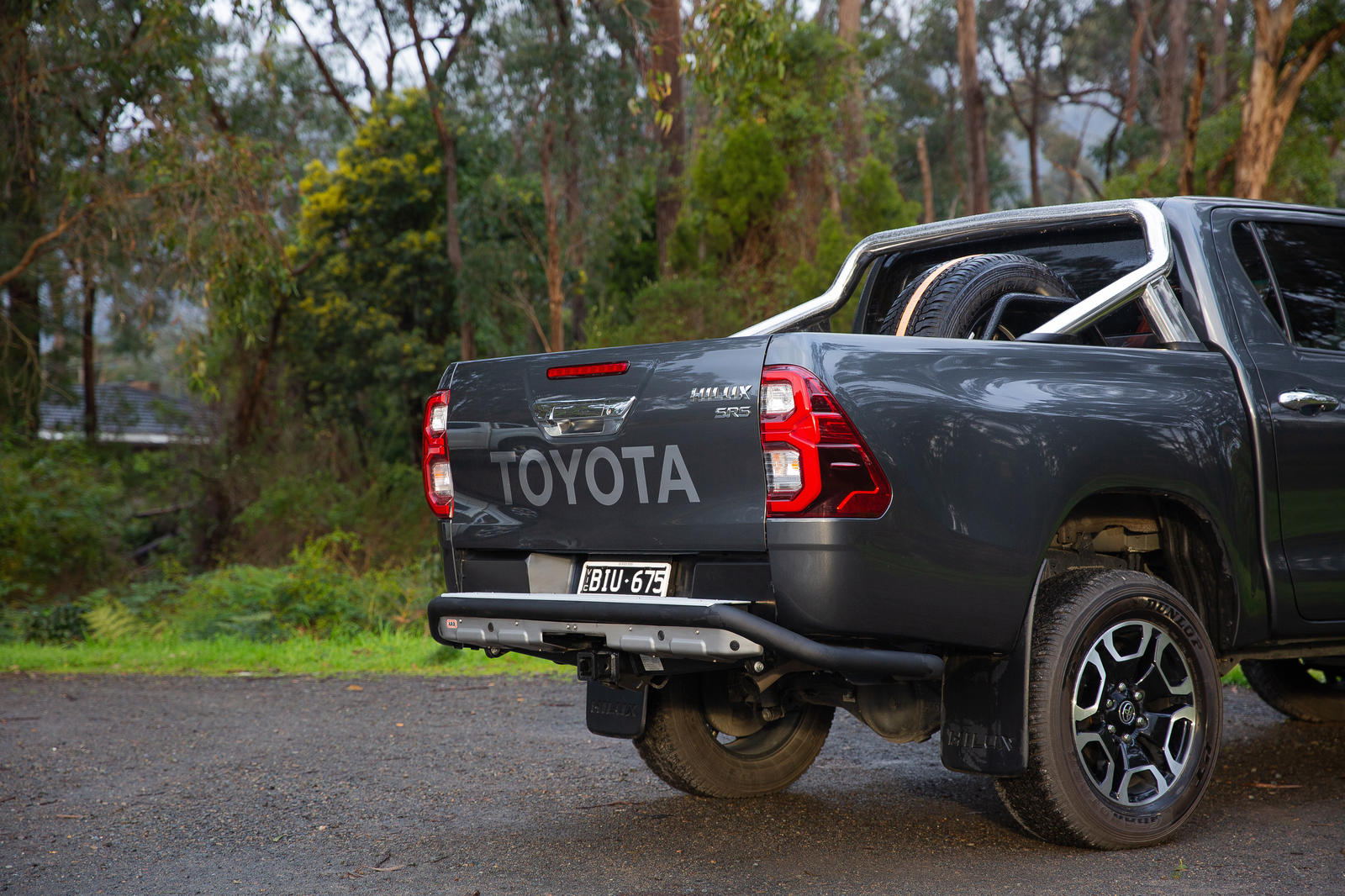

Summit Raw Rear Step Tow Bar

 Based on the Summit RSTB but stripped back, the Summit Raw rear step tow bar has a redesigned wing tube that provides protection to the lower section of the tub.

Unique to the Hilux platform, this Summit Rear Step Bar has been developed to fit in conjunction with the original equipment Towbar assembly fitted to the SR5.

• Multiple chassis mounting points designed for optimum strength and rigidity.
• Integrated heavy duty towing system features a Class 4 50mm hitch receiver that tows up to the vehicle’s rated towing capacity.
• An anodised tread panel provides grip for safe access to the vehicle tub or roof.
• Integrated numberplate light (model dependent).
• Protected recessed mount trailer plug wiring, an ARB air compressor outlet, an ARB trailer camera wiring connection and a 50-amp Anderson plug.
• Available for vehicles both with and without factory rear parking sensors
• Two jacking points provide versatility when recovering your 4WD.

Protection & Styling Characteristics:

• Vehicle specific design for the Hilux SR5 models fitted with the Original Equipment towbar.
• Provision for OE rear parking sensors in diffuser panels.
• Guard for auto levelling headlight sensor. Compatible with Old Man Emu suspension relocation.
• 60.3mm x 2.6mm ERW tubing used for main frame. Tubing finished in Integrit textured black powder coat.
• Metaprep primer for additional corrosion resistance.
• Two piece beaver panel supplied in satin black powder coat.
• Retains OE license plate lights.
• Flip down number plate bracket to allow access to the factory spare wheel mechanism.
• Provision for mounting OE trailer plug wiring.
• Provision for mounting ARB air compressor outlet.
• Provision for mounting ARB Trailer Camera wiring (part # 10600030).
• Provision for mounting 50amp Anderson plug.
• Anodised silver extrusion featuring ridges for grip fitted to step section.
• ARB Jack and Hi-Lift jack points under the 60.3mm tube.
• Summit Raw Rear Step Bar Part No. 3614160 weighs approximately 37kg.
