SUMMIT MKII BAR MATT BLACK SUIT HILUX MY24 ON

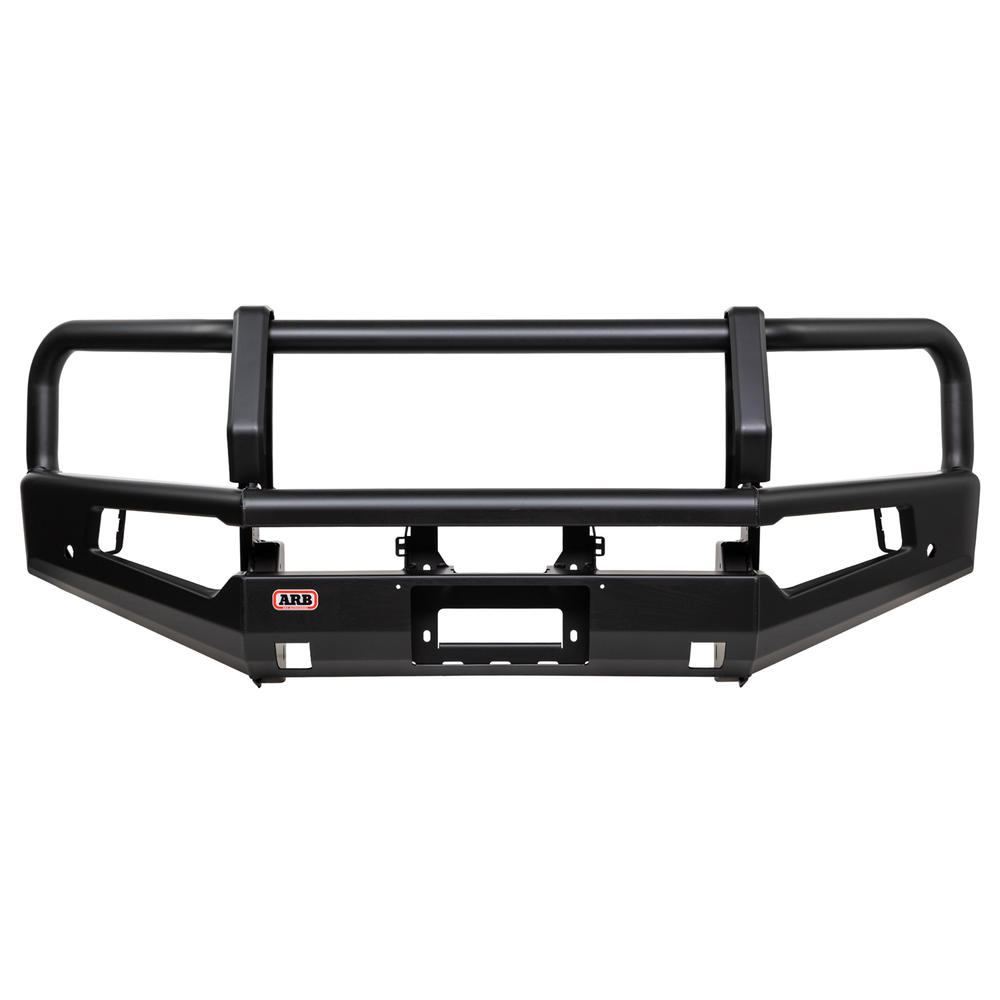

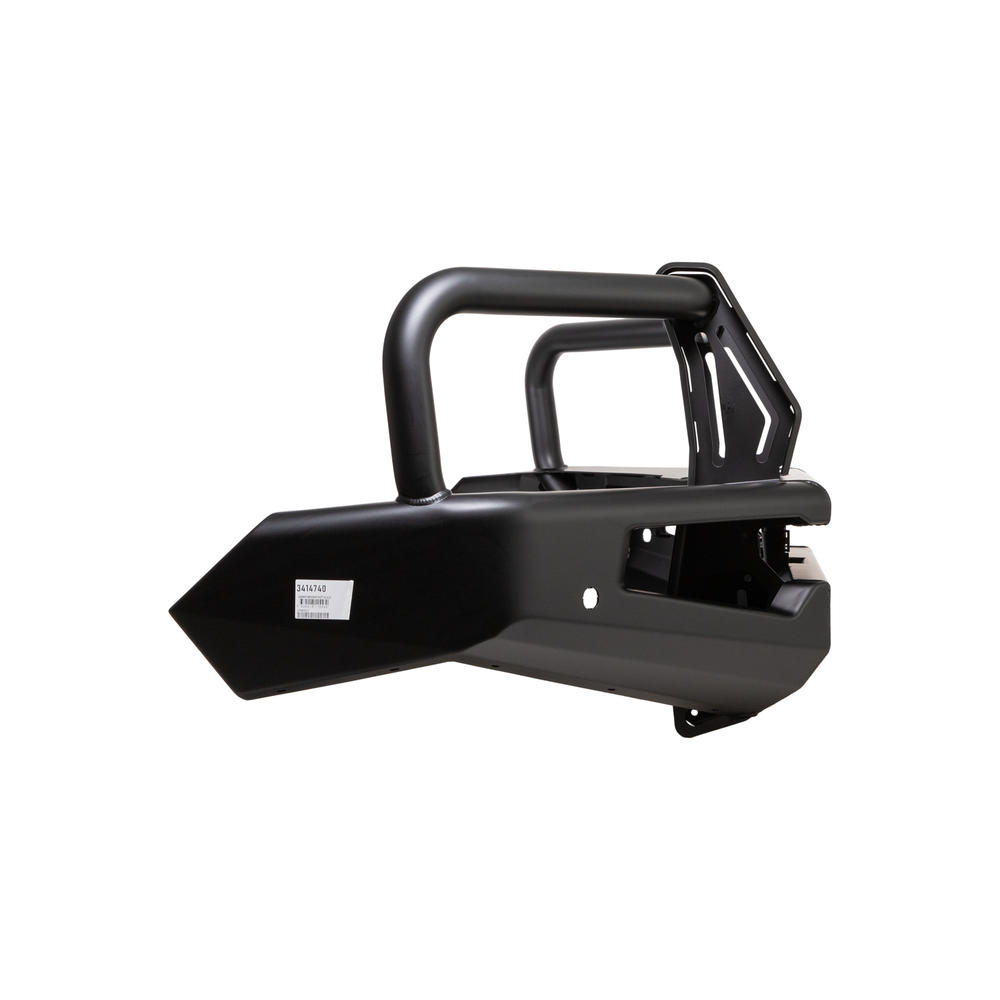

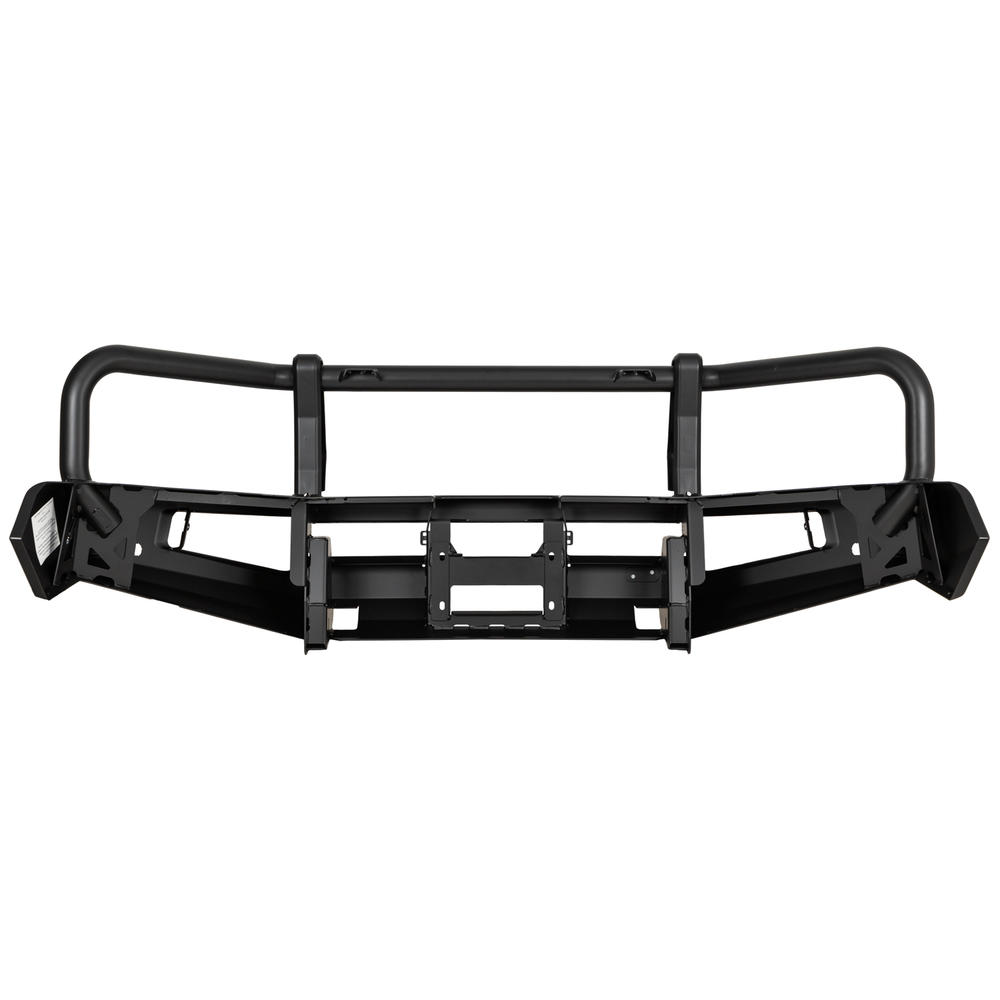

ARB SUMMIT BAR MKII

The ARB Summit Bar MKII is now released for the ever-popular Toyota Hilux and has been designed to be fully integrated with Toyotas Intelligent safety technology better known as Safety sense. Panoramic View Monitor is support by a camera relocation kit and is an available option for variants that specify the 360-degree view front facing camera. The state-of -the-art Summit Bar MKII takes key components of Its flagship namesake and kicks It up a notch with an ultra-modern design that’s constructed to turn heads.  Hilux Bars have just gotten better!

Summit MKII has eliminated front buffers and now has robot welds on the front face of the bar to highlight ARB’s excellence in sheet metal fabrication. Fog light design has been significantly updated to include a plug and play indicator / clearance light / Daytime Running Light and fog light within one complete unit for an integrated approach to incorporate these requirements on modern vehicles.

FEATURES:

• Vehicle specific design suitable for the MY24 Toyota Hilux
• Registered design of styling and design components
• Durable steel construction for maximum protection
• Incorporates ARB’s renowned multi fold upswept and tapered wing design for optimum strength and approach angle
• 30mm radius on wings and centre section
• 60.3mm outer frames and centre cross tube
• Engineered, air bag compatible mounting system secures to the chassis via high tensile bolts
• Split pan design for maximum strength and airflow
• Extensive protection panels on centre and either side
• Pressed form top pan and aluminium (powder coated matt black) winch cover panel
• Twin ARB Jack or Hi-Lift jack points located in the lower pan
• Two antenna brackets located on the centre frame
• Optional Roller Fairlead Cover, Matt Black 3501070

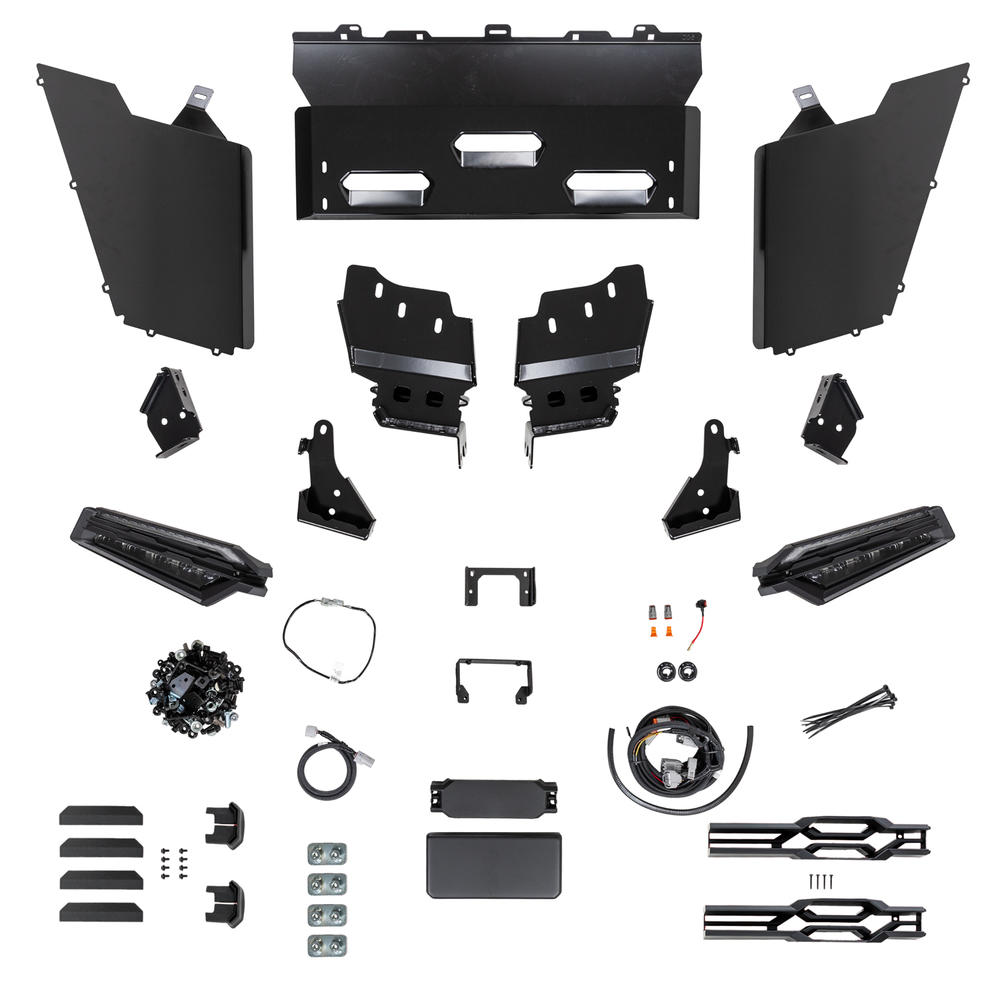

• Camera Relocation kit is included within the fitting kit
• Will accommodate Warn, Magnum, Bushranger, Smittybilt low mount model electric winches up to 10,000lb, separate winch fitting kit required 3501220
• Provision to accommodate ARB Intensity, Intensity IQ and Solis LED’s and a range of Bushranger lights
• Includes ARB LED Fog light, LED Daytime Running Light and LED indicators and clearance lights
• Compatible with original equipment safety features (refer below)
• Bar adds approximately 184mm to the overall length of the vehicle
• Approximate weight of the bar, chassis mounts and fitting kit is 87kg. Approximately 13kg is removed from the vehicle for fitment of the bar
• Metaprep primer for additional corrosion resistance
• Finished in matt black powder coat with the option to colour code to vehicle colour
