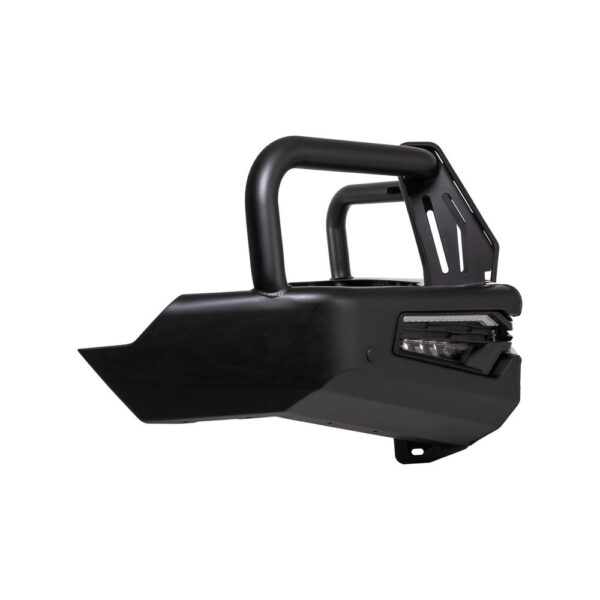

SUMMIT MKII BAR MATT BLACK SUIT DMAX MY24 ON

ARB SUMMIT BAR MKII

Design and Development

Development began with a number of primary areas of the existing Summit Bar platform:
? Buffers
? Fog light housing
? Fitting time

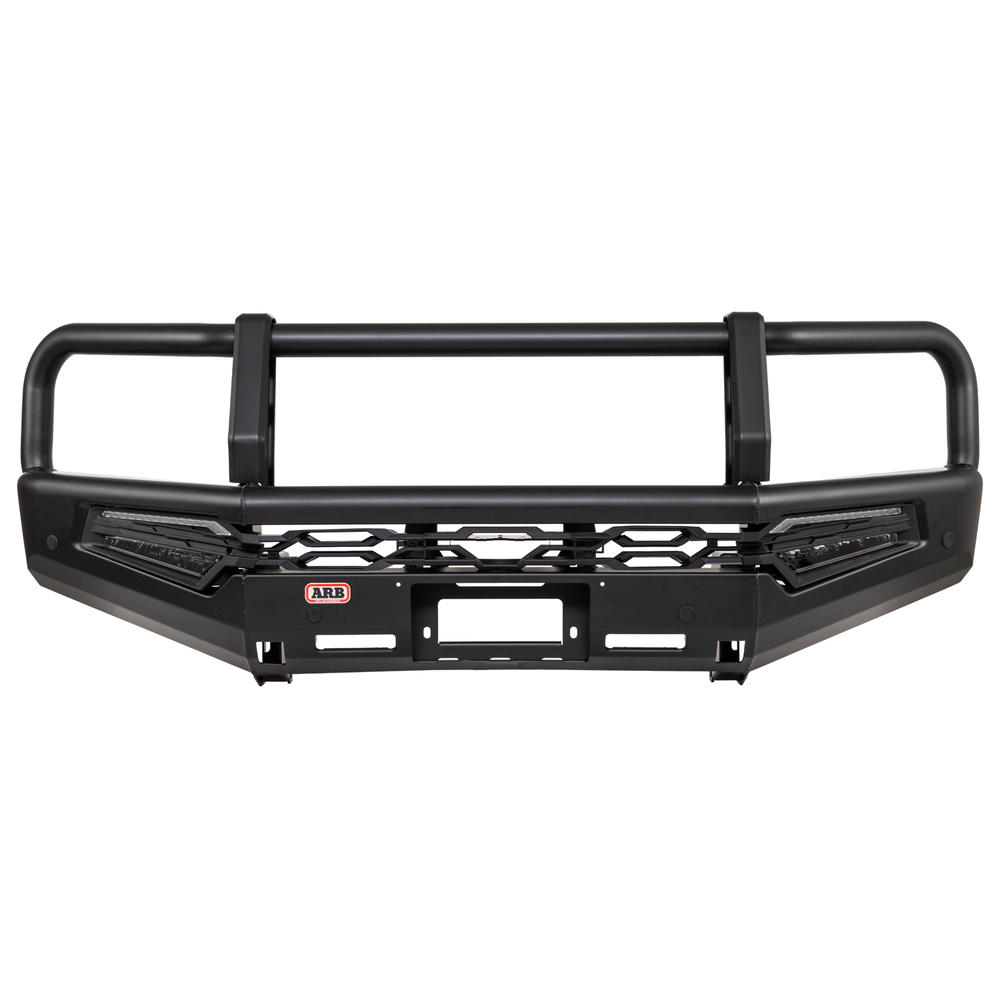

Summit MKII has eliminated front buffers and now has robot welds on the front face of the bar to highlight ARB’s

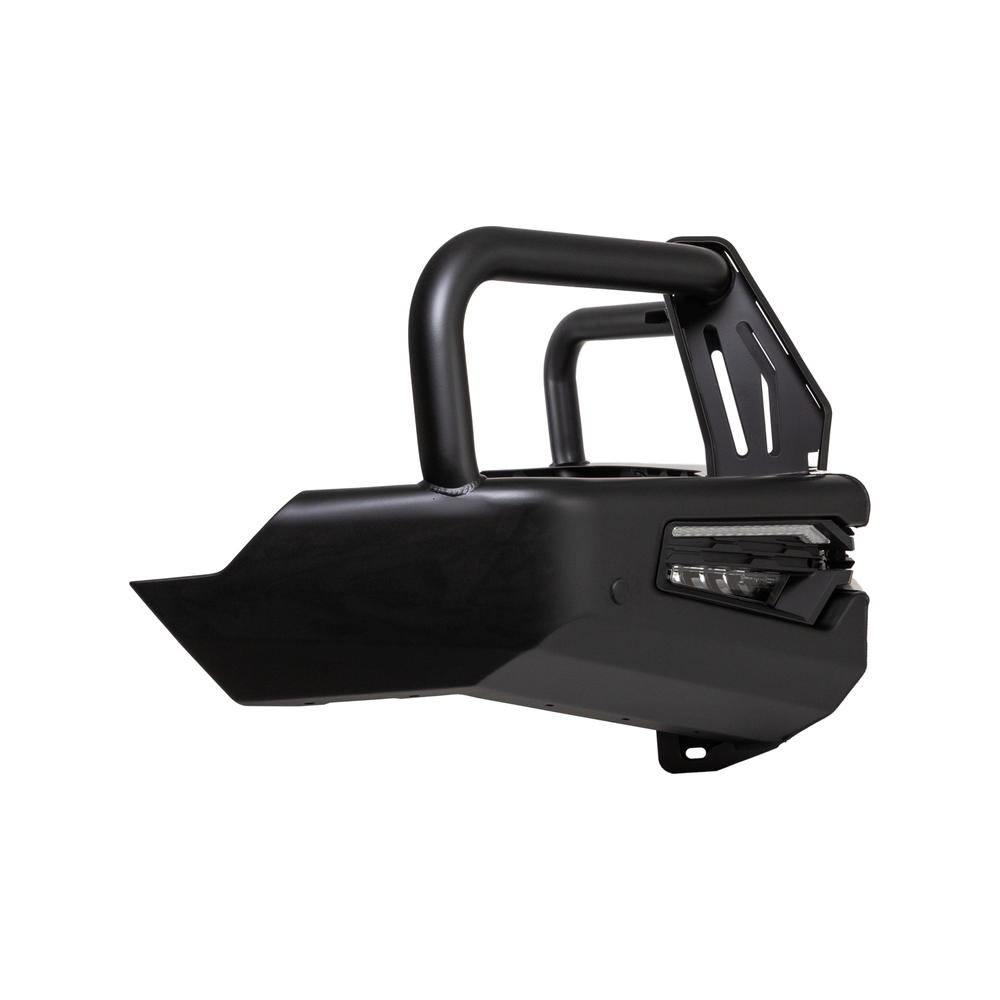

excellence in sheet metal fabrication. Fog light design has been significantly updated to include a plug and play
indicator / clearance light / Daytime Running Light and fog light within one complete unit for an integrated approach
to incorporate these requirements on modern vehicles.

Key Features

? Vehicle specific design
? Registered design of styling and design components.
? Durable steel construction for maximum protection.
? Incorporates ARB’s renowned multi fold upswept and tapered wing design for optimum strength and approach
angle.
? 30mm radius on wings and centre section.
? 60.3mm outer frames and centre cross tube.
? Engineered, air bag compatible mounting system secures to the chassis via high tensile bolts.

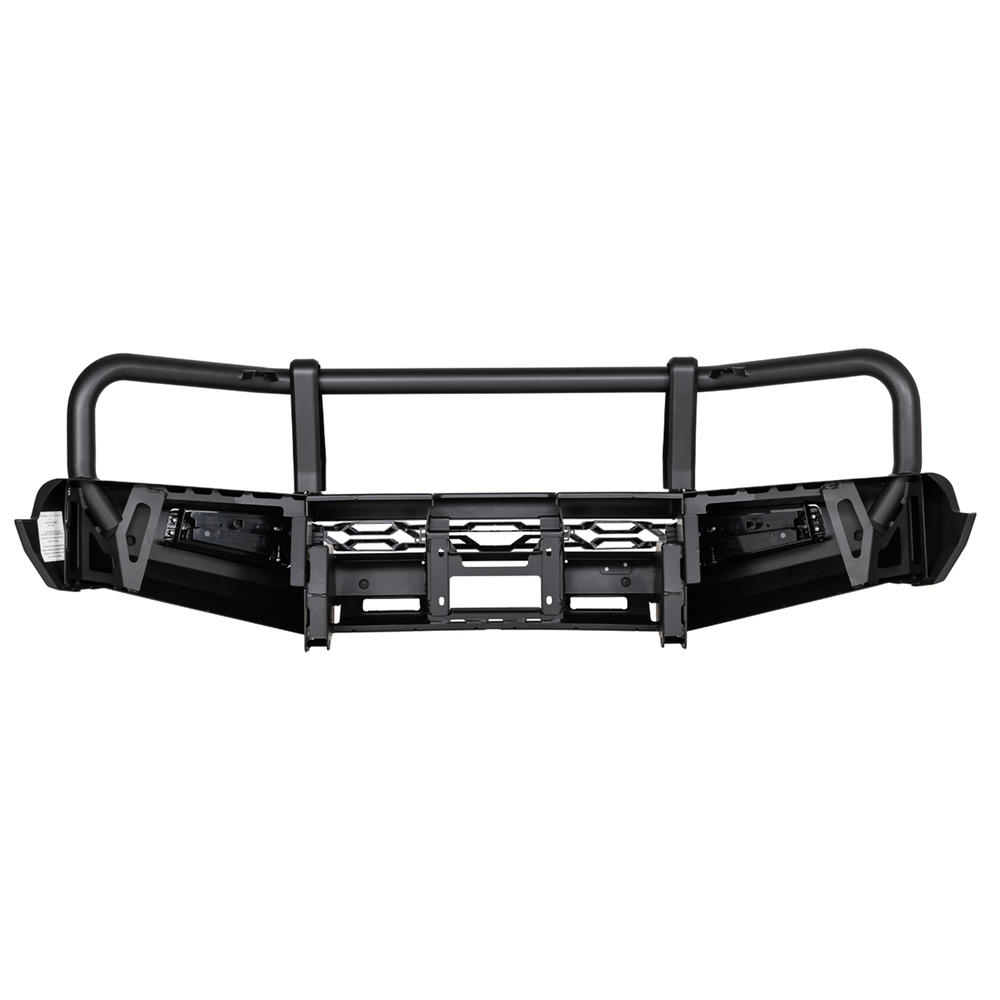

? Split pan design for maximum strength and airflow.
? Extensive protection panels on centre and either side.
? Pressed form top pan and aluminium (powder coated matt black) winch cover panel.
? Twin ARB Jack or Hi-Lift jack points located in the lower pan
? Two aerial brackets located on the outer frames.
? Will accommodate Warn, Magnum, Bushranger, Smittybilt low mount model electric winches up to 10,000lb.
? Provision to accommodate ARB Intensity and Solis LED’s and a range of Bushranger lights.
? Includes ARB LED Fog light, LED Daytime Running Light and LED indicators and clearance lights
? Metaprep primer for additional corrosion resistance.
? Finished in matt black powder coat with the option to colour code to vehicle colour.

Aerials are not to be fitted to the Driver’s side of the bull bar due to potential interference with ADAS system.
