SUMMIT MKII BAR LC76/8/9 DC MY WITH FLARE 8-10

SUMMIT MKII BAR

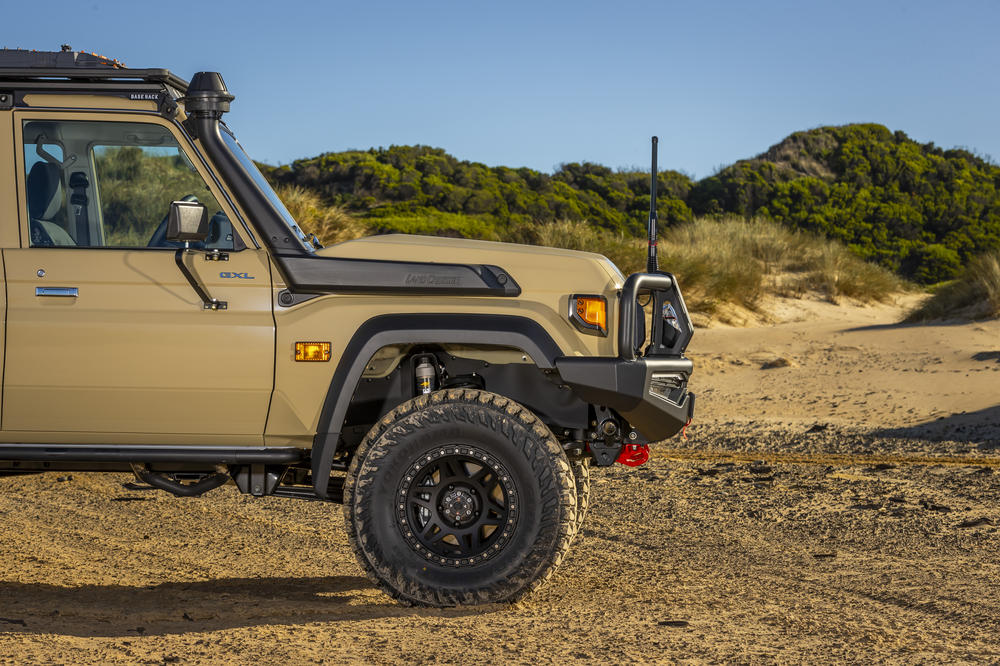

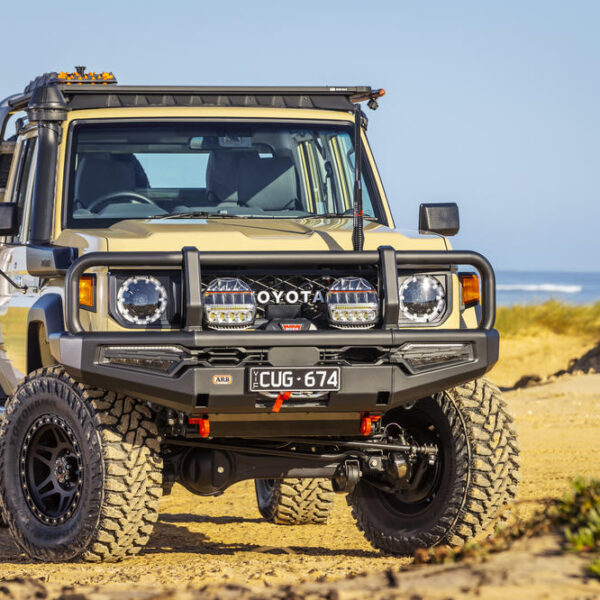

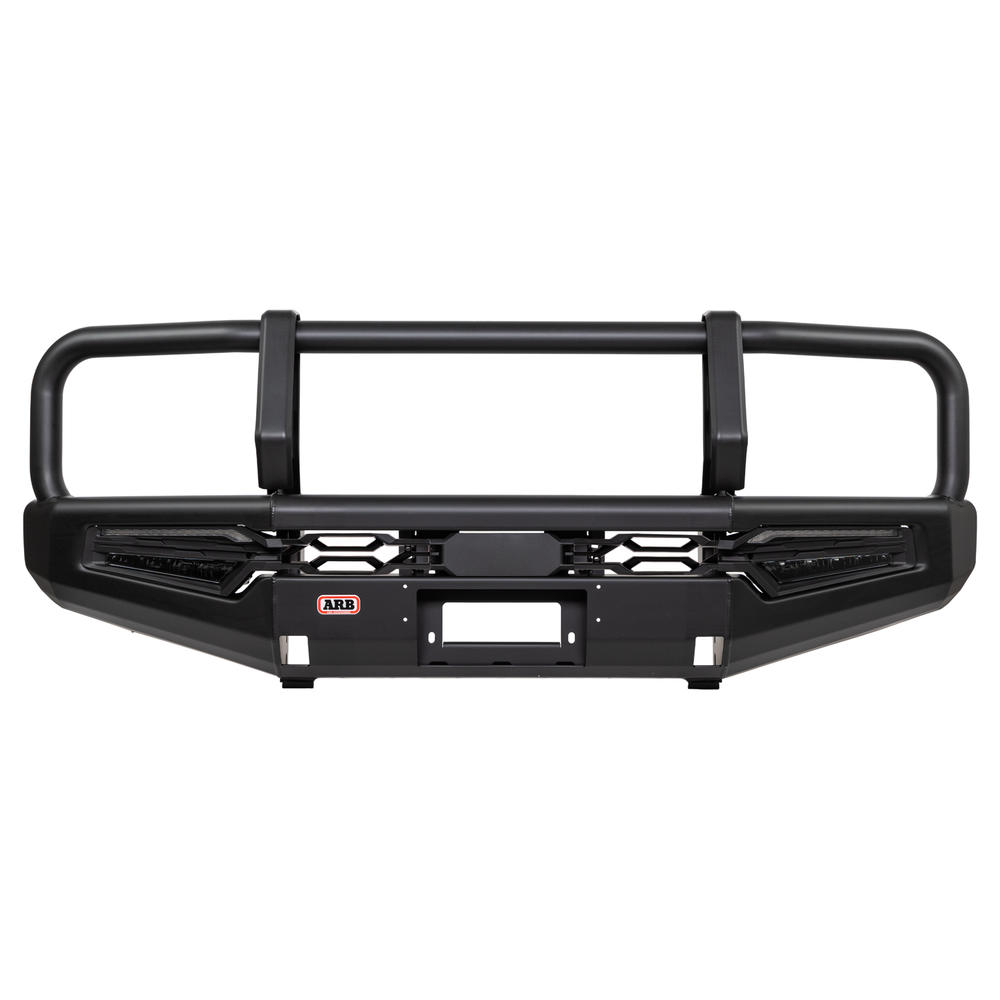

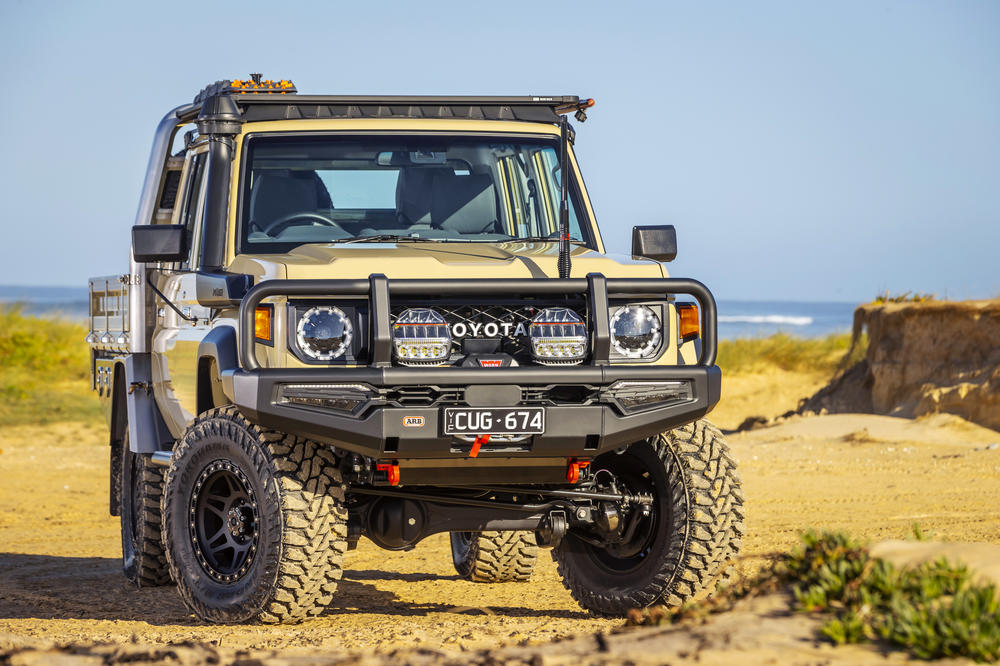

ARB are pleased to announce the release of our industry-leading Summit MKII Bull Bar for the king of off-road vehicles – the new 2024 Toyota LandCruiser 70 Series. Providing unrivalled protection and an array of features, the Summit MKII takes the unforgettable front end of this vehicle to another level. Available for the MY24 Toyota LandCruiser 70 Series Dual-cab, 76 Series Wagon and 78 Series Troop Carrier and has been designed to be fully integrated with Toyota’s Intelligent safety technology better known as Safety sense. The state-of-the-art Summit MKII Bar takes key components of its flagship namesake and kicks It up a notch with an ultra-modern design that’s constructed to turn heads. Summit MKII has eliminated front buffers and now has robot welds on the front face of the bar to highlight ARB’s excellence in sheet metal fabrication. Fog light design has been significantly updated to include a plug and play fog light / sequential indicator / clearance light and Daytime Running Light within one complete unit for an integrated approach to incorporate these requirements on modern vehicles.

FEATURES:

• Vehicle specific design suitable for the Toyota LandCruiser 70 Series (dual cab, 76 wagon, 78 troop Carrier)
• Registered design of styling components
• Durable steel construction for maximum protection
• Incorporates ARB’s renowned multi fold upswept and tapered wing design for optimum strength and approach angle
• 30mm radius on wings and centre section
• 60.3mm outer frames and centre cross tube
• Engineered, air bags compatible mounting system secures to the chassis via high tensile bolts
• Split pan design for maximum strength and airflow
• No under panels provided. Radiator protection panel P/N 3512170
• Press formed top pan and aluminium (powder coated matt black) winch cover panel
• Twin ARB Jack or Hi-Lift jacking points located on lower pan
• Two aerial brackets located on the centre frame
• Optional winch fit kit 3512150 and winch hawse spacer kit 3500605
• Will accommodate Warn, Bushranger, Smittybilt low mount electric winches up to 12,000lbs
• Provision to accommodate ARB Intensity, Intensity IQ and Solis LED’s and a range of Bushranger lights

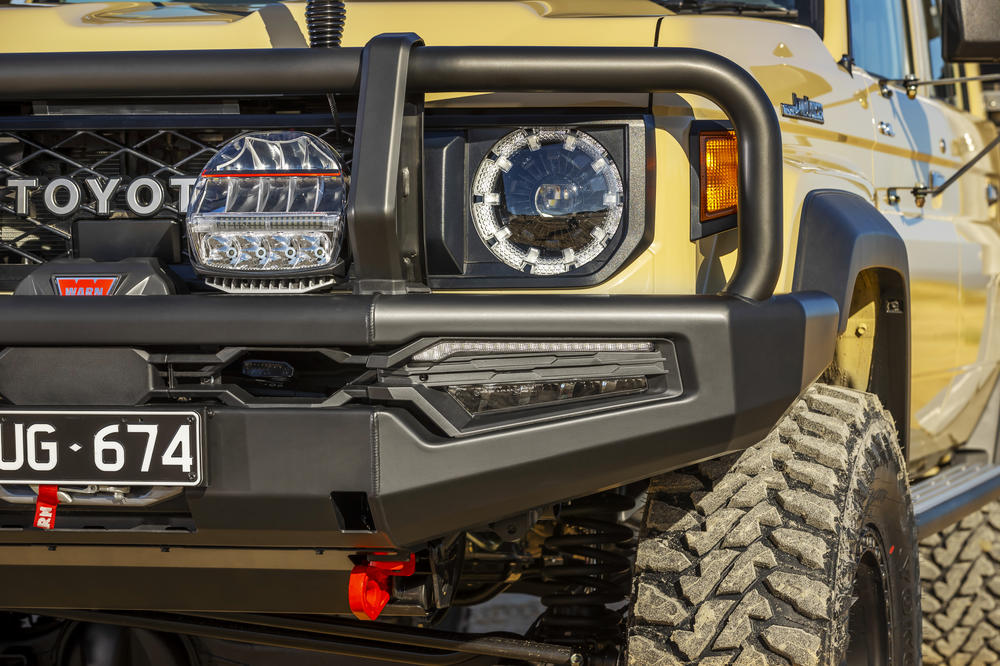

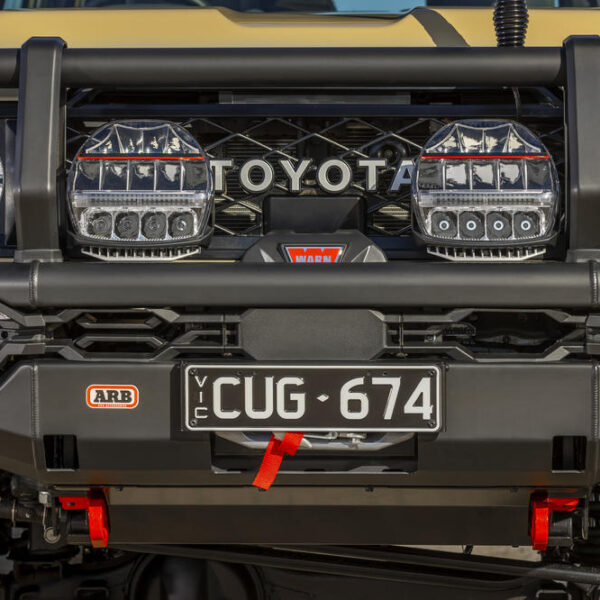

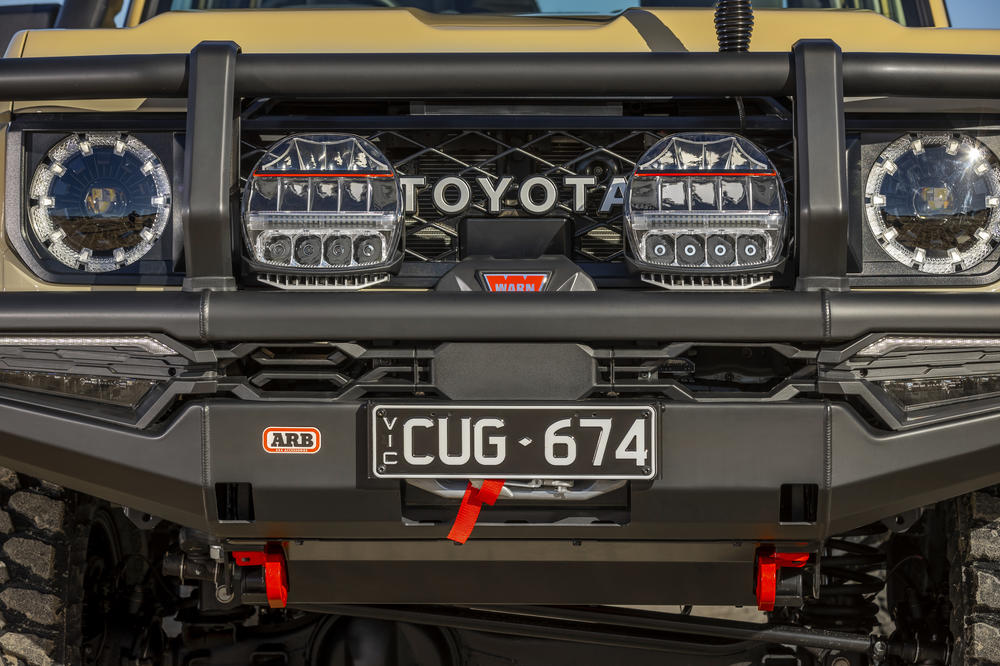

• Includes ARB 4 in one light cluster which includes LED fog light, LED Daytime Running Light and LED indicators and clearance lights
• Compatible with original equipment TSS safety features
• Bar adds approximately 45mm to the overall length of the vehicle
• Approximate weight of the bar and fitting kit is 62kgs
• Approximately 27.5kg is removed from the vehicle for fitment of the bar
• Metaprep primer for additional corrosion resistance
• Finished in matt black powder coat
