SUMMIT COMBAR SUIT Y62 SER5 AF2O 8-12

SUMMIT BULL BAR

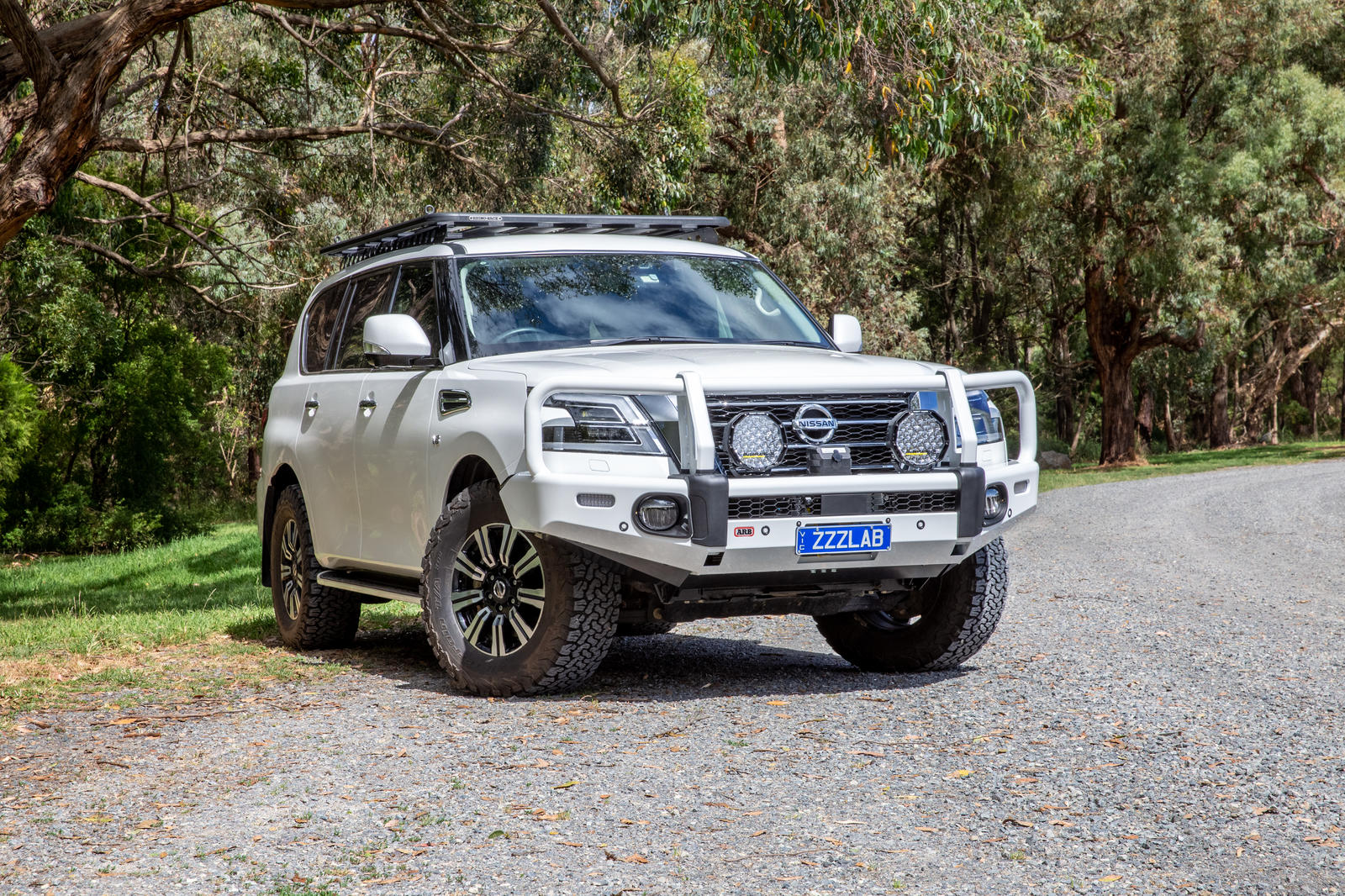

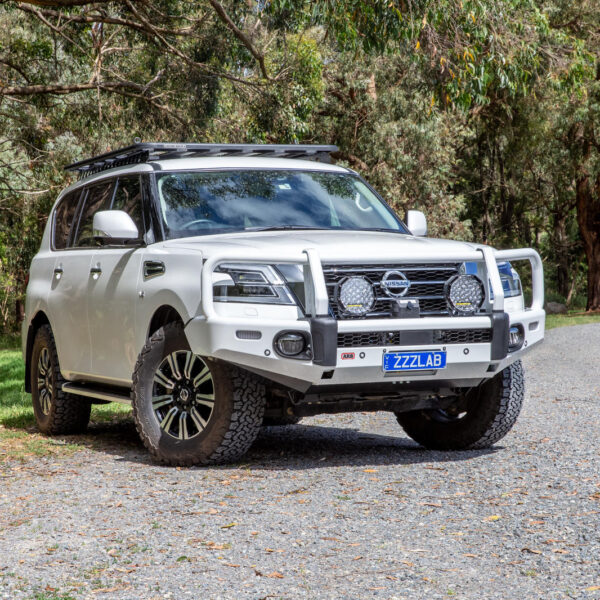

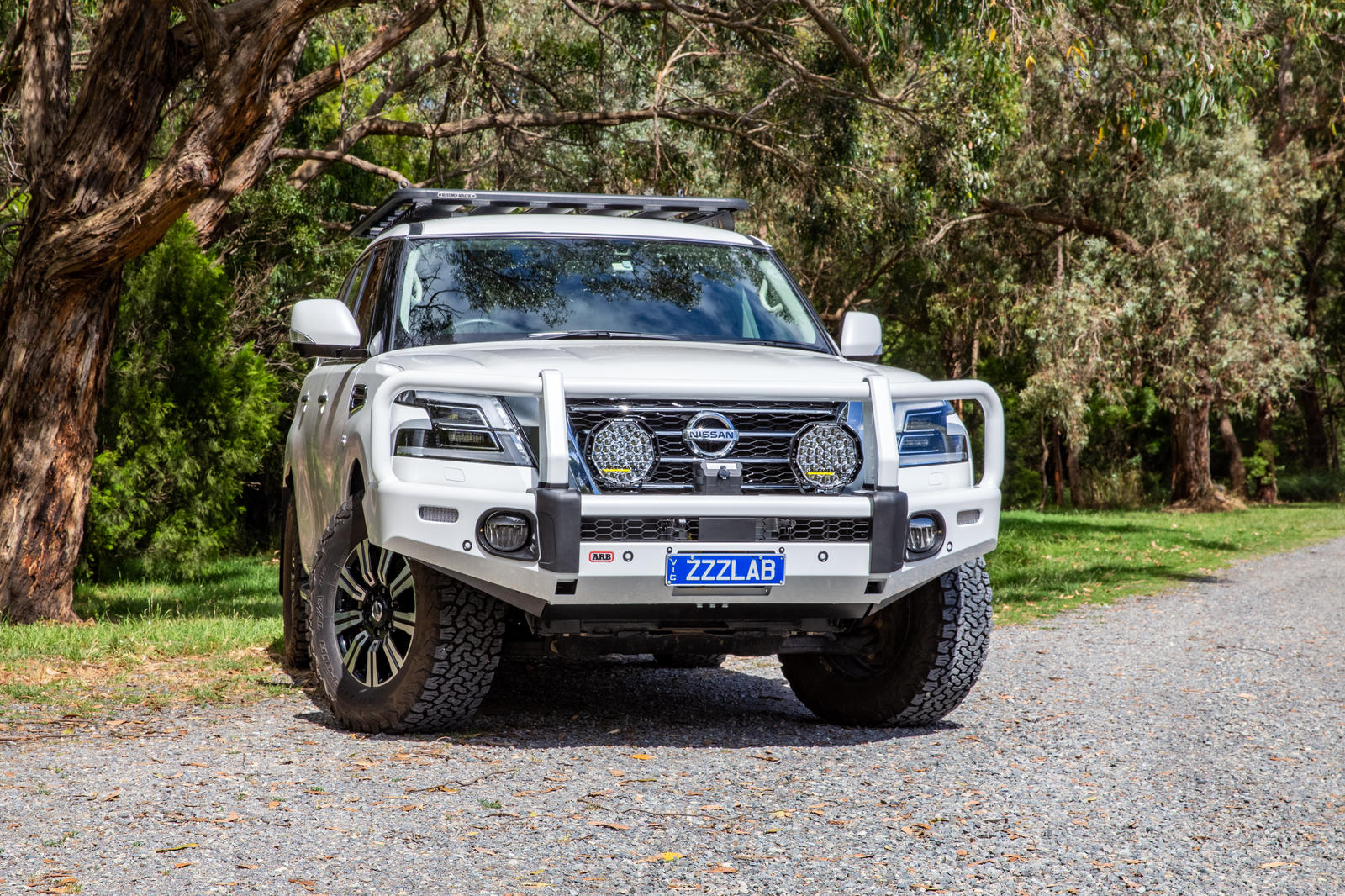

ARB’s eagerly awaited Summit Winch Bar for the Series 5 Y62 is now in production. The newly developed
Summit bar for the Y62 is compatible with both winch fitment and the Intelligent Cruise Control (ICC)
system and suits both the Ti and Ti-L trim specifications.
The Series 5 Y62 shares a number or Safety features across the model range including, but not limited to:

? Front and rear parking sensors
? Intelligent Around-View-® Monitor (AVM) with Moving Object Detection
? Autonomous Emergency Braking (AEB)
? Intelligent Cruise Control (ICC)
? Intelligent Forward Collision Warning (IFCW)
? Lane Departure Warning (LDW) and Intelligent Lane Intervention
? Blind Spot Warning (BSW) and Intelligent Blind Spot Intervention
Whilst previous Y62 bars have been bumper replacements, the Y62 Series 5 ARB bar retains the top section
of bumper to maintain location and operation of the original equipment headlight washers.


FEATURES:

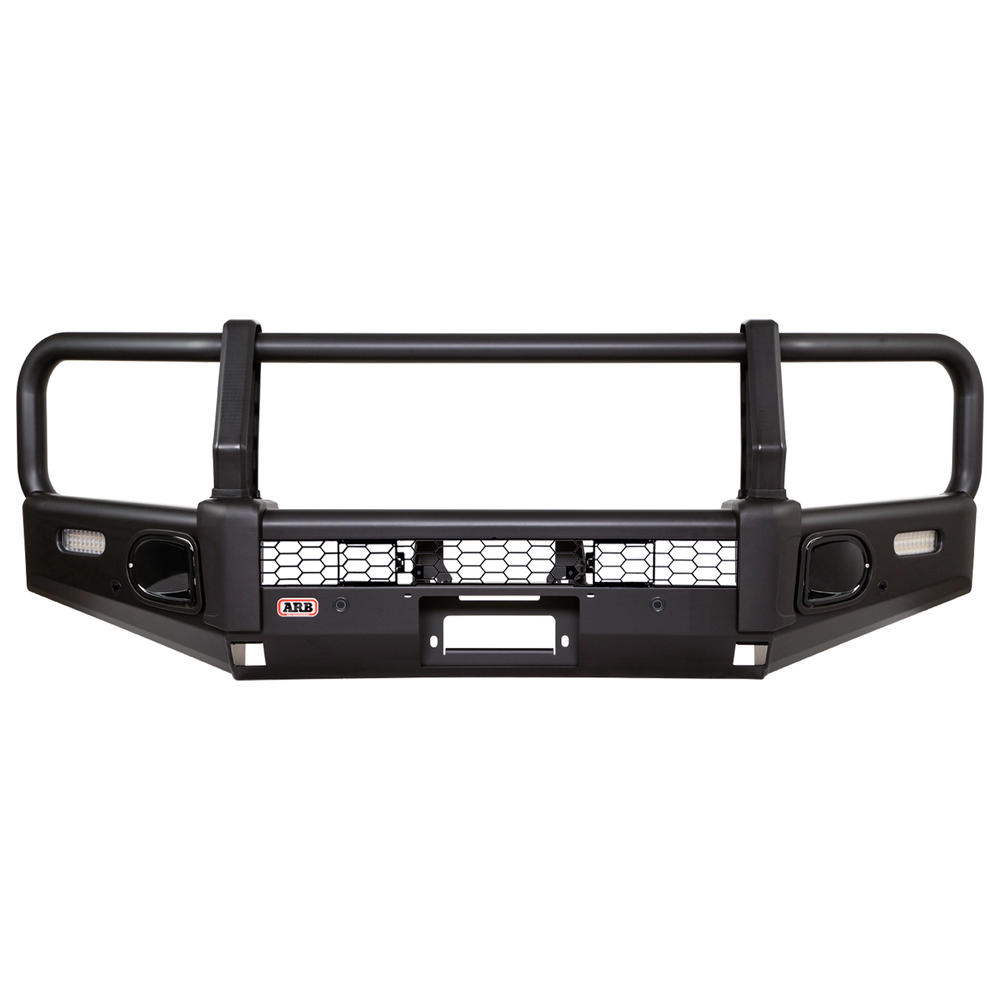

? Summit Winch bar design compatible with both Ti and Ti-L Series 5 Nissan Patrol Y62
? Registered design of styling and design components
? Durable steel construction for maximum protection

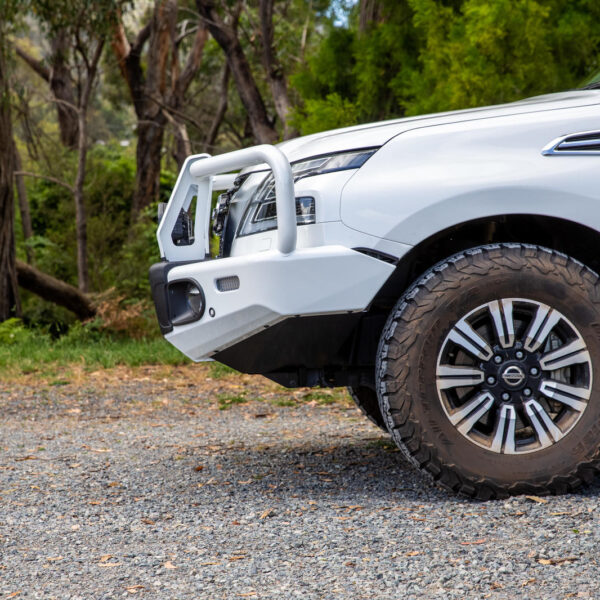

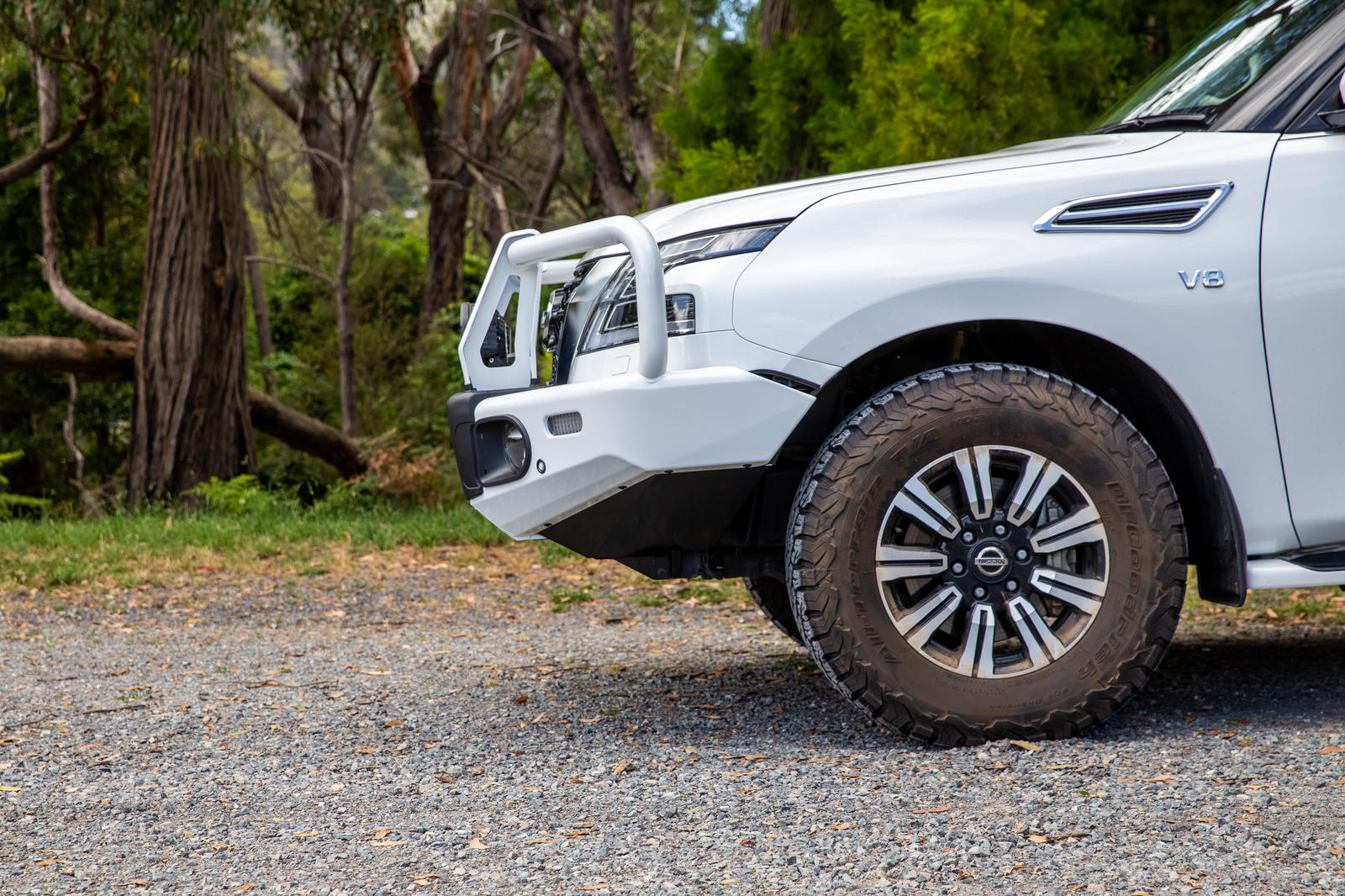

? Incorporates ARB’s renowned multi fold upswept and tapered wing design for optimum strength and
approach angle
? ARB developed, engineered and manufactured airbag compatible mounting system secures to the
chassis with a combination of M8, M10 and M12 fasteners
? 3 piece grill for split pan. Split pan design for maximum strength and airflow
? Extensive protection panels on centre and either side
? Pressed formed top pan and aluminium (powder coated matt black) winch cover panel
? Twin ARB Jack or Hi-Lift jack points located beneath each buffer
? Includes ARB LED Indicator and Clearance light
? Two aerial brackets located on the top of the centre tube
? Will accommodate Warn, Magnum, Bushranger, Smittybilt low mount model electric winches up to
12,000lb
? Winch Roller Fairlead Cover PN 3501080 under development
? Provision for OE parking sensors and Intelligent Cruise Control
? Provision to accommodate ARB Intensity and Solis LED’s and a range of Bushranger lights

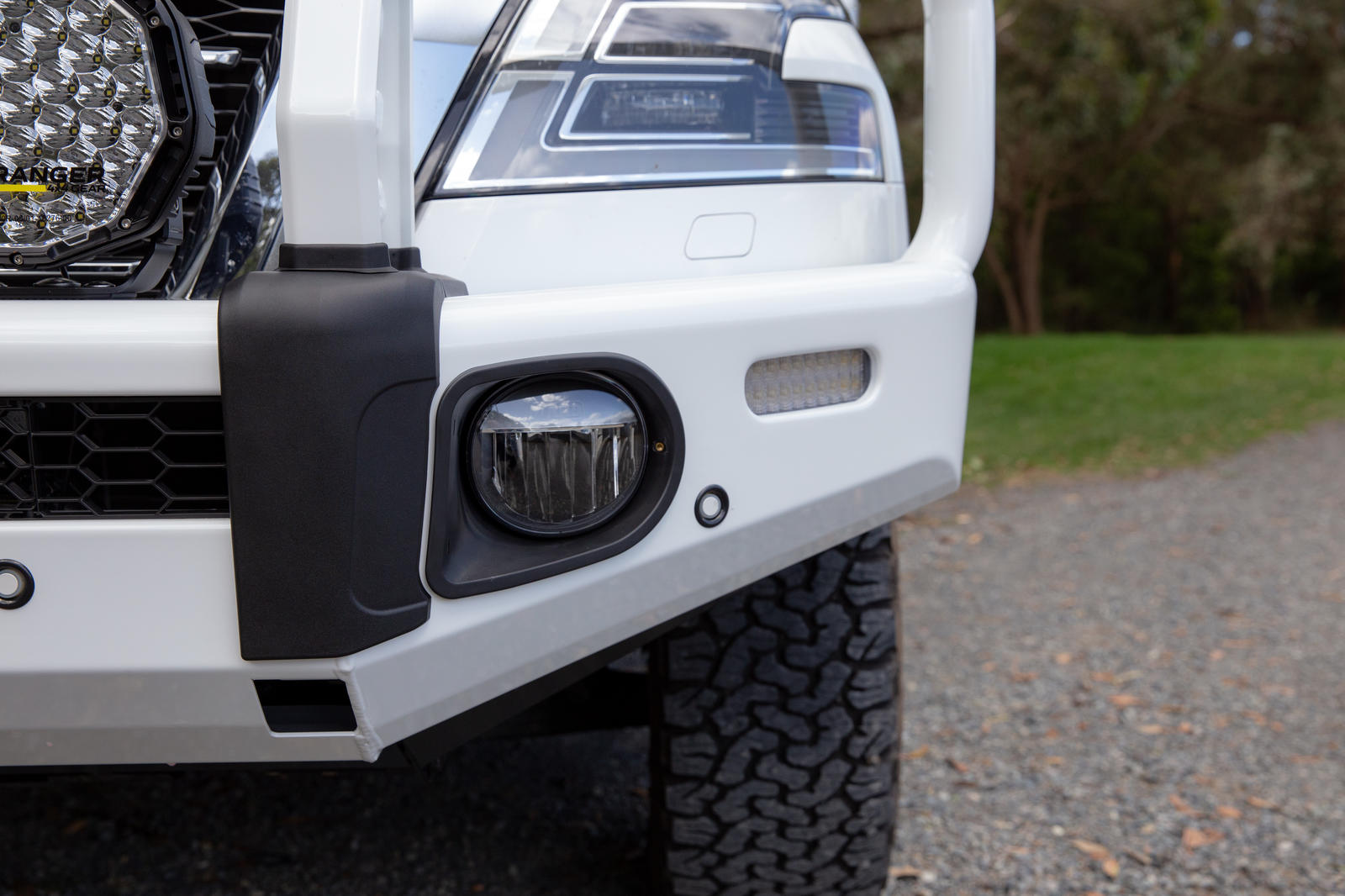

? Provision for optional ARB LED fog light PN 3500910. Refer fog light section below for additional parts
required
? Bar adds approximately 198mm to the overall length of the vehicle
? Approximate weight of the bar, chassis mounts and fitting kit is 99kg. Approximately 18kg is removed
from the vehicle for fitment of the bar
? Metaprep primer for additional corrosion resistance
? Finished in matt black powder coat with the option to colour code to vehicle colour
