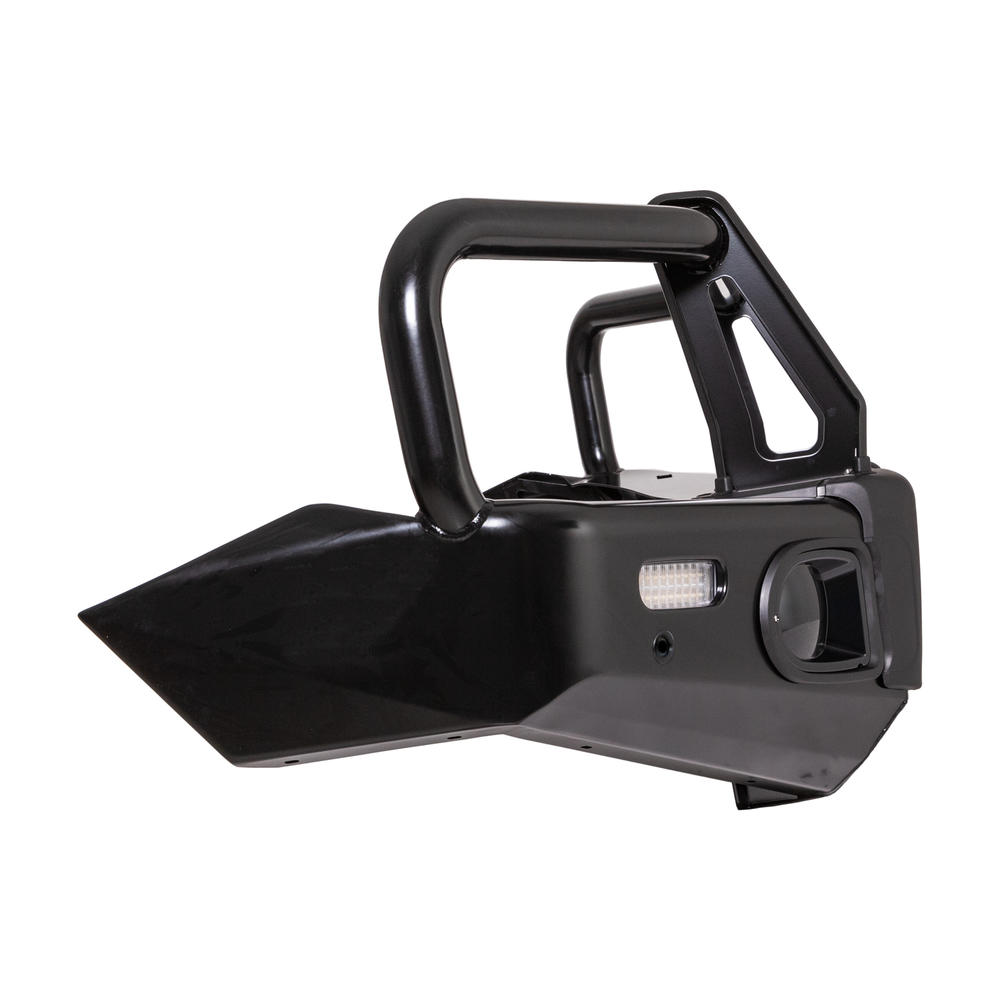

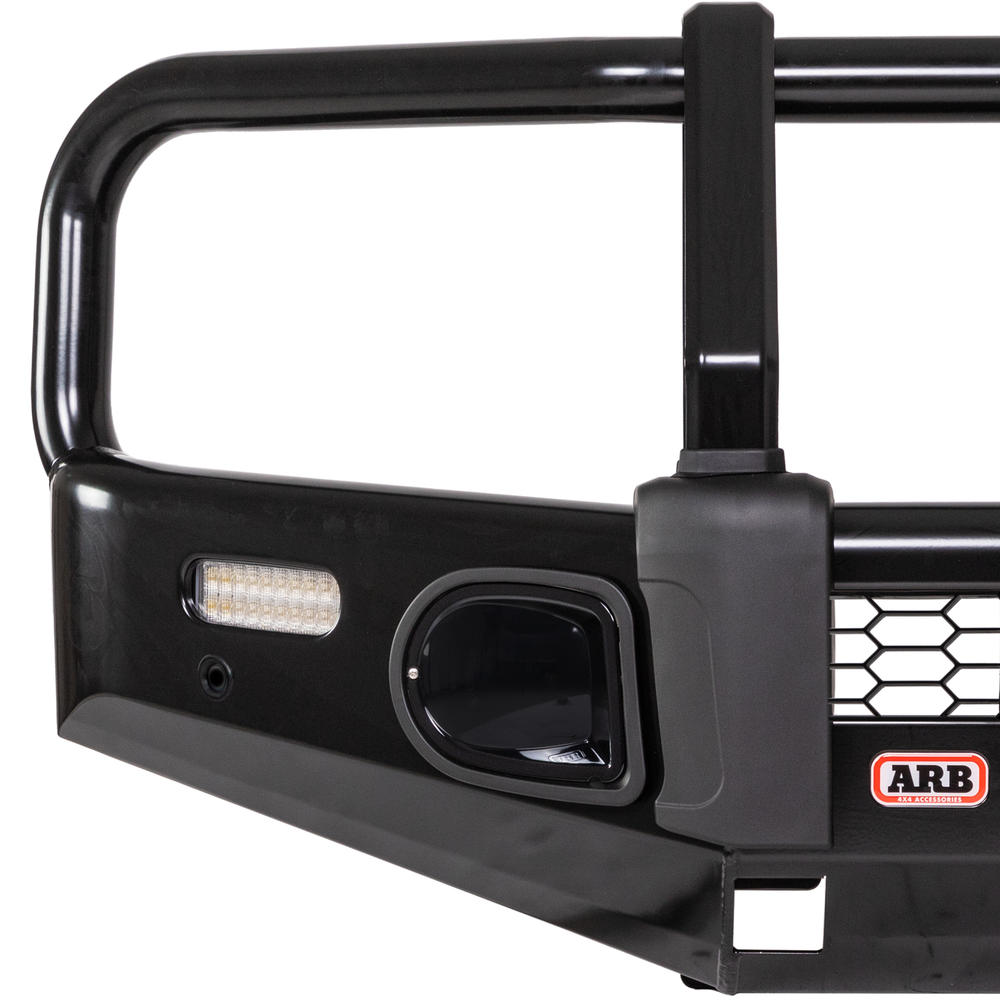

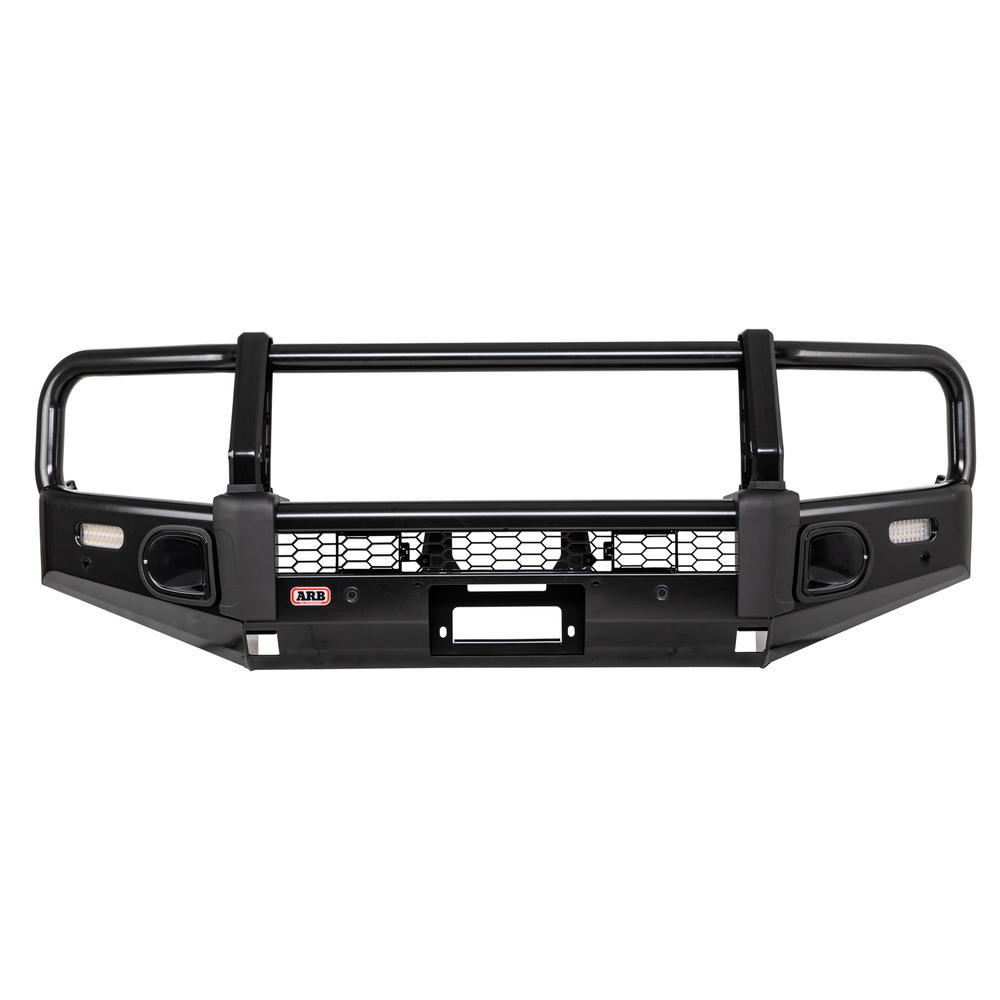

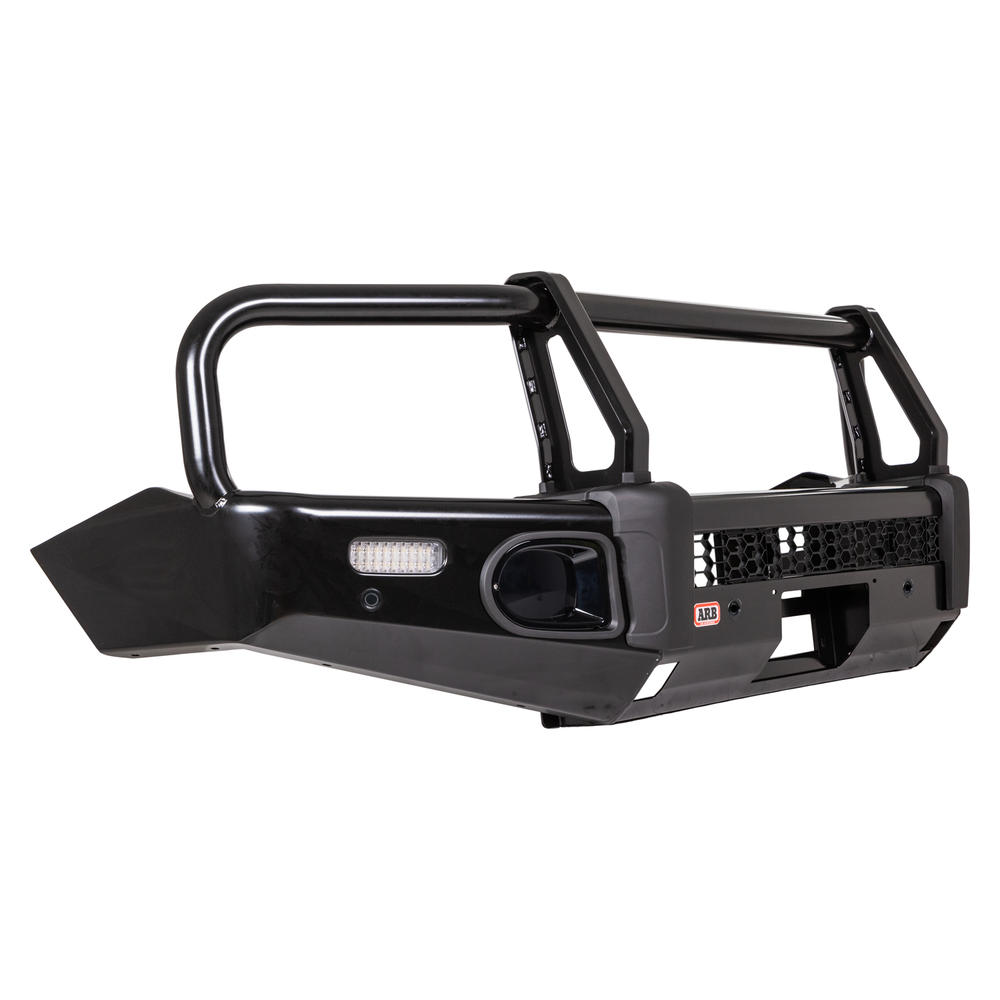

SUMMIT COMBAR SUIT Y62 MY18 AF20 8 -12 (NOT M12)

FEATURES:

• Summit Winch bar design compatible with both Ti and TiL Series 4 Nissan Patrol Y62.
• Registered design of styling and design components.
• Durable steel construction for maximum protection.
• Incorporates ARB’s renowned multi fold upswept and tapered wing design for optimum strength and approach angle.
• 30mm radius on wings and centre section.
• Engineered, air bag compatible mounting system
• 3 piece grill for split pan. Split pan design for maximum strength and airflow.
• Extensive protection panels on centre and either side.
• Pressed form top pan and aluminium (powder coated black) winch cover panel.
• Twin ARB Jack or Hi-Lift jack points located beneath each buffer.
• Durable two piece buffers.
• Includes ARB LED Indicator and Clearance light.
• Two aerial brackets located on the top of the centre tube.
• Will accommodate Warn, Magnum, Bushranger, Smittybilt low mount model electric winches up to 12,000lb (not WARN M12)
• Supplementary winch installation kit required to install winch control box.
• Winch Roller Fairlead Cover 3500855
• Provision to accommodate ARB Intensity LED’s and a range of Bushranger lights.
• Provision for OE parking sensors and Intelligent Cruise Control.
• Provision for optional ARB Fog Lights part no. 3500590 (halogen) or 3500910 (LED). Refer fog light section below for additional parts required.
• Provision for optional ARB Fog light covers part no 3500680.
• Bar adds approximately 190mm to the overall length of the vehicle.
• Approximate weight of the bar, chassis mounts and fitting kit is 95kg. Approximately 16kg is removed from the vehicle for fitment.
• Zinc rich primer for additional corrosion resistance.
• Finished in satin black powder coat with the option to colour code to vehicle colour.
