SUMMIT COMBAR SUIT PAJEROSPORT 2020 ON QF AF2O 8-10

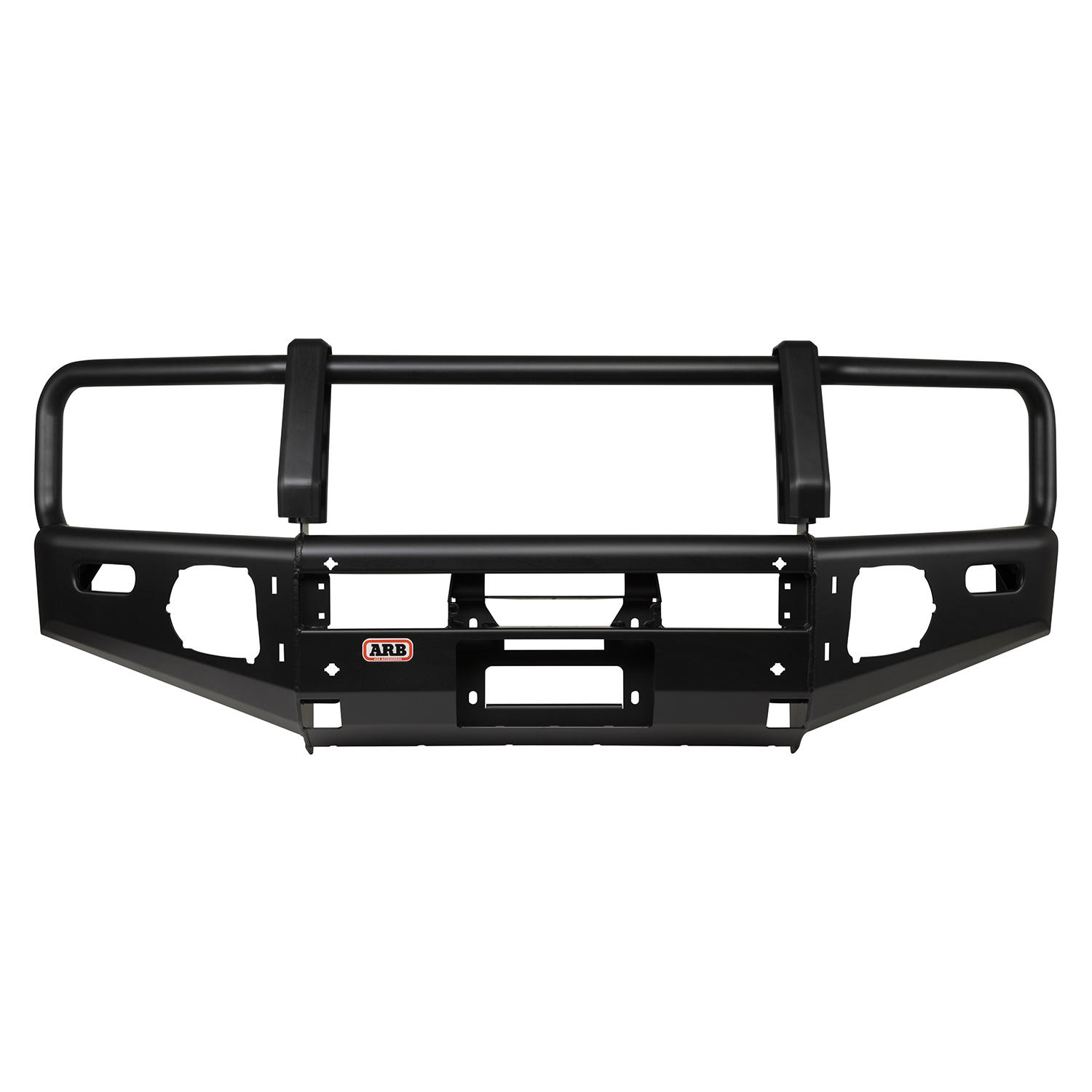

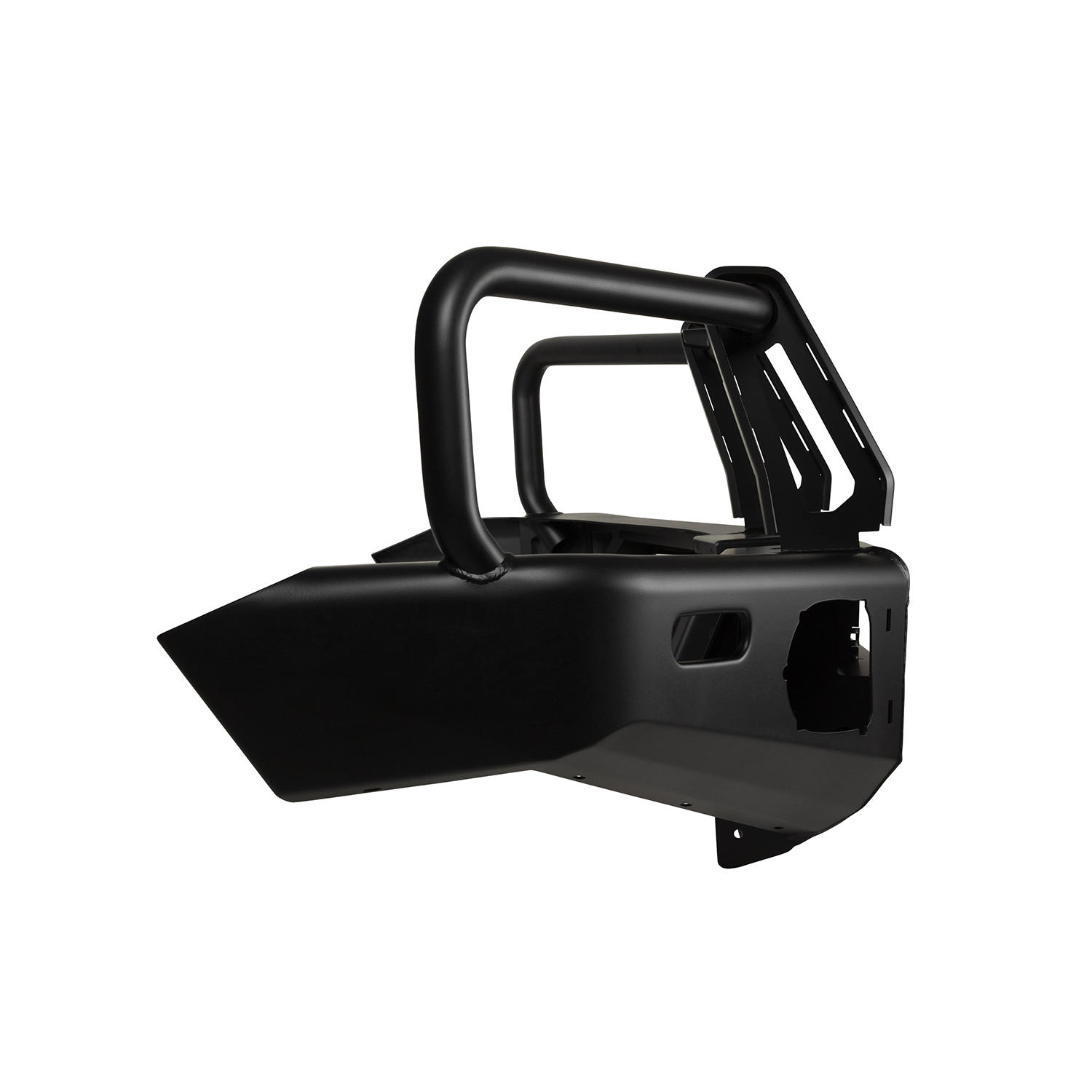

SUMMIT BULL BAR

The Summit bull bar builds on the renowned ARB Deluxe bar architecture, and integrates a fresh and contemporary design language to complement modern vehicles.

Summit bars are winch compatible and provide next generation protection and styling for your vehicle. Laser cut holes for mounting ARB Intensity LED and Bushranger driving lights are integrated into the top pan of the bar, while ARB’s LED, indicator and clearance light assembly is included as standard.

Supplied in a durable black powdercoat finish, colour coding is available as an option for a fully integrated look.

FEATURES

• Vehicle specific design suitable for the GLX and GLS non sensor Mitsubishi Pajero Sport.
• Durable steel construction for maximum protection
• Incorporates ARB’s renowned multi-fold upswept and tapered wing design for optimum strength and approach angle
• 30mm edge radius on wings and centre section
• Superbly engineered, air bag compatible mounting system secures to chassis via high tensile bolts and hardware
• Split pan design for maximum strength and airflow
• Two piece grille design for split pan
• Extensive protection panels on centre and either side, the centre panel includes additional laser cut holes for additional airflow
• 47.6mm outer tubing and centre cross bar
• Formed cover straps
• Pressed top pan and winch cover panel
• Combination style bar to suit both winch and non winch applications
• Includes provision for OE front parking sensors and semi auto active park assist. Blanking plugs supplied if no OE parking sensors are fitted
• Twin Hi-Lift jack points located below each buffer for optimum strength
• Durable two piece buffers including cover strap intersection caps
• Will accommodate Warn, Magnum, Bushranger and Smittybilt low mount model electric winches up to 10,000lb
• Provision for ARB fog lights . Refer fog light section below for additional parts required.
• Provision for optional ARB Fog light covers part no 3500680.
•  Provision for Optional Summit Roller Fairlead Cover part no 3501070.
• Bar adds approximately 220mm to the overall length of the vehicle.
• Approximate weight of the bar, chassis mounts and fitting kit is 92kg. Approximately 9kg is
  removed from the vehicle for fitment of the bar.
•  Metaprep primer for additional corrosion resistance.
•  Finished in matt black powder coat with the option to colour code to vehicle colour.
