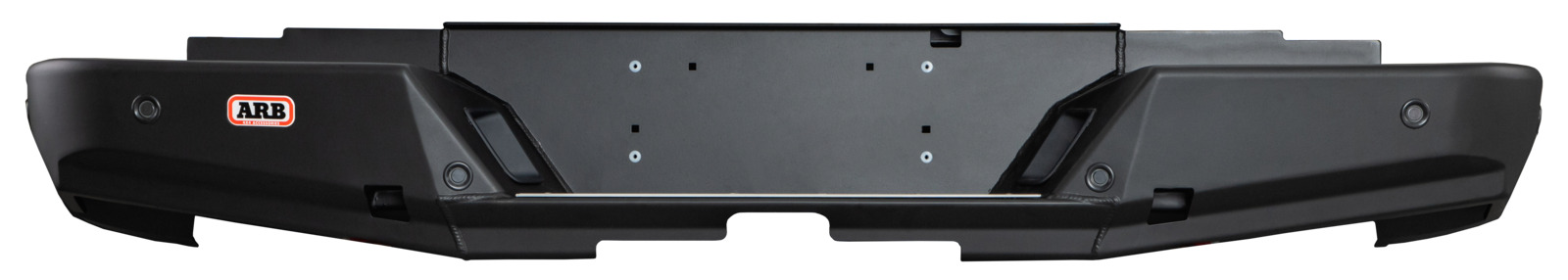

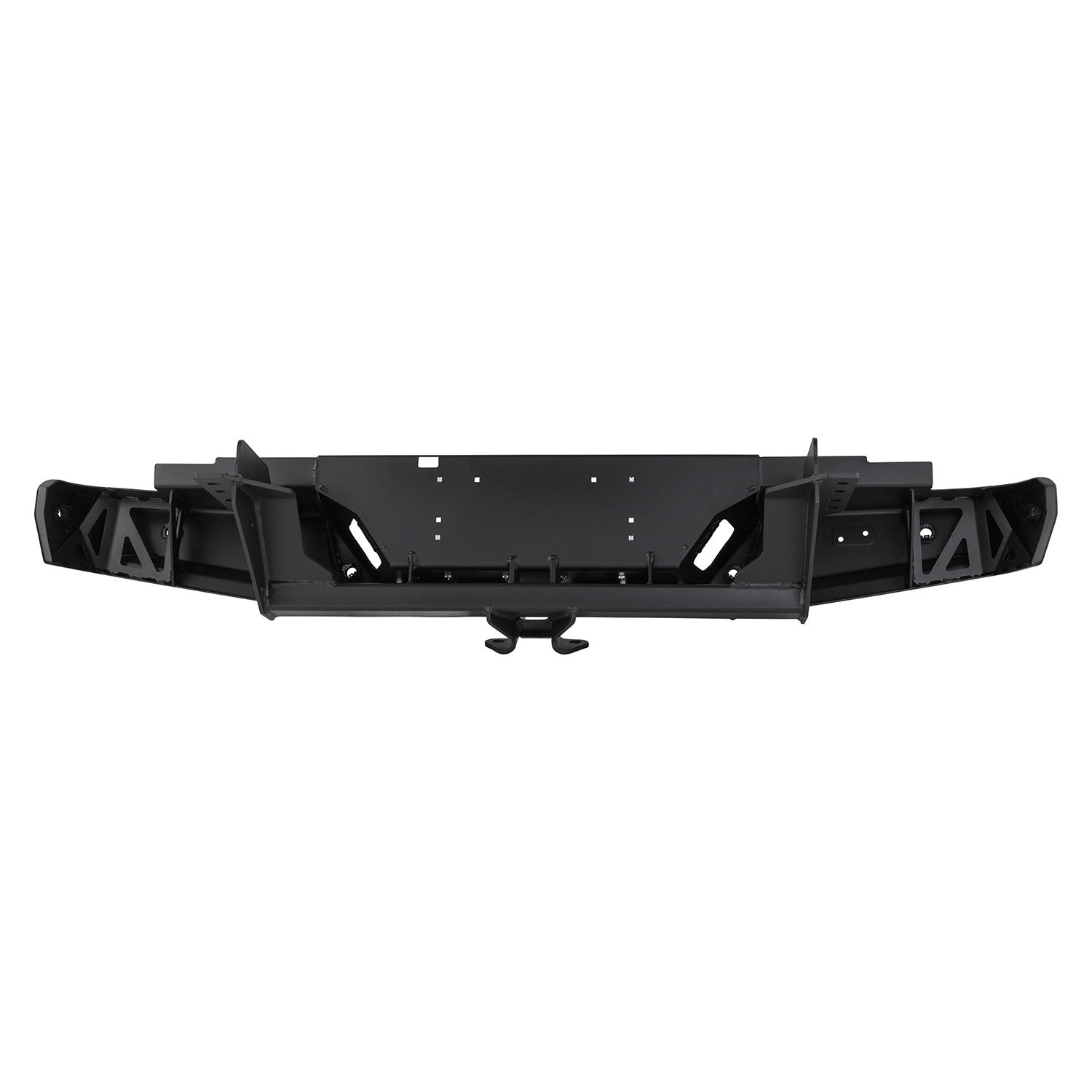

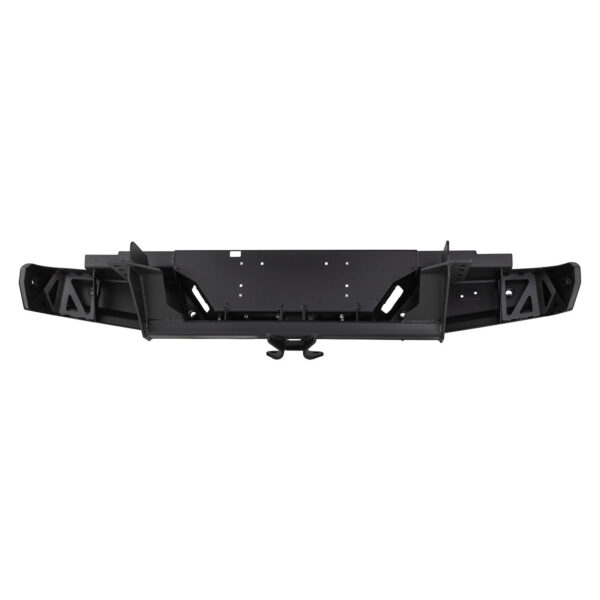

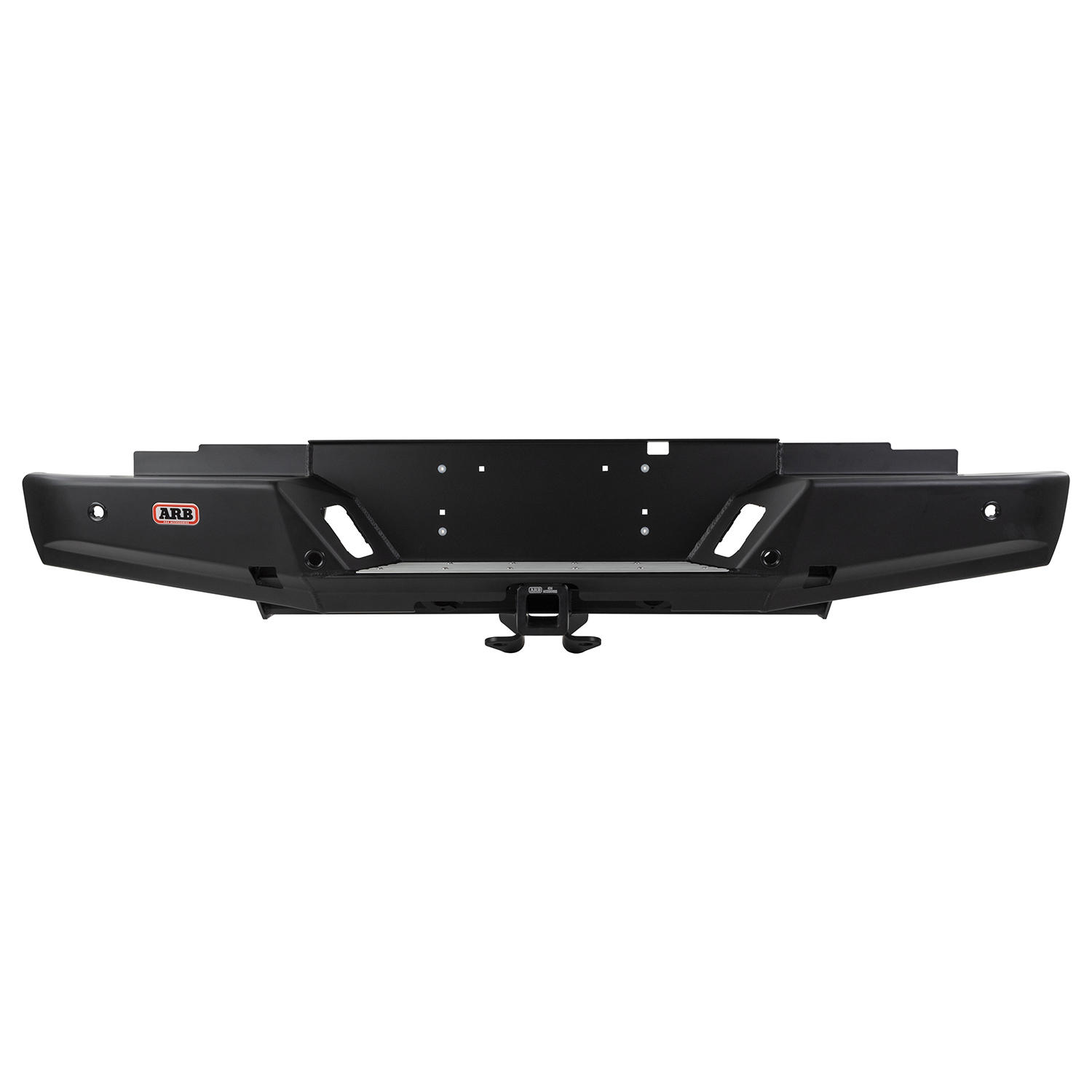

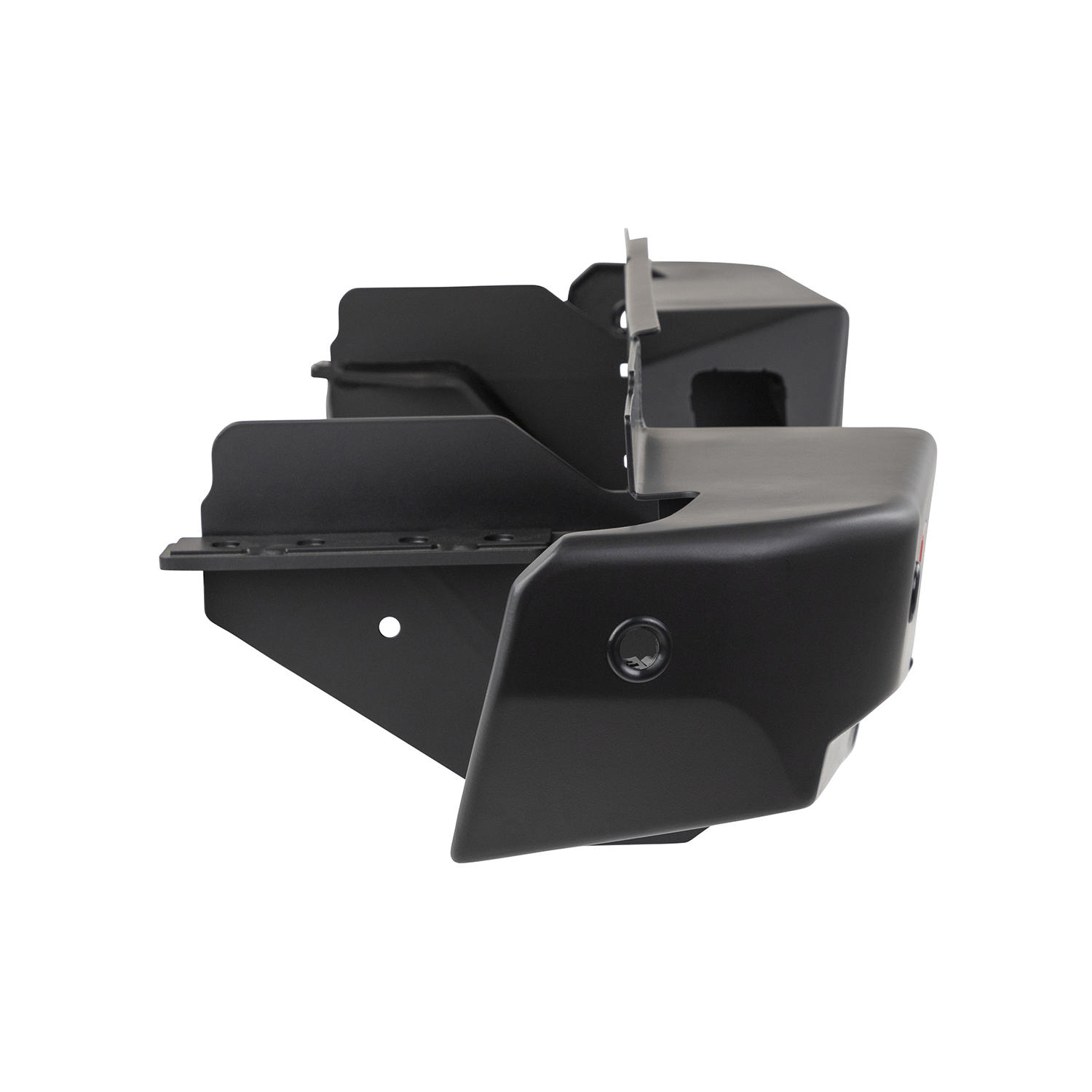

REAR BAR SUIT MY22 RANGER

ARB REAR BAR

To complement the MY22 Ford Ranger an ARB Rear Bar has been developed to work with the original equipment lower tub step and provide valuable rear protection.

Optional lower tub protection and rear 8T rated recovery points have been developed to ensure the rear bar offers protection and practicality.


FEATURES:

• Vehicle specific design suitable for the MY22 Ford Ranger dual cab with tub.
• Durable steel construction for maximum protection.
• Rear bar structure manufactured from:
  • 3mm laser cut and folded sheet metal
  • 75x50x6mm 350 grade cross member
  • 6mm 350 grade chassis plates
• Retains OE license plate lights.
• Compatible with OE rear parking sensors.
• Compatible with OE side tub steps.
• Compatible with OE trailer wiring or ARB trailer wiring (refer section below).
• Provision for 50amp Anderson Plug, ARB Trailer Camera kit and ARB Air Compressor outlet.
• Twin ARB Jack or Hi-Lift jack points located in the rear bar.
• Anodised aliminium top tread plate.
• 3.5t Class 4 tow hitch
• Optional 8T recovery points (PN 2840080).
• Optional lower tube protection tube kit (PN 5740210) which includes 8T rated recovery points.
• Bar adds approximately 20mm (excluding towbar tongue) to the overall length of the vehicle.
• Approximate weight of the bar, chassis mounts and fitting kit is 49kg. Approximately 47kg is removed from the vehicle for fitment of the bar.
• Approximate weight of optional Lower Tube Kit PN 5740210 is 31kg.
• Approximate weight of optional rear Recovery Points PN 2840080 is 4.5kg.
• Metaprep primer for additional corrosion resistance.
• Finished in matt black powder coat with the option to colour code to vehicle colour.
