REAR BAR SUIT MY20 DMAX OPT 5748010

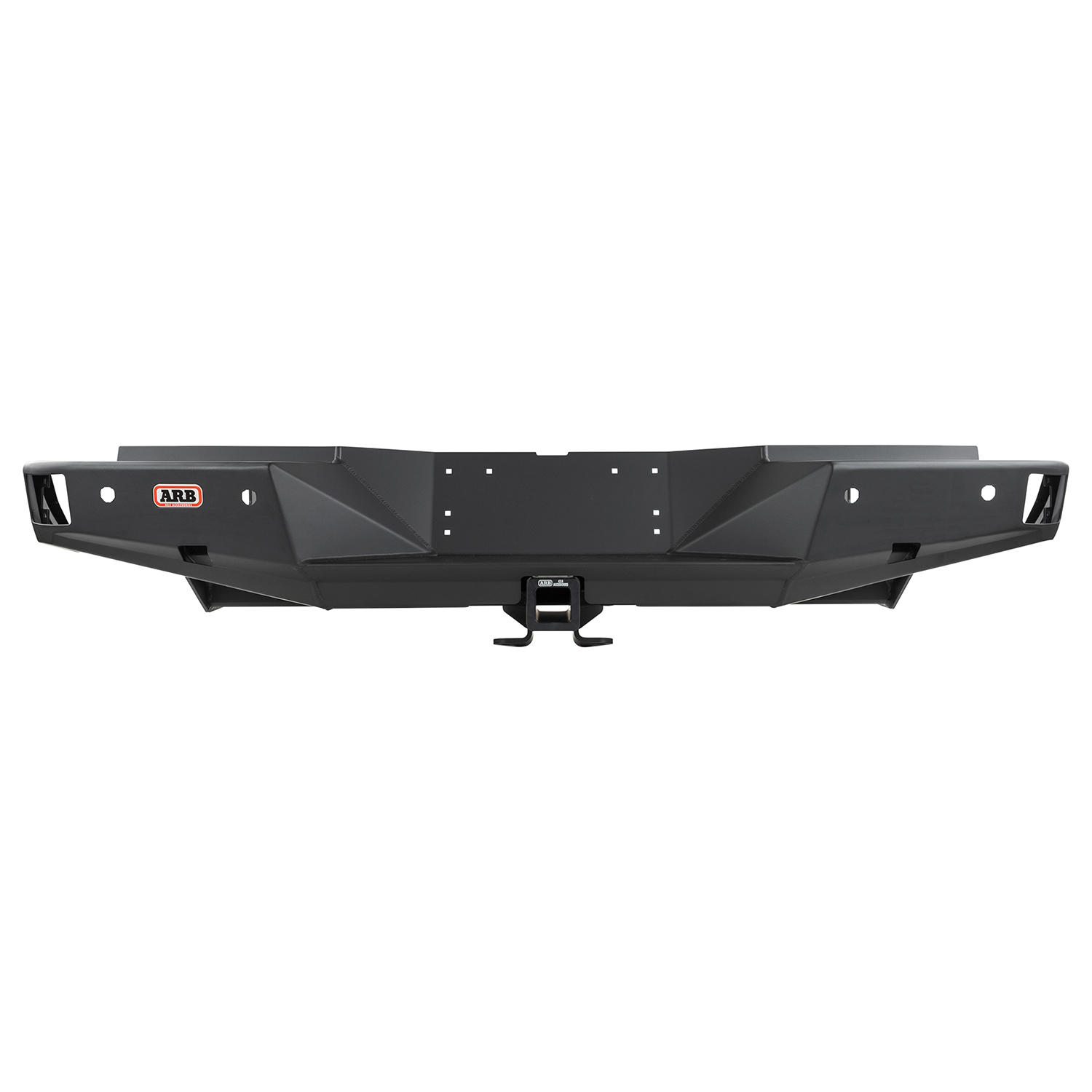

SUMMIT MKII REAR STEP TOW BAR

OVERVIEW

ARB is pleased to release the latest update of the Summit MKII Rear Step Tow Bar for the MY21 Isuzu DMAX. The recently updated design works flawlessly with the original equipment tub body and provides valuable rear protection. Optional lower tub protection tube kit has been developed to ensure the Rear Step Tow Bar offers the ultimate protection and practicality without compromising style.

FEATURES & BENEFITS

• Vehicle specific design suitable for the MY21 Isuzu dual cab with tub.
• Durable steel construction for maximum protection
• Rear Step Tow Bar structure manufactured from:
  • 3mm laser cut and folded sheet metal.
  • 100x50x6mm 350 grade cross member.

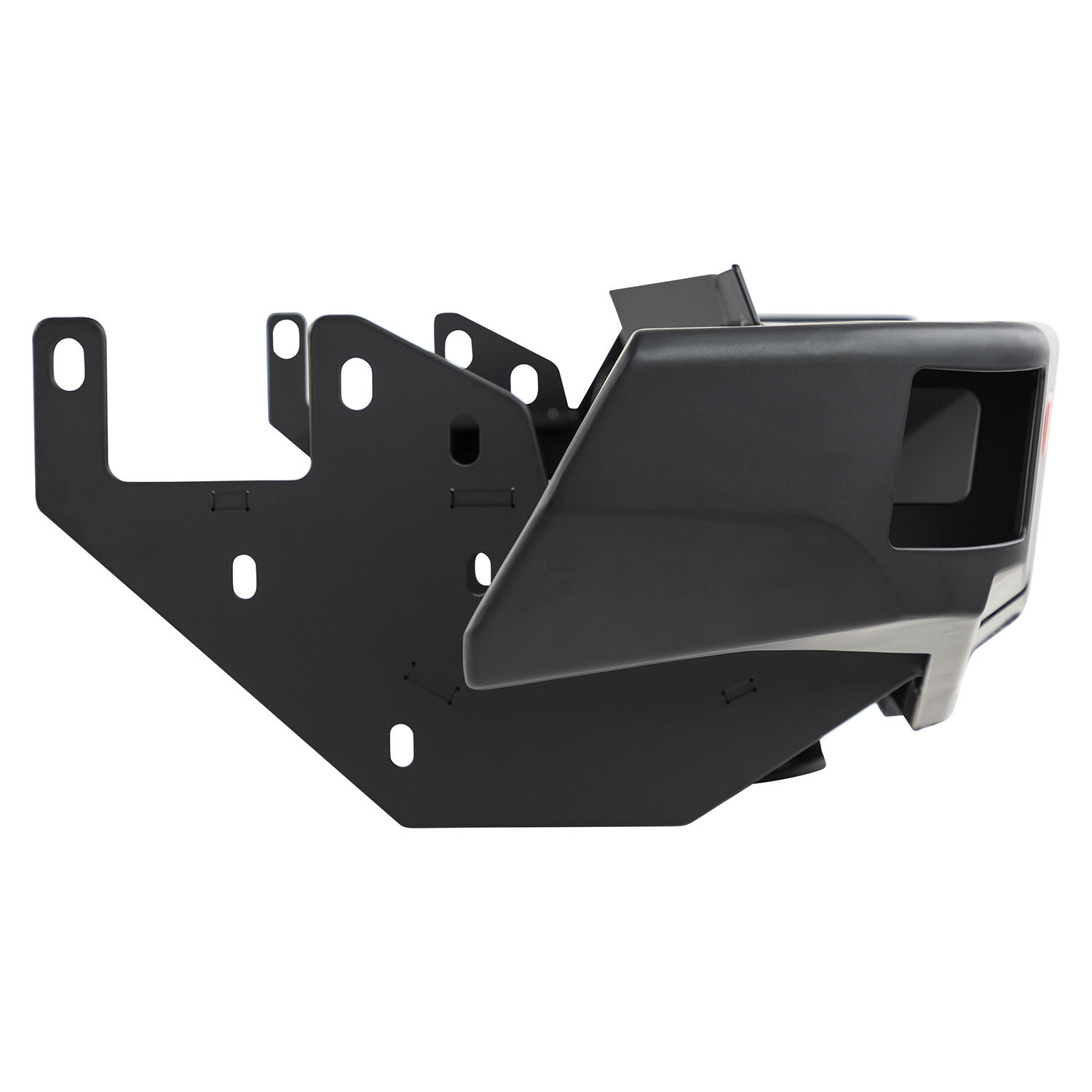

  • 6mm 350 grade chassis plates
• Retains OE license plate lights.
• Compatible with OE rear parking sensors.
• Compatible with RCTA (Rear Cross Traffic Alert System).
• Compatible with OE trailer wiring or ARB trailer wiring, plug n play loom supplied with 7 pin flat.
• Provision for 50amp Anderson plug, ARB Trailer Camera Kit and ARB Air Compressor outlet.
• Twin ARB Jack or Hi-Lift Jack points located in the Rear Step Tow Bar.
• Anodised aluminium top tread plate.
• 3.5T class 4 tow hitch.
• Optional Lower Protection Tube Kit (PN 5748010).
• Bar adds approximately 20mm (excluding towbar tongue) to the overall length of the vehicle.
• Approximate weight of the bar, chassis mounts and fitting kit is 51kg
• Approximately 16kg is removed from the vehicle for fitment of the bar, and an additional 34kg If vehicle Is fitted with OE towbar.
• Metaprep primer applied for additional corrosion resistance.
• Finished in matt black powder coat with the option to colour code to vehicle colour.
