Kit paire longues portées à leds ARB Solis 21 – faisceaux combinés – homologués route

Le kit de 2 phares LED ARB Intensity Solis 21 faisceau combiné est une solution d’éclairage moderne et évolutive, pensée pour une utilisation sur route et en tout-terrain. Grâce à sa conception combinée Spot/Flood, ce modèle offre un excellent équilibre entre portée longue distance et éclairage périphérique, pour une visibilité maîtrisée dans toutes les conditions de conduite. Homologués E-mark (réglementation UNECE R149), les feux peuvent être utilisés légalement sur la route en Europe. En mode route, ils délivrent 2 700 lumens effectifs avec une portée de 426 m à 1 lux. En mode tout-terrain, ils atteignent jusqu’à 6 000 lumens pour une portée de 620 m avec un seul feu, et 877 m en configuration double.

Le système de variation à 5 niveaux (via pavé tactile inclus) permet d’adapter l’intensité lumineuse selon le mode choisi. Les niveaux 5 % à 50 % sont conformes à la législation route, tandis que les niveaux 75 % et 100 % sont exclusivement réservés à une utilisation offroad. Ce kit s’adresse aux amateurs de 4×4 ou van souhaitant un éclairage performant pour les trajets nocturnes tout en respectant les normes légales en circulation. Grâce à son design polyvalent, ses optiques interchangeables et son contrôle précis de l’intensité, il s’adapte parfaitement aux environnements routiers comme aux terrains les plus exigeants.

Caractéristiques :

– Vendu par paire, kit complet

– Dimensions d’un feu : 192 mm (L) x 190 mm (H) x 114 mm (P)

– Technologie LED OSRAM : 15 x 4W + 6 x 5W par feu

– Température de couleur : 5 700 K (plus chaude pour réduire la fatigue visuelle)

– Faisceau combiné (spot + flood) :
Mode route (niveau 3) : 426 m à 1 lux – 2 700 lumens
Mode tout-terrain (niveau 5) : 620 m à 1 lux – 6 000 lumens
Double configuration : jusqu’à 877 m à 1 lux (offroad)

– Consommation :
Route : 36 W / 2,7 A à 13,2 V
Offroad : 82 W / 6,2 A à 13,2 V

– Indice de protection : IP68 (étanche à l’eau et à la poussière)

– Structure :
Corps en aluminium moulé sous pression
Finition poudrée résistante aux UV
Circuits imprimés noirs pour un effet de profondeur visuel

– Pavé tactile :
5 niveaux : 5 %, 25 %, 50 %, 75 %, 100 %
Modes différenciés : route (blanc) / tout-terrain (rouge)
Commande intuitive avec retour visuel LED
Housse en silicone incluse

Contenu du kit :

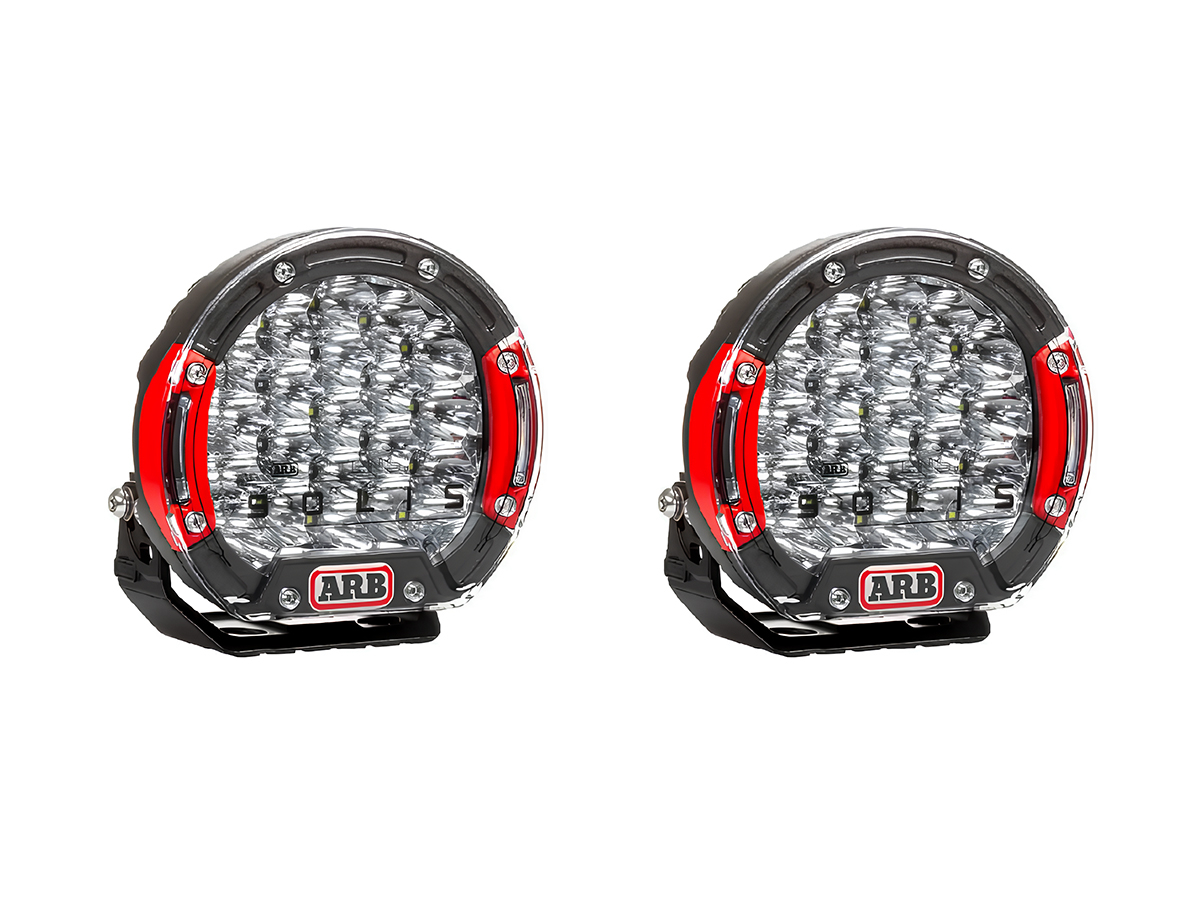

– 2 x projecteurs LED Intensity Solis 21
– 2 x supports aluminium multi-positions
– 2 x couvercles transparents (couvercles ambre ou noirs en option)
– 2 x lunettes rouges + 2 x lunettes noires interchangeables
– 1 x faisceau électrique complet Plug & Play
– 1 x pavé tactile de commande
– Kit de montage complet

ARB INTENSITY SOLIS – FLOOD/SPOT COMBO

Incorporating new in house engineered and designed optics partnered with OSRAM LED technology and styling updates, the ARB Intensity Solis?„? has pushed the limits of driving light technology once again and produced a uniquely designed, feature packed and highly capable driving light and now in a smaller version.

Offered in a dedicated spot or flood optic and including optional coloured (Red/Black) bezel inserts, the ARB Intensity Solis?„? driving lights are packed full of new features that will surely please all in the market. This is only the start, with a high-pressure die cast bracket providing a rock-solid foundation for mounting this beast of a light and a digitally controlled touchpad that controls dimming of the high-powered LEDs, this is the foundation of something special.

ARB Intensity Solis?„? has been built from the ground up, fully in-house at ARB headquarters in Melbourne, with performance front of mind whilst ensuring styling and design complement the range of vehicles and bar work in the market.
The ARB Intensity Solis?„? includes a unique digital dimmer control. Pre-set brightness settings have been hard programmed into the controller to enhance your driving experience. Using modern styling lines and designs, the controller has been kept as small as possible to provide a seamless fit and finish to modern dashboards. If you want to keep it completely clean, the ARB Intensity Solis?„? can be fully integrated with the ARB Linx system to provide complete control over your Intensity Solis?„? lighting system with the use of the optional Linx controller harness.  Don’t want dimming we got covered as well with an optional switch override loom sold as an optional accessory.

Providing simple installation, the ARB Intensity Solis?„? has a plug and play harness which includes
H4 and HB3 connectors to quickly and simply connect into most vehicle lighting systems.  One 4 pin connector on the rear of each ARB Intensity Solis?„? keeps one cable per light to improve cable management on your vehicle.

Thermal management for controlling the temperature created by LED’s has always been a premium feature of the ARB Intensity. Never compromising on quality, intelligent active thermal management for the light is included and has been optimised by our engineers. Cooling is maximised further via the die cast aluminium body which acts as a massive heat sink and allows the efficient dissipation of heat from the light housing to keep the LED’s running at maximum performance. ARB Intensity lights are designed to maximise the output in all driving conditions and provide an increased life expectancy of the light compared with cheaper lighting options in the market.

Distance at 1 lux is the most widely used method of measuring driving lights performance, and ARB Intensity Solis?„? lights throw a great distance down the road. A single ARB Intensity Solis?„? Spot 21 provides 835m @ 1 Lux which is a 25% increase in light performance over the current ARB intensity V2 spec while the single ARB Intensity Solis?„? Flood provides 620m @ 1 lux with up to 36m spread from the vehicle. As well as distance updates to a warmer light colour help to reduce eye strain over long driving periods and improves driver comfort while assisting to reduce fatigue.

In dual spot configuration, the distance down the road is a very competitive 1181m @ 1 lux and in a spot & flood configuration it’s an impressive 1020m @ 1 lux, but distance down the road is not everything and beam quality is where it’s at. The ARB Intensity Solis?„? has had its optics designed fully in house by our engineers. Many months were spent by the engineers designing and refining an optic that captures the most amount of light, removes flat spots on the optic face and controls the beam into the right area to reduce stray light and maximise the potential of each LED.

Refining and updating the look of the ARB Intensity Solis?„? Driving lights, included adding black PCB boards to create a deep look into the lights and a more appealing visual appearance, further work has gone into improving the overall design of the ARB Intensity Solis?„? with interchangeable bezels included with the light that can be changed easily by the customer. Colours featured are the iconic ARB red and also black for that stealth look on the front of the vehicle. Also complementing the look is optional amber & solid black covers. Clear covers are also available as spares when required.

ARB Linx integration is ready to go with the ARB Intensity Solis range.  The customer will only need to purchase a patch lead (SJBLINX) that is simple to install and then set up the new light and its features within the LINX system.  Linx Features include custom pre-sets, infinite dimming control, courtesy light feature and dedicated Solis’s icons and function.

The ARB Intensity Solis?„? 21 is a welcomed extension to the range of iconic Australian driving lights. It produces, clean, crisp light with refined colour temperature to reduce eye strain and fatigue on long-distance driving. It will reach amazing distances down the road to improve driving safety on our long vast highways. With the new updates to the ARB Intensity Solis?„? driving lights, the spot and flood combination is an excellent choice to provide good lighting for distance as well as width. Continuing a tradition of never compromising, superior grade LEDs and electronics, first-class ARB active thermal management, new grades of paint finish for the bezels, and optimised LEDs and optic configurations, the ARB Intensity range of lights continue to sets new standards in vehicle lighting.


FEATURES:

• LEDs @ 50,000-hour lifespan
  • 15 x four-watt high-powered
    OSRAM-® LEDs
  • 6 x five-watt high powered
    OSRAM-® LEDs
• Voltage range 10V to 30V
• Power Drawer 80W @ 6.2A @ 13.2V
• Raw Lumens
  • Spot & Flood – 9133 Lumens
• Effective Lumens
  • Spot – 6100 Lumens
  • Flood – 6000 Lumens
• Colour Temperature: 5700 Kelvin.
• Distance @ 1Lux
  • 835m/2739ft Spot
  • 620m/2034ft Flood (Single light).
• 9-? full beam width Flood & 6-? full beam width Spot.
• High-pressure cast aluminium body with oversized heat sink
• Integrated ARB engineered thermal management
• In-built digital LED driver control
• Unique ARB engineered flood reflectors
• Virtually indestructible clear-coated polycarbonate internal lens
• Hard-coated, optical grade, durable polycarbonate protective lens
• Pressure equalisation breather with pressure-tested seal
• MIL810-STDG vibration certified (military specifications)
• RoHS, R10 & CE compliant
• Dust and waterproof to IP68 & Submersible to three metres
• Over- and under-voltage protection to 30 volts
• Protected against radio frequency (RFI) and electromagnetic (EMC) interference
• Multi-position, high-pressure die-cast aluminium mounting bracket
• Four-pin, high-amperage waterproof connectors & Input Cable length – 450mm (17.7?€?)
• Engineered for use with the ARB Solis driving light wiring loom – Part no. SJBHARN sold separately
• Warranty 3 years – Global warranty
