Les feux de route longue portée ARB Intensity IQ 28 LED E-Mark sont conçus pour optimiser la visibilité des véhicules tout-terrain sur route ou en excursion offroad. Homologués pour un usage européen (ECE R10, R149, UKCA, RCM, FCC, ROHS), ils offrent une intensité lumineuse réglable et plusieurs fonctionnalités avancées, comme la veilleuse, le mode lampe de travail ou encore un contrôle via une application ou l’interface LINX ARB. Leur conception robuste résiste aux environnements extrêmes (-40°C à +80°C) tout en s’intégrant parfaitement aux 4×4 modernes grâce à leur design épuré. Ces feux délivrent une puissance de 170 W et s’adaptent à une entrée de tension de 11 à 32 V, avec une consommation de 12,9 A à 13,2 V.
Chaque feu propose quatre optiques (Super Spot, Spot, Flood et Midrange) pour des performances adaptées à toutes les situations. Ils atteignent une portée maximale de 1350 mètres en mode Spot et produisent jusqu’à 14 060 lumens en mode Max Flood. Le kit comprend deux feux à commande numérique, des supports de fixation, un faisceau de câbles, un interrupteur avec connecteurs, un module de commande et des outils de montage. Bénéficiant d’une garantie de 3 ans, ces feux sont un choix fiable pour les amateurs de tout-terrain souhaitant allier performance et polyvalence.
Caractéristiques :
– Température de fonctionnement : de -40°C à +80°C
– Température de couleur : 5700 à 6200 K
– Dimensions : 220 mm (L) x 215 mm (H) x 142 mm (P)
– Poids : 3,8 kg par feu
– Tension d’entrée : 11 à 32 V
– Puissance maximale : 170 W à 13,2 V
– Consommation : 12,9 A à 13,2 V
– Luminosité brute (par lampe) :
. Max Spot : 7070 lumens
. Max Flood : 14060 lumens
– Luminosité efficace :
. Max Spot : 6 613 lumens
. Max Combo : 6 265 lumens
. Max Flood : 6 666 lumens
– Portée d’éclairage (paire) :
. Max Spot : 1350 m
. Max Combo : 1105 m
. Max Flood : 900 m

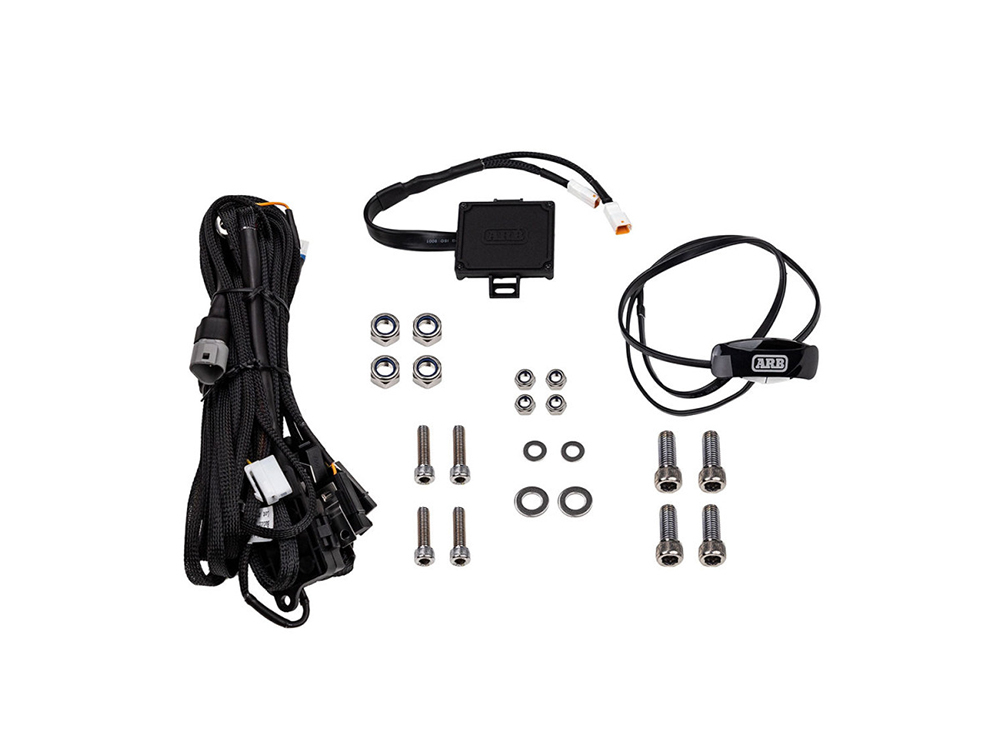

Le Kit Comprend :
– Deux feux de route à commande numérique.
– Un interrupteur avec câble et connecteur.
– Un module de commande avec connecteurs.
– Un jeu de boulons de sécurité et outils de montage.
– Deux supports et le matériel de fixation.
– Un faisceau de câbles complet.
INTENSITY IQ

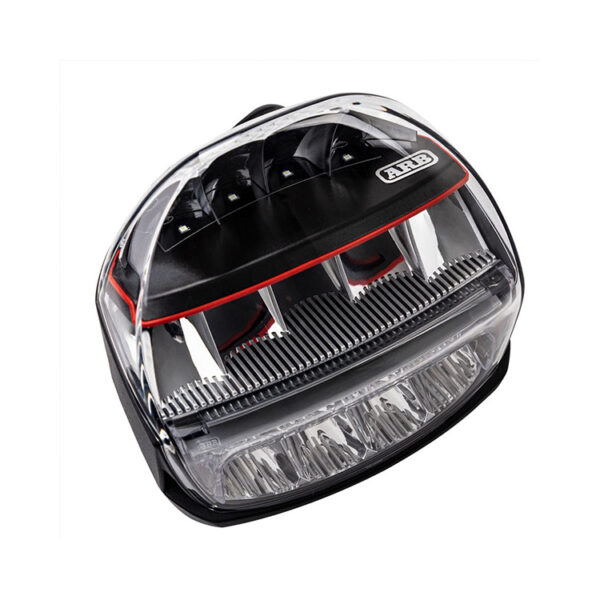

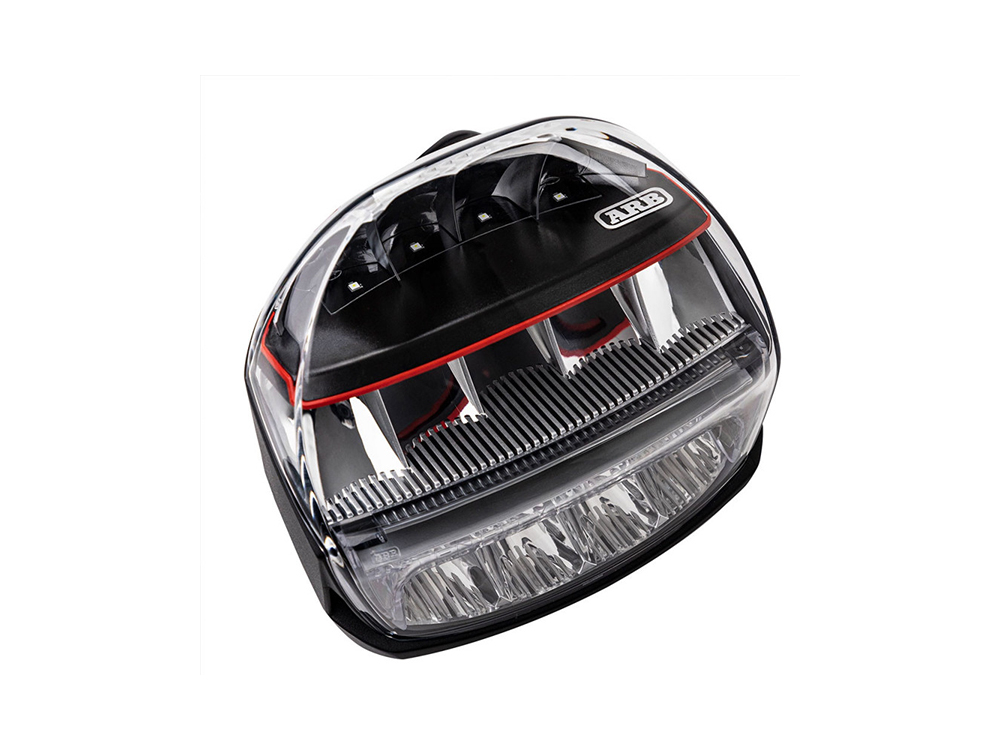

The ARB Intensity IQ has been developed from the ground up, with performance front of mind, whilst delivering a design that complements modern vehicle styling and bar work. With a subtle introduction of ARB red within the light, the free-form clear front lens, bezel-less design and CNC machined ARB logo provide a modern, classy and premium new look. Packed with unique features, the Intensity IQ sets a new level of driving light design and usability.

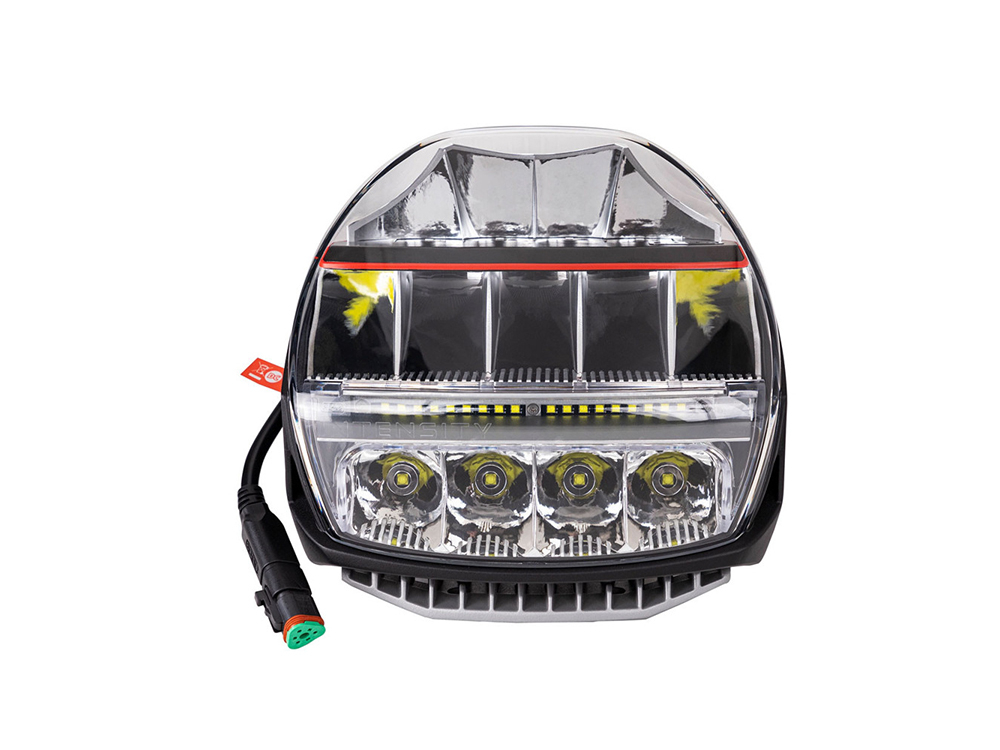

A unique 4-optic design (Super Spot, Spot, Flood and Midrange) is employed to provide virtually an unlimited choice of light beams to suit any road condition. The Super Spot and Spot optics, based on free-form reflector technology, produce an even spot beam for extended distance illumination. The Flood optic has a specially designed lens to maximise the light spread for excellent foreground visibility. The Midrange optics employ a conventional parabolic reflector to illuminate the midrange area. Furthermore, the beam pattern of each of the two lights can be independently adjusted so you could run, for example, one focused on spot and one focused on flood.
INNOVATIVE MOUNTING BRACKET

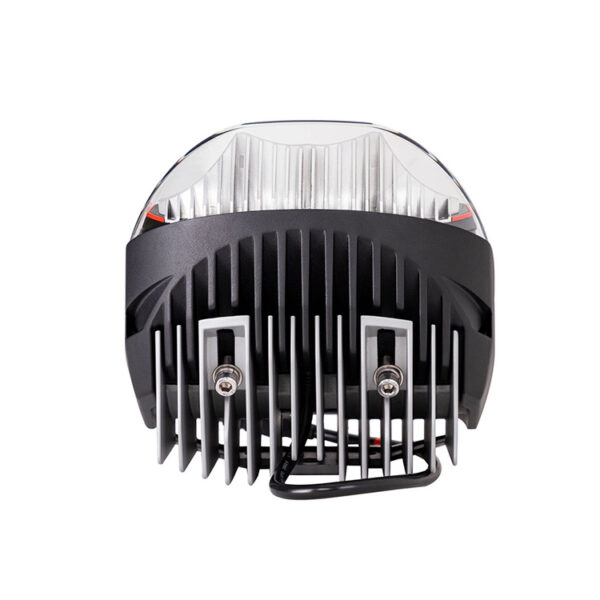

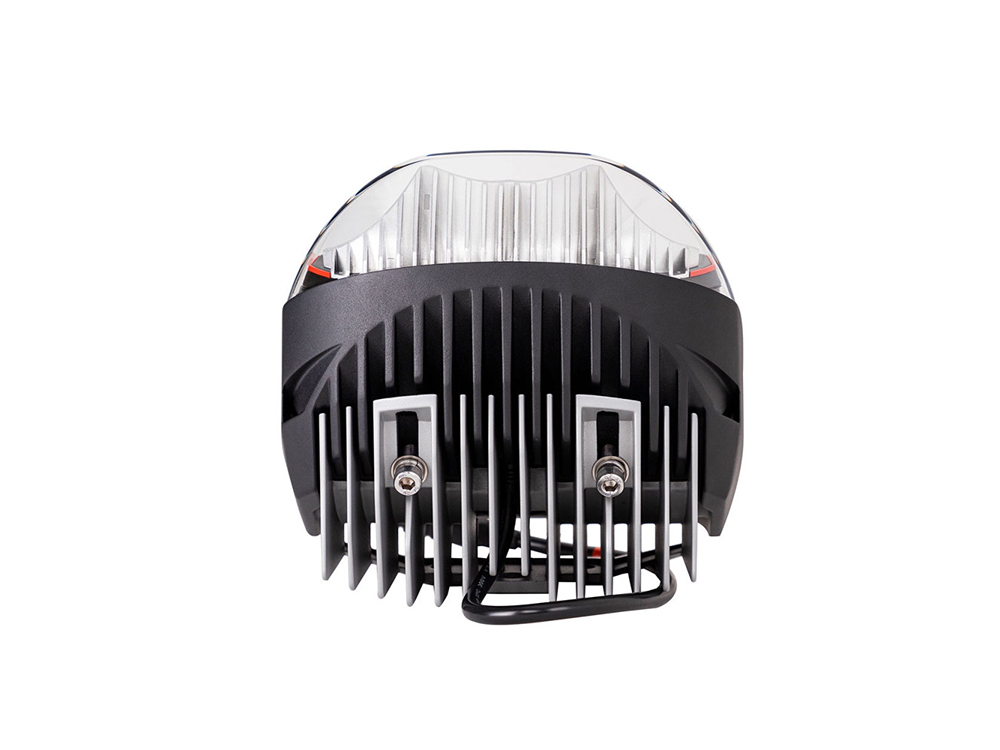

Intelligent thermal management maximises light output in all driving conditions and provides outstanding LED life expectancy. Cooling is maximised via the die cast aluminium body which acts as a massive heat sink. An innovative, sleek new mounting bracket design not only allows adjustment of light beam angle, but also provides additional mass and surface for cooling.
CUSTOMISABLE ONBOARD SWITCH
The Intensity IQ is equipped with a switch to:
- Turn on and off the driving lights
- Provide 8 selectable and customisable preset light beams
- Disable courtesy light function (delayed light off after ignition off)
- Turn on/off Euro mode (light beam complying UNECE R149)
- Activate/deactivate demo mode
- Restore factory settings
The switch is customisable via the ARB Intensity IQ app (available via the App Store for iOS and Google Play for Android), which allows users to:
- Turn on and off the driving lights
- Adjust the intensity of each row of optics on each individual light (or both at once) to create your ideal beam pattern
- Setup the fade in/out feature
- Turn on/off courtesy feature and adjust timer
- Activate the work light function (lights on without high beam on)
- Select a light network to connect to (for example if you have 2 different vehicles, each with IQ lights)
- Save or undo the change
- Turn on and off the Euro mode
- Set the onboard switch response time
- Restore factory settings
FEATURES:
- Iconic ARB Branded
- Adjustable Light Intensity
- Adjustable Optic Sections
- Work Light Function
- Courtesy Light Function
- Light Fade In/Out
- On-board Controller
- APP Control
- ARB LINX Support
- Wiring Loom Included
