COMBAR SUIT JIMNY MY19



? Vehicle specific design for the Suzuki Jimny MY19.
? Durable steel construction for maximum protection.
? Incorporates ARB’s renowned multi fold upswept and tapered wing design for optimum strength and approach angle.
? 10mm radius on wings and centre section. 47.6mm outer and centre cross tube.
? Engineered, air bag compatible mounting system secures to the chassis via high tensile M10 fasteners.
? 3 piece grill for split pan.
? Split pan design for maximum strength and airflow.
? Centre protection panel.
? Pressed form top pan and aluminium (powder coated black) winch cover panel.
? Twin ARB Jack or Hi-Lift jack points adjacent to the bar uprights.
? Includes ARB LED Indicator and Clearance light.
? Will accommodate Warn and mid frame winches up to 8,000lb.

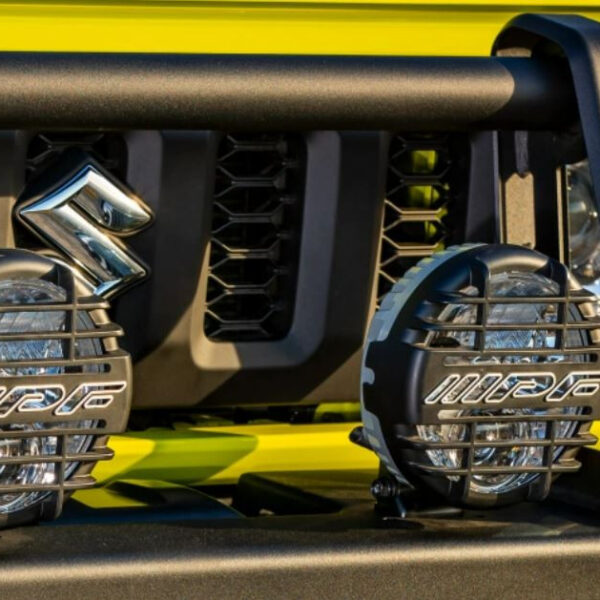

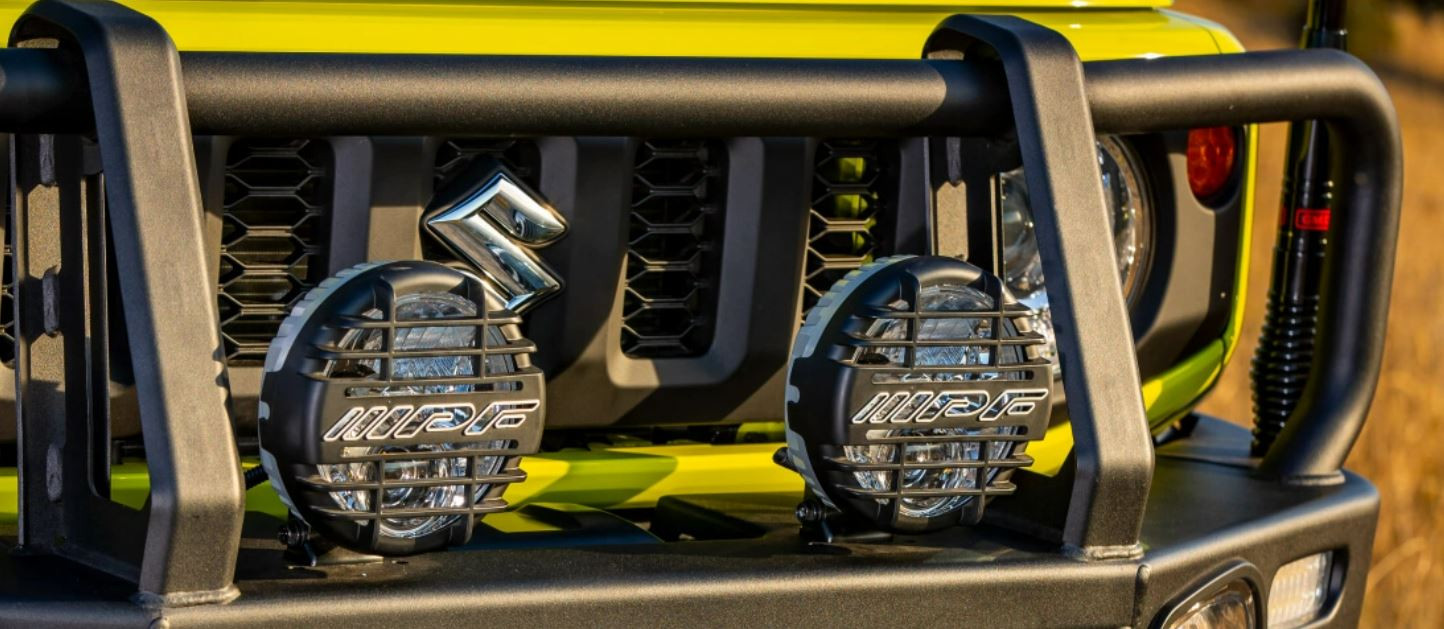

? Provision to accommodate ARB Intensity LED’s and a range of Bushranger lights.
? Provision for OE headlight washers.
? Provision for OE foglights.
? Provision for optional ARB Fog light covers part no 3500680.
? Approach angle increased from 35-? to 37-?.
? Bar adds approximately 120mm to the overall length of the vehicle.
? Approximate weight of the bar, chassis mounts and fitting kit is 45kg. Approximately 8kg is removed from the vehicle for fitment.
? Finished in Integrit textured black powder coat. Integrit not suitable for colour coding.
