SAHARA TUBE KIT BLK 20IN LED INCL 5100280

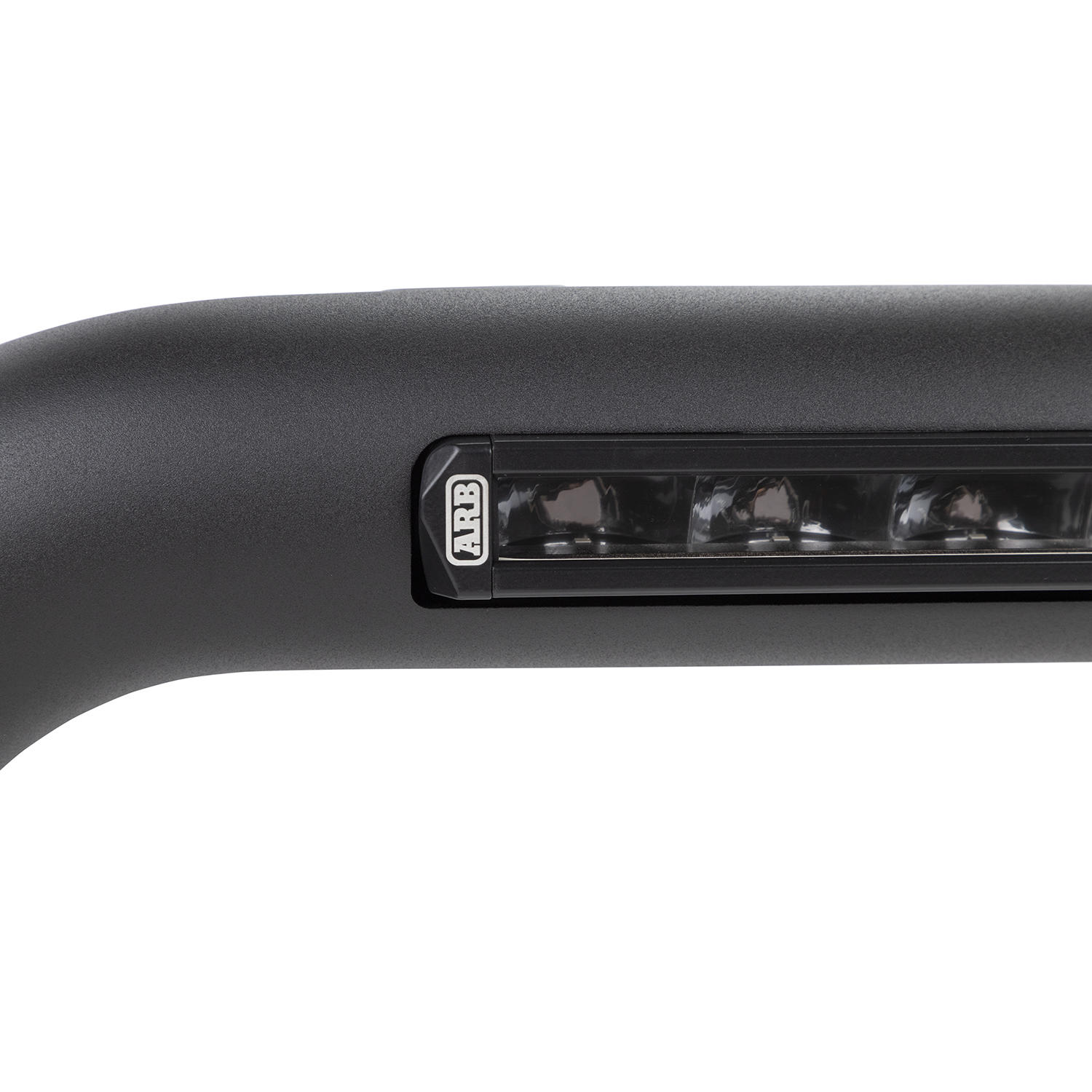

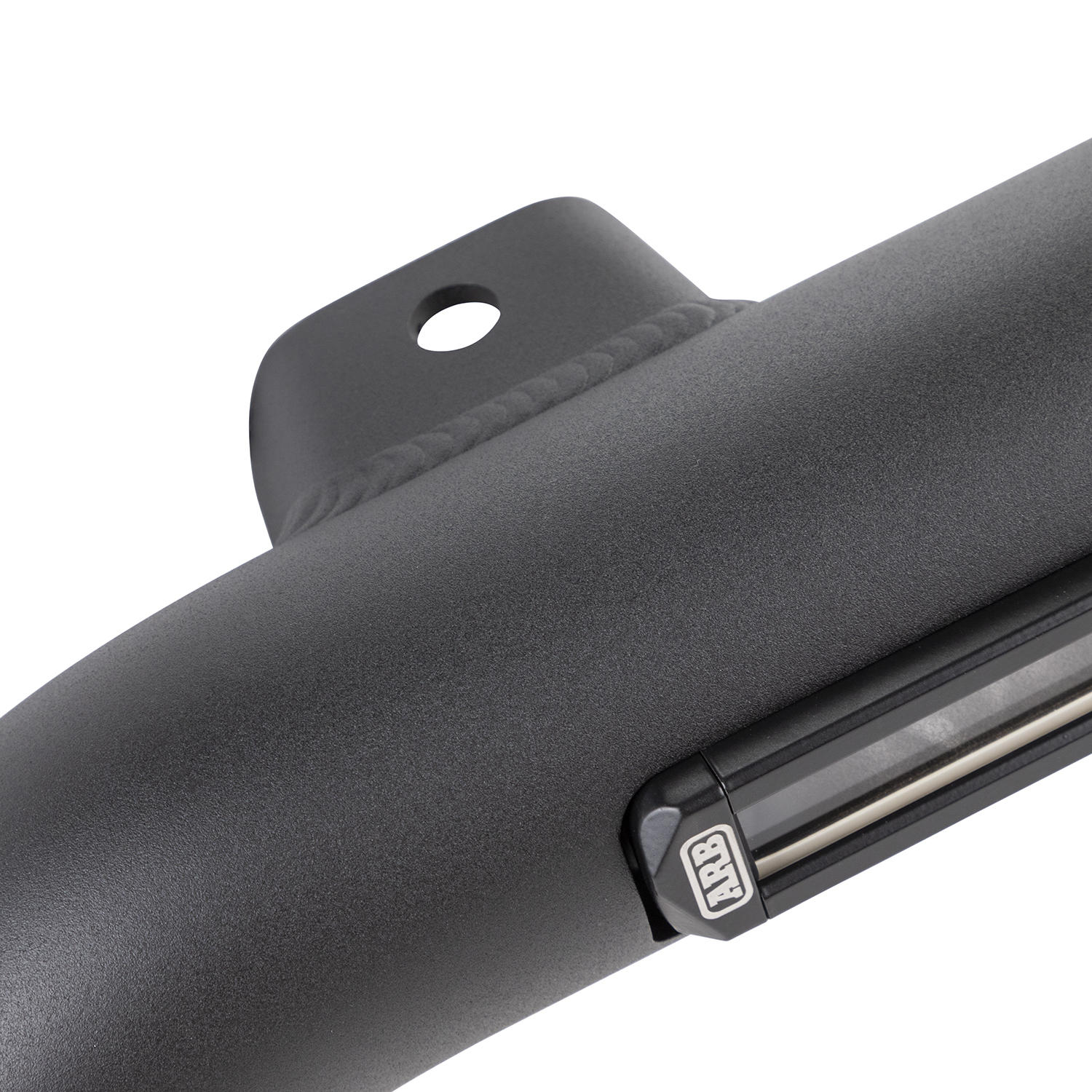

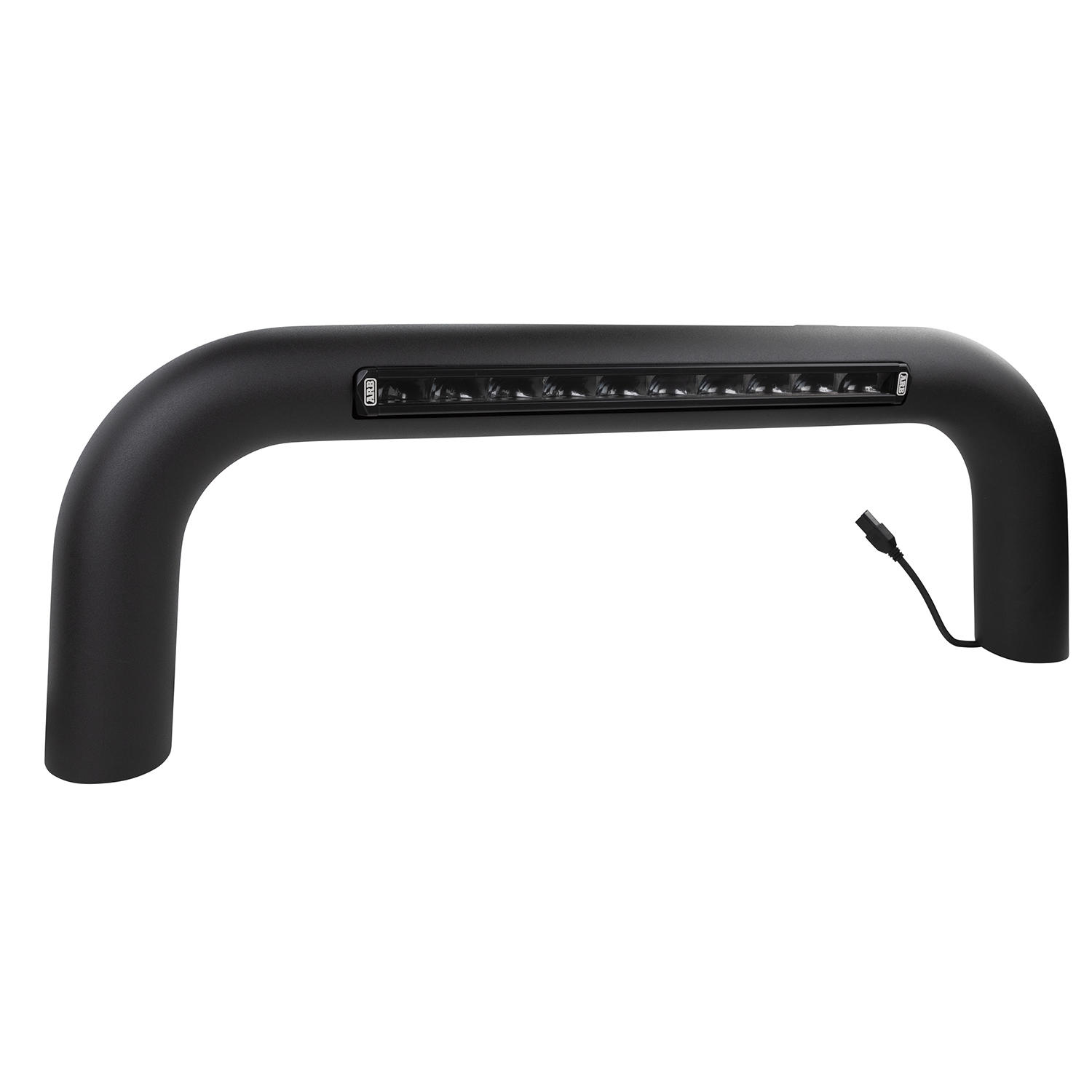

Summit Sahara Tube with LED Light Bar

Key Features

? Unique reflector design to provide good distance and width for highway driving
? Virtually indestructible hardened polycarbonate lens
? Extruded aluminium body finished in black powder coat
? Comes pre-assembled in Sahara Tube kit. Vertical adjustment provided through rear of Sahara tube
? Sahara Tube features additional openings to allow air flow over and around the LED light bar
? Over and under voltage protection
? Reverse polarity protection
? Breather with pressure-tested seal
? Vibration and UV tested
? Thermal management
? Dust and waterproof to IP68
? Protected against radio frequency (RFI) and electromagnetic (EMC) interference
? Sahara tube finished in Integrit?„? textured black powder coat

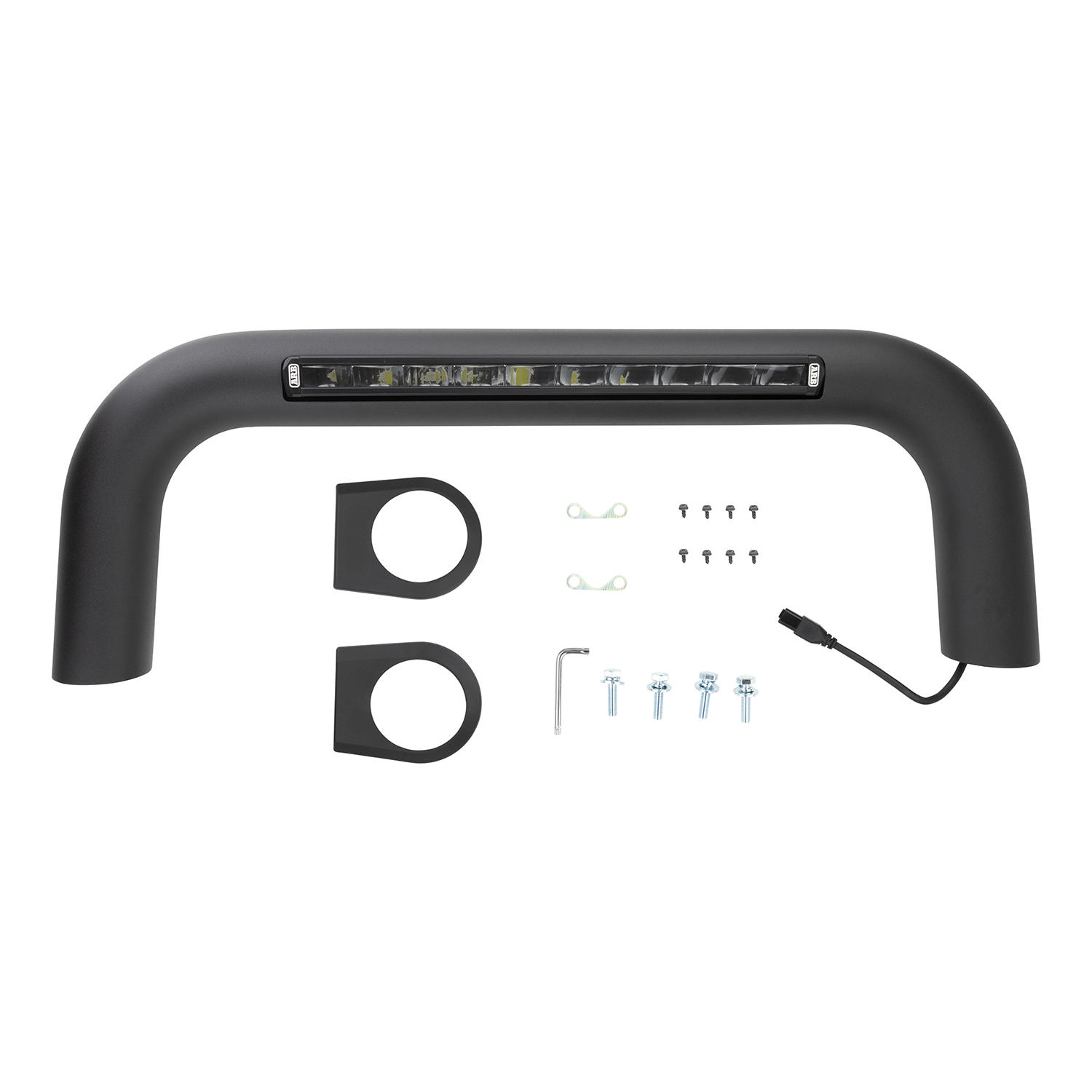

? Kit includes LED light bar, Sahara Tube kit and top buffer section
? Requires ARB wiring loom 3500810 for fitment

Technical Specifications

? Input 12V to 48V
? Power 55 W
? 10 x OSRAM 6.5W LED’s
? Current draw 4.0A @ 14.2V
? Output – RAW 4081 lumens – Effective 3866 lumens
? 1 Lux at 445m
? Spread Horizontal 8-? & Vertical 6-?
? Input Cable Length 550mm
? Total Measurement 494.4 x 35 x 67mm. Weight of LED Light bar 1.25kg
? Operating Temperature -40-?C to +85-?C (-40-?F to +185-?F)
? Colour Temperature 5500-6500KRuntime life 50,000hrs
? Connector 2 pin DT – Over moulded waterproof plug
? Certifications R10, R12, CE and ROHS
? Warranty 3 years
? Suitable for use with ARB driving light loom 3500810
